Description
Features:

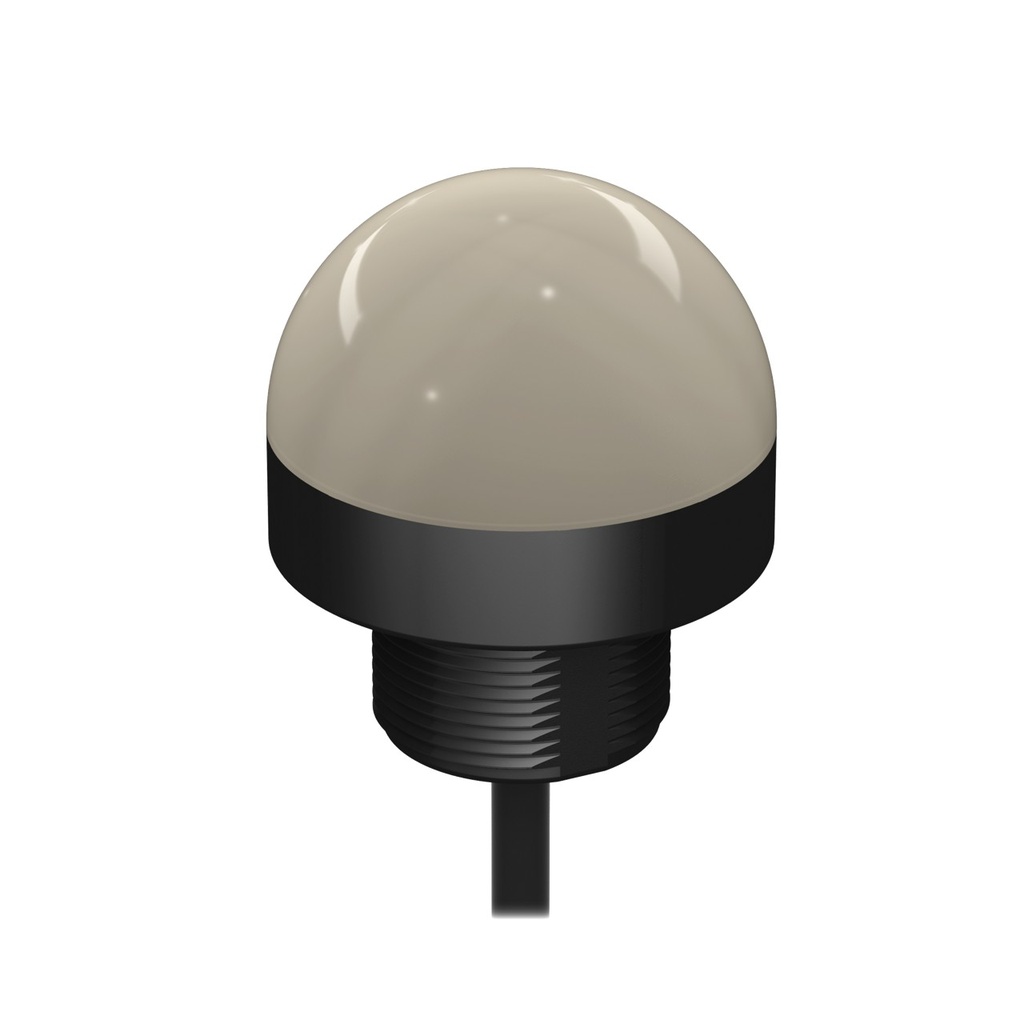

- K50 Series EZ-LIGHT: 4-Color Multi-Function Indicator Light
- Voltage: 18-30V dc
- Housing: Polycarbonate
- IP67
- Input: PNP
- Colors: Green, Red, Yellow, Blue
- 2 m (6.5 ft) cable
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 50 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP67/69
- Housing Style: Base Mount - Dome Window
- Housing Material_: Polycarbonate
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 50.0 x 58.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Yellow
- Supply Voltage: 18-30 VDC
- Color Option 2: Red
- Feature: Quick Disconnect: No
- Animation Option 3: Multiple
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Green
- Animation Option 2: Multiple
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Multiple
- Number of Colors / Segments: 4
- Product Size (mm): 50 mm
- Number of Input Pins/Conductors: 5
- Input Type: PNP
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 250 ms
- Feature: Chemical Resistant: No
- Color Option 4: Blue
- Wire Selectable Function: Multi-Function
- Animation Option 4: Multiple
- Connection Type: Cable
- Cord/Cable Length: 2 m
