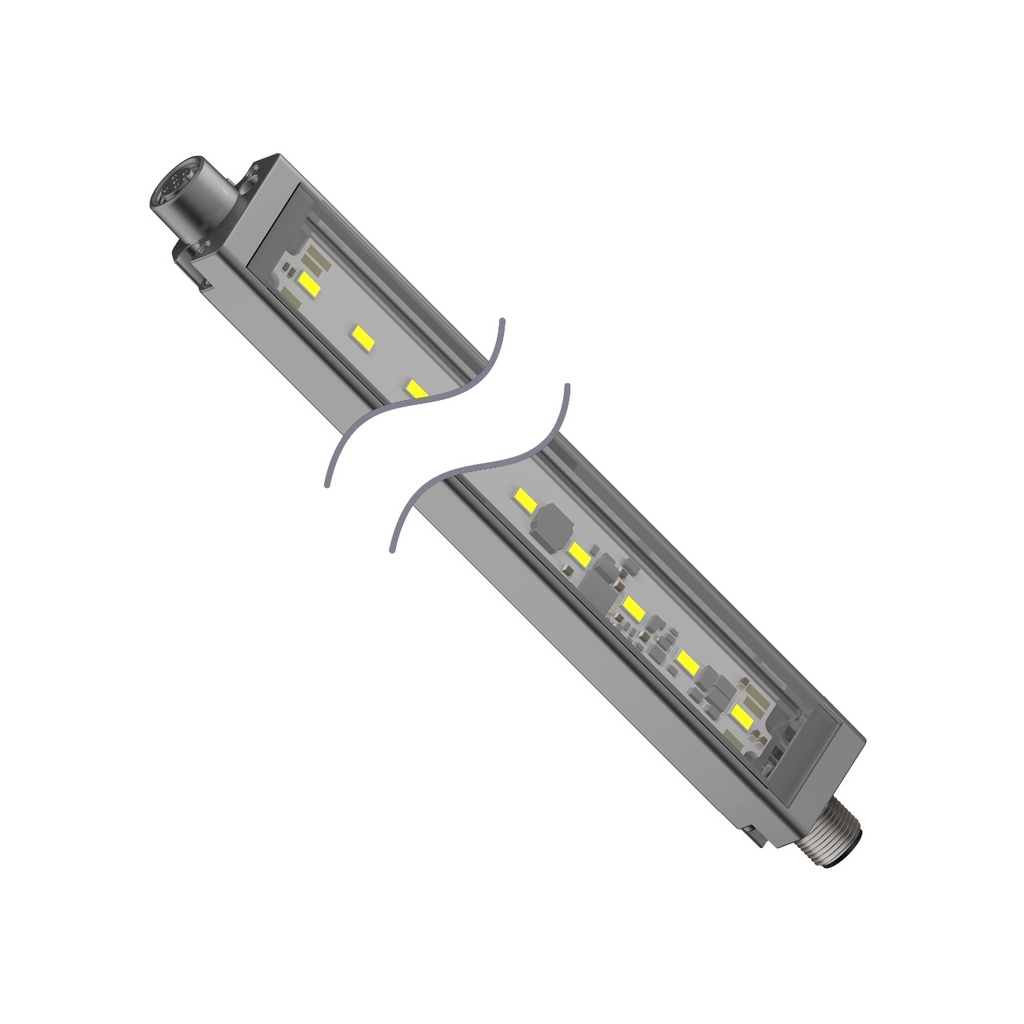

Wls28-2 3 Color Light Strip (WLS28-2CWGRXX6-0570DS24Q)
Features:
- WLS28-2 3 Color Light Strip; I/O Block Control; Length: 570 mm; Voltage: 24 V dc; Environmental Rating: IP67/IP69K; Colors: White Green Red; Diffuse Window; Cascadable; Euro 4-pin Integral Connector
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 0.8 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP65/67/69K
- Housing Style: Linear Strip
- Housing Material_: Aluminum
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 616.0 x 28.0 x 20.9 mm
- Feature: Wireless: No
- Color Option 3: Red
- Supply Voltage: 24 VDC
- Color Option 2: Green
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 1300
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Daylight White
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
- Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 800
- Lumens Color 3: 370
- Product Size (mm): 28 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 525 nm
- Number of Input Pins/Conductors: 4
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Feature: I/O Block Compatible: Yes
- Feature: Cascade: Yes
- Illuminated Length (LxWxH): 570.0 mm
- Feature: Illumination: Yes
- Connection Type: Integral QD
