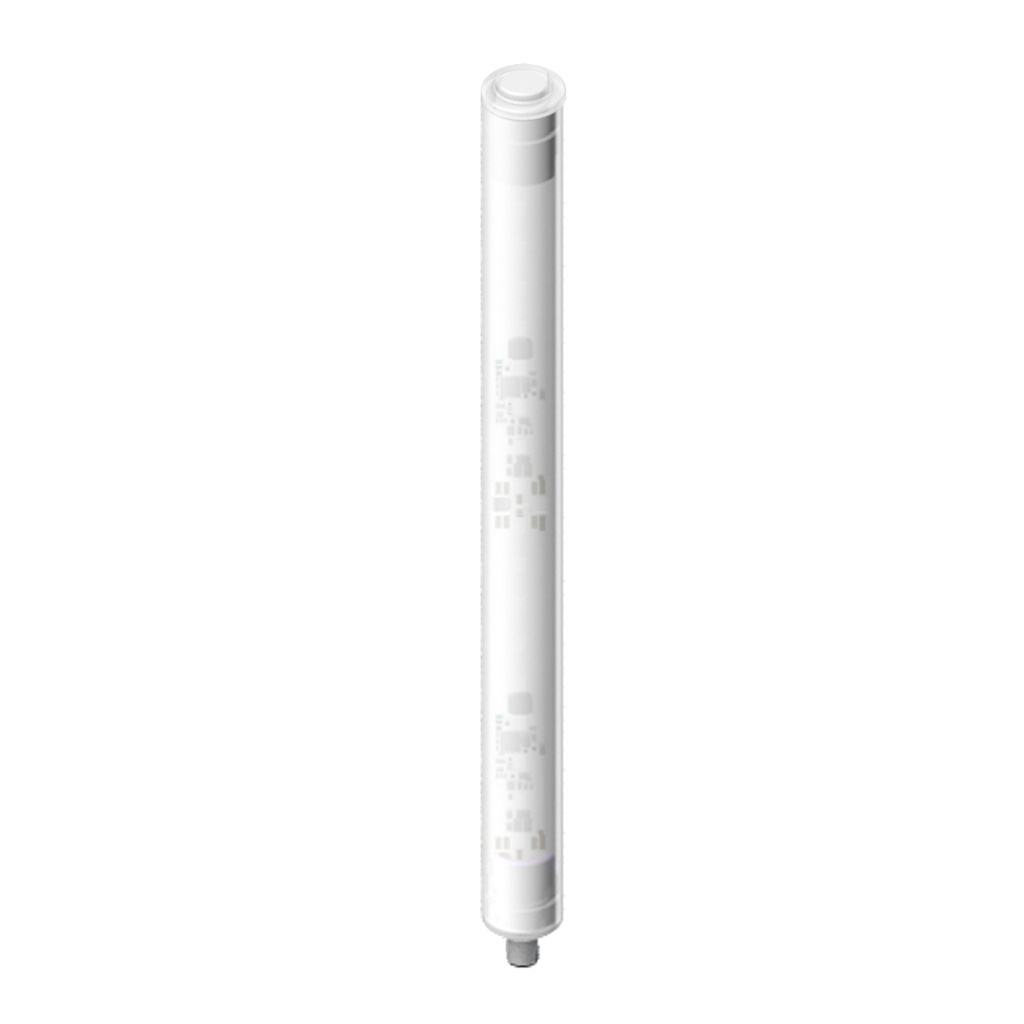

Representative photo. Please check item description for details.
Wls27 Multicolor Light Strip (WLS27XWORXX3-0285DS24Q)
Features:
- WLS27 Multicolor Light Strip; Length: 285 mm;; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Orange, Red; Non-Cascadable; Euro 4-pin Integral Connector
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 400 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP66/67/69K
- Housing Style: Linear Strip
- Housing Material_: FDA Copolyester
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 27.0 x 351.5 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 24 VDC
- Color Option 2: Orange
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 650
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Daylight White
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 3: 185
- Product Size (mm): 27 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 620 nm
- Number of Input Pins/Conductors: 4
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: Yes
- Storage Temp: -40 to 70 °C
- Illuminated Length (LxWxH): 285.0 mm
- Feature: Illumination: Yes
- Connection Type: Integral QD
- Cord/Cable Length: 150 mm
