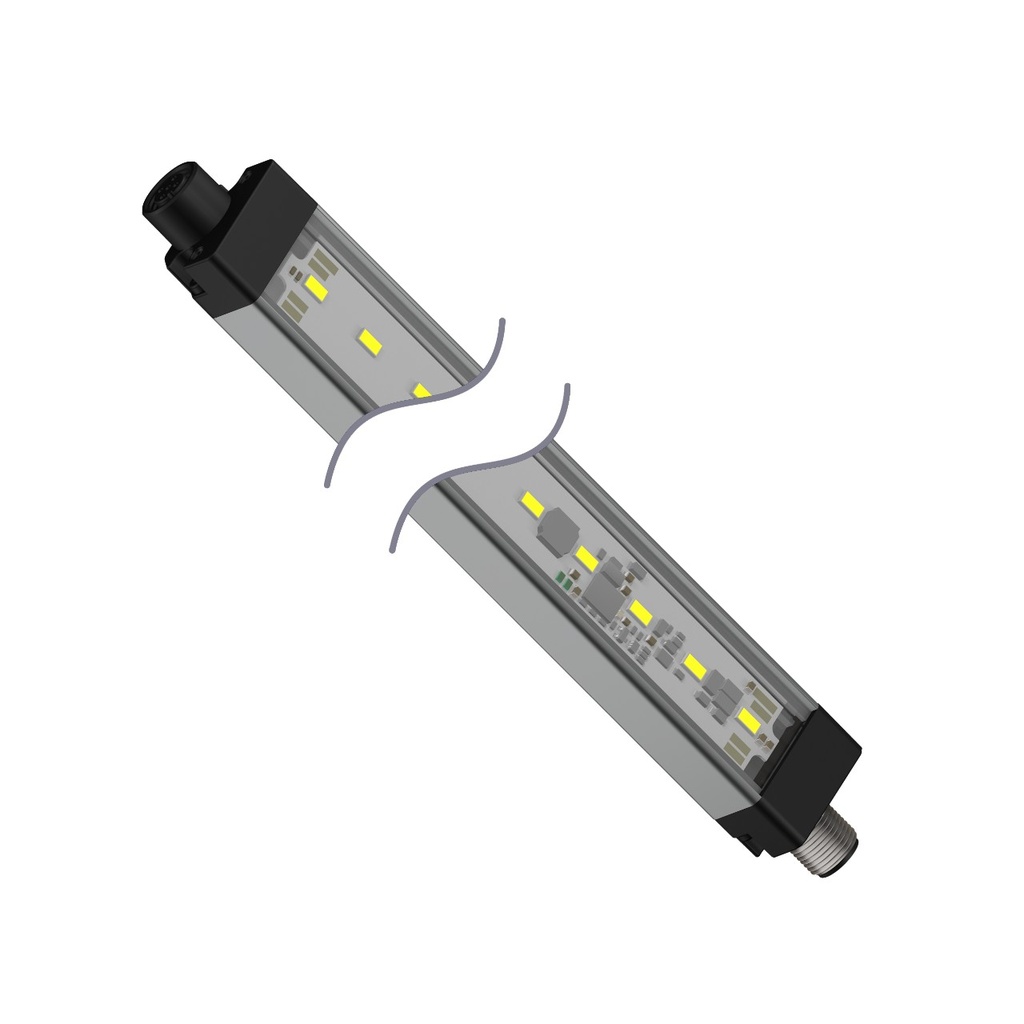

Wls28-2 Multicolor Light Strip (WLS28-2CWGRYB5-1130DX24Q)
Features:
- WLS28-2 Multicolor Light Strip; Length: 1130 mm;; Voltage: 24 V dc; Environmental Rating: IP50; Colors: White, Green, Red, Yellow, Blue; Cascadable; Euro 4-pin Integral Connector: Diffuse Window
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 1600 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP50
- Housing Style: Linear Strip
- Housing Material_: Aluminum
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 1181.0 x 28.0 x 21.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 24 VDC
- Color Option 2: Green
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 2600
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Daylight White
- Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
- Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 5
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 1600
- Lumens Color 3: 740
- Product Size (mm): 28 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 525 nm
- Number of Input Pins/Conductors: 4
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Color Option 4: Yellow
- Color 4 - Wavelength/Color Temp/Coordinates: 580 nm
- Color Option 5: Blue
- Color 5 - Wavelength/Color Temp/Coordinates: 470 nm
- Lumens Color 5: 500
- Lumens Color 4: 2280
- Feature: Cascade: Yes
- Illuminated Length (LxWxH): 1130.0 mm
- Feature: Illumination: Yes
- Connection Type: Integral QD
- Cord/Cable Length: 2 m
