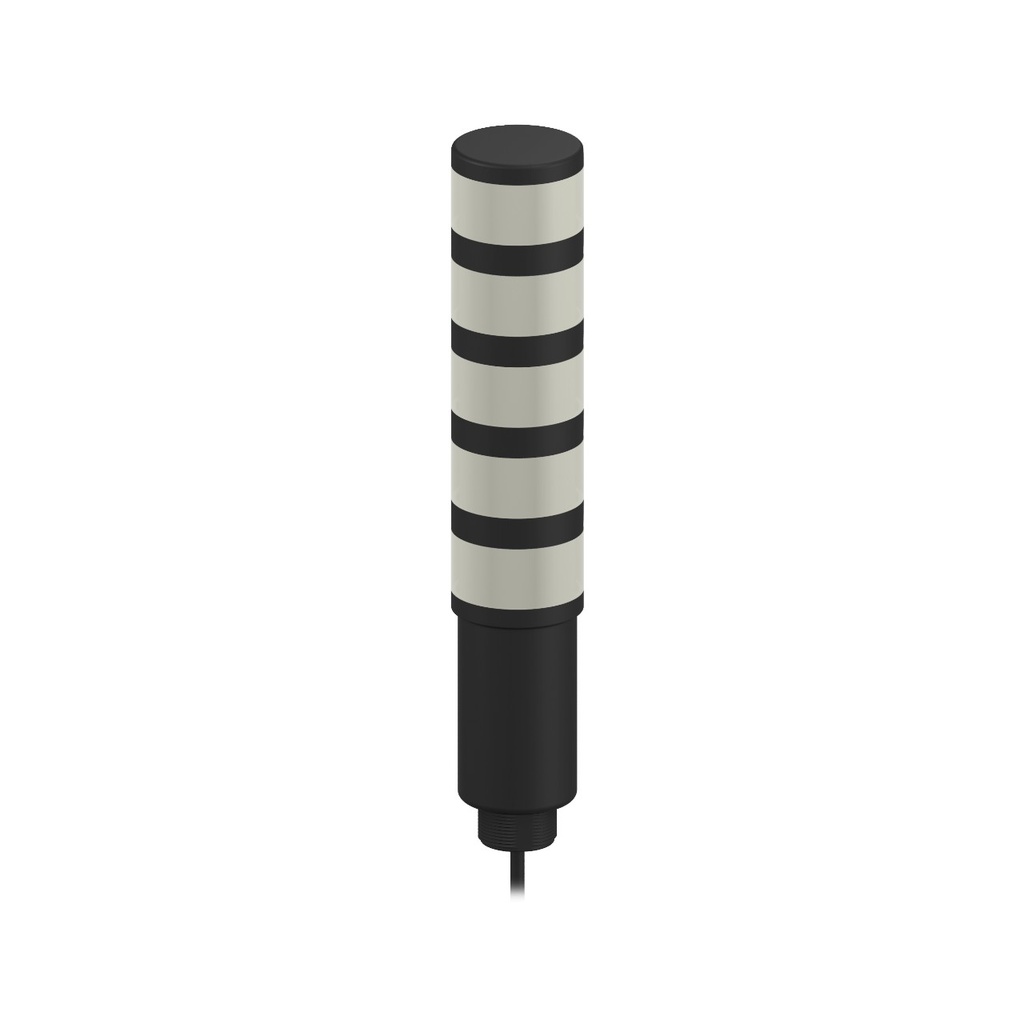

Representative photo. Please check item description for details.

Tower Light: 5-Color Indicator (TL50ZMOBYG)

(0 review)

Features:

Power: AC
Feature: Display: No
Feature: Display Lighting: No
Max Current Color: 35 mA
Min Operating Temperature: -40 °C
Max Operating Temperature: 50 °C
Power Source: VAC
Ingress Protection: IP67
Housing Style: Base Mount - Tower
Max Relative Humidity: 95% @ 50 °C (NC)
Housing Material_: ABS
Feature: Hazardous Area: No
Feature: IO Link: No
Feature: Modbus RTU: No
Physical Dimensions: 50.0 x 311.5 mm
Feature: Wireless: No
Feature: Indication: Yes
Color Option 3: Blue
Supply Voltage: 100-240 VAC
Color Option 2: Orange
Feature: Quick Disconnect: No
Lumens Color 1: 3
Animation Option 3: Solid On
Color Technology: Standard LED
Feature: Audible: No
Color Option 1: Magenta
Animation Option 2: Solid On
Color 1 - Wavelength/Color Temp/Coordinates: 0.35; 0.15
Housing Color: Black
Color Input Control: Individual (One wire/color, same number of colors as input wires)
Multi-Color Device: Simultaneous Colors On
Animation Option 1: Solid On
Number of Colors / Segments: 5
Color 3 - Wavelength/Color Temp/Coordinates: 470 nm
Lumens Color 2: 15.5
Lumens Color 3: 4
Product Size (mm): 50 mm
Color 2 - Wavelength/Color Temp/Coordinates: 608 nm
Number of Input Pins/Conductors: 6
Input Type: AC
Max Op. Relative NC Humidity: 95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete): No
Mounting Thread: M30 x 1.5
Max Input Response Time (ms): 500 ms
Feature: Chemical Resistant: No
Storage Temp: -40 to 70 °C
Color Option 4: Yellow
Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
Color Option 5: Green
Color 5 - Wavelength/Color Temp/Coordinates: 528 nm
Lumens Color 5: 23
Lumens Color 4: 5
Number of Tower Light Segments: 5
Animation Option 5: Solid On
Animation Option 4: Solid On
Connection Type: Cable
NEMA / UL: NEMA/UL 13
Cord/Cable Length: 2 m

$ 395.00 395.0 USD $ 395.00

$ 395.00

This combination does not exist.

Add to cart Buy now
