K50Mld Modbus Series: 3-Color Daylight Visible (K50MLDGRYQ-809766)

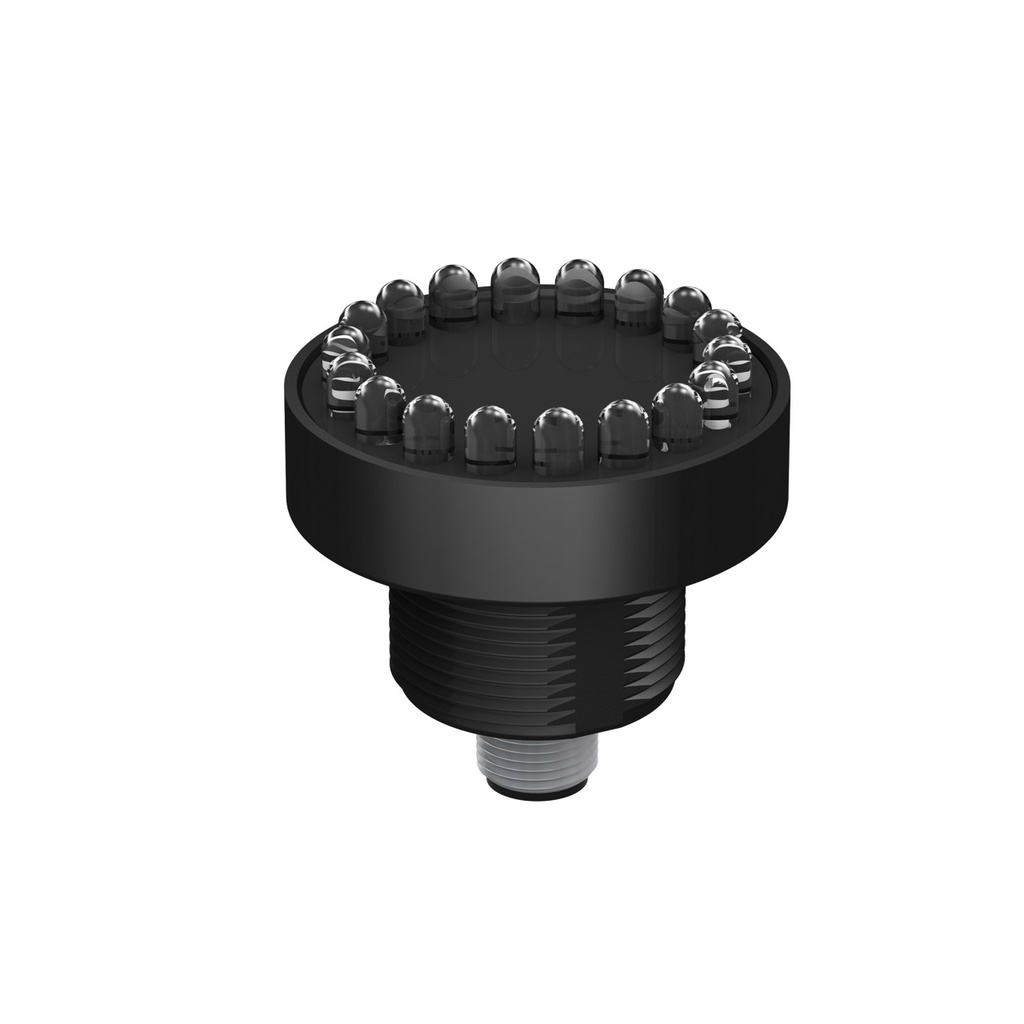

Representative photo. Please check item description for details.

K50Mld Modbus Series: 3-Color Daylight Visible (K50MLDGRYQ-809766)

https://www.branom.com/web/image/product.template/203637/image_1920?unique=7c19ea4
(0 review)

Features:

    K50MLD Modbus Series: 3-Color Daylight Visible; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Colors: Green Red Yellow; Euro 4-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 110 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Base Mount - Dome Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: Yes
  • Physical Dimensions: 50.0 x 33.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Color Option 3: Yellow
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Product Size (mm): 50 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Feature: Chemical Resistant: No
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection Type: Integral QD
  • Cord/Cable Length: 2 m

$ 238.00 238.0 USD $ 238.00

$ 238.00

Not Available For Sale
