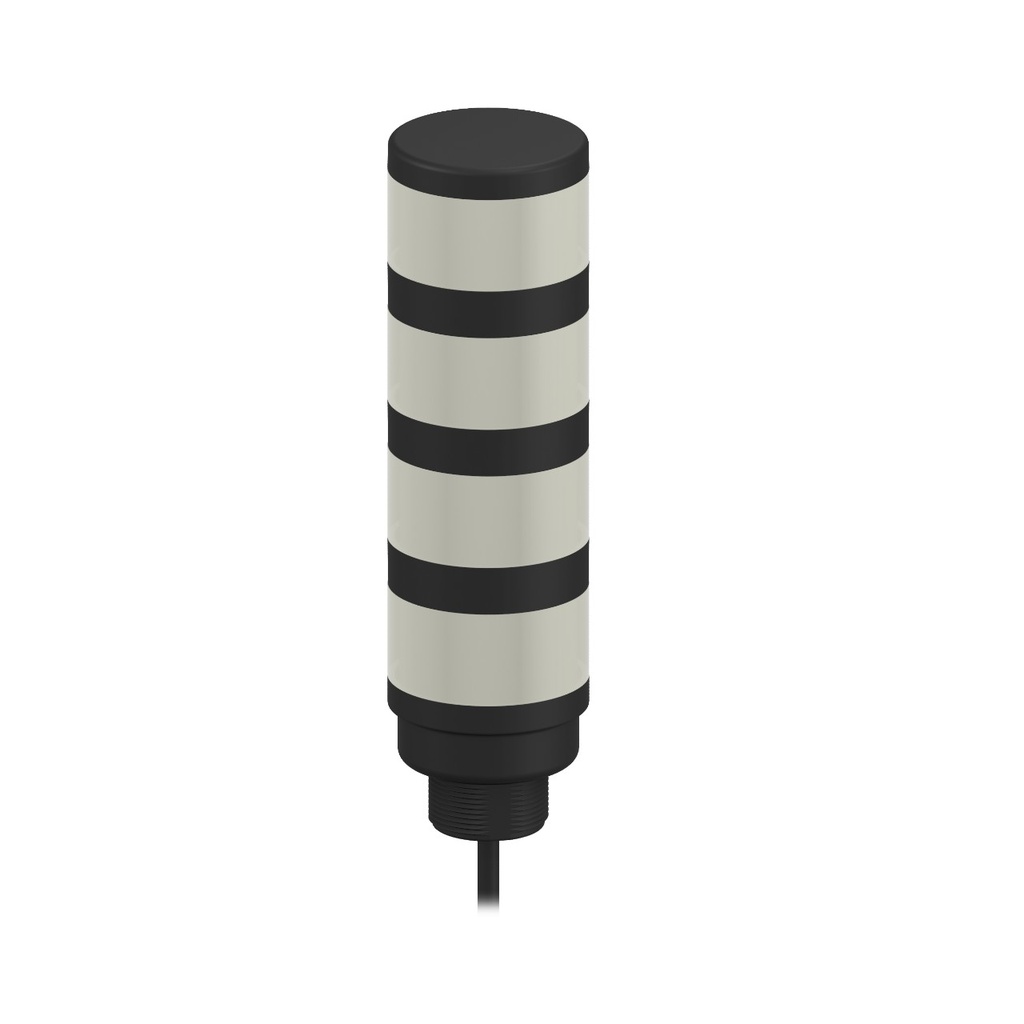

Tl50 Tower Light: 4-Color Indicator (TL50WBYRQP-810110)
Features:
- TL50 Tower Light: 4-Color Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: White Blue Yellow Red; 2x 150 mm (6 in); 200mm (8in) PUR Pigtails
- Power: AC or DC
- Feature: Display: No
- Max Current Color: 45 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Indication: Yes
- Color Option 3: Yellow
- Supply Voltage: 18-30 VDC/24 VAC
- Color Option 2: Blue
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 21
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Cool White
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 6000K
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 590 nm
- Lumens Color 2: 4
- Lumens Color 3: 5
- Color 2 - Wavelength/Color Temp/Coordinates: 470 nm
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Storage Temp: -40 to 70 °C
- Color Option 4: Red
- Color 4 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 4: 7.5
- Number of Tower Light Segments: 4
- Animation Option 4: Solid On
- Connection Type: Pigtail PUR QD
- NEMA / UL: NEMA/UL 13
- Cord/Cable Length: 0.15 m
