Description
Features:

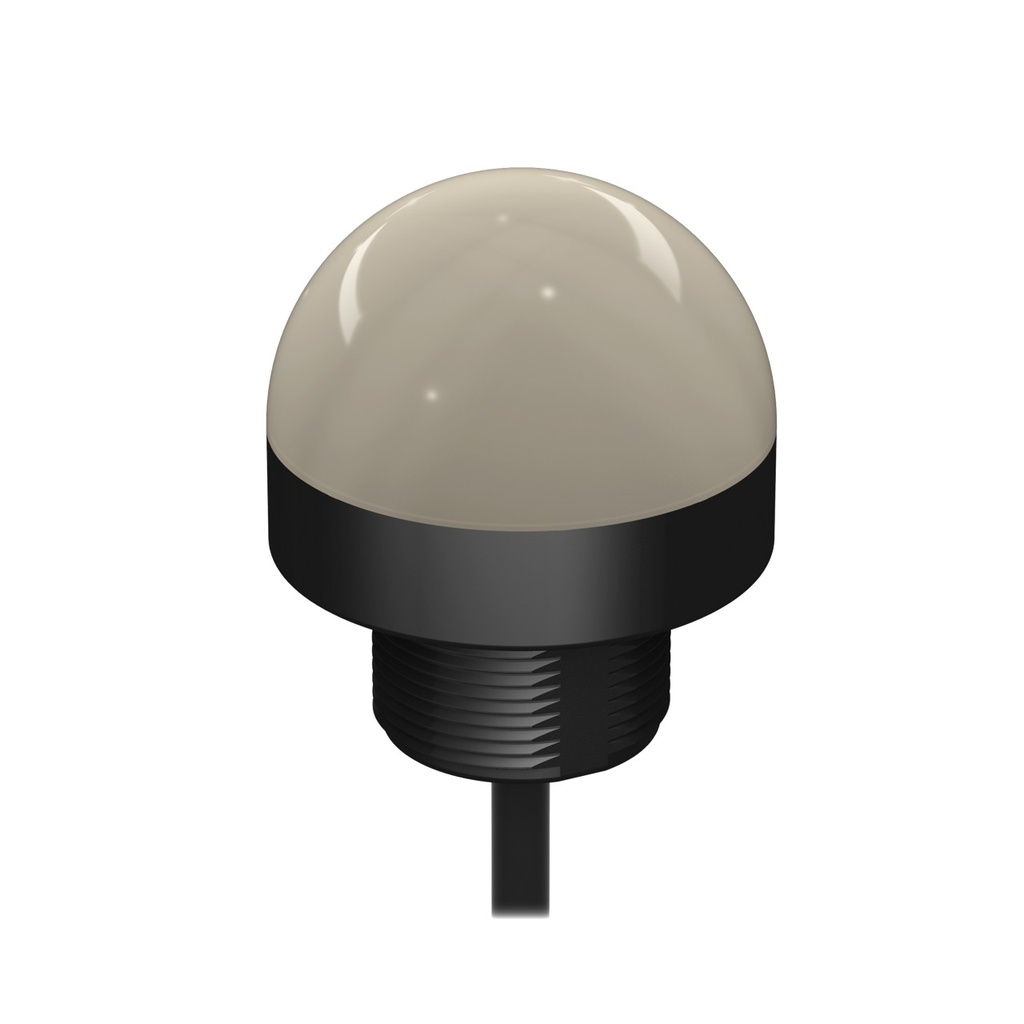

- K50 Series EZ-LIGHT: 5-Color General Purpose Indic
- Voltage: 18-30V dc
- Housing: Polycarbonate
- IP67
- Input: PNP
- Colors: Green Red Yellow Blue Whit
- 150 mm (6 in) PVC Pigtail
- Power: DC
- Feature: Display: No
- Max Current Color: 50 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Dome Window
- Housing Material_: Polycarbonate
- Feature: Indication: Yes
- Color Option 3: Yellow
- Supply Voltage: 18-30 VDC
- Color Option 2: Red
- Feature: Quick Disconnect: Yes
- Animation Option 3: Multiple
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Green
- Animation Option 2: Multiple
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Multiple
- Quick Disconnect Type: M12
- Number of Colors / Segments: 5
- Number of Input Pins/Conductors: 8
- Input Type: PNP
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 250 ms
- Color Option 4: Blue
- Color Option 5: White
- Wire Selectable Function: Multi-Function
- Animation Option 5: Multiple
- Animation Option 4: Multiple
- Connection Type: Pigtail QD
- Cord/Cable Length: 0.15 m
