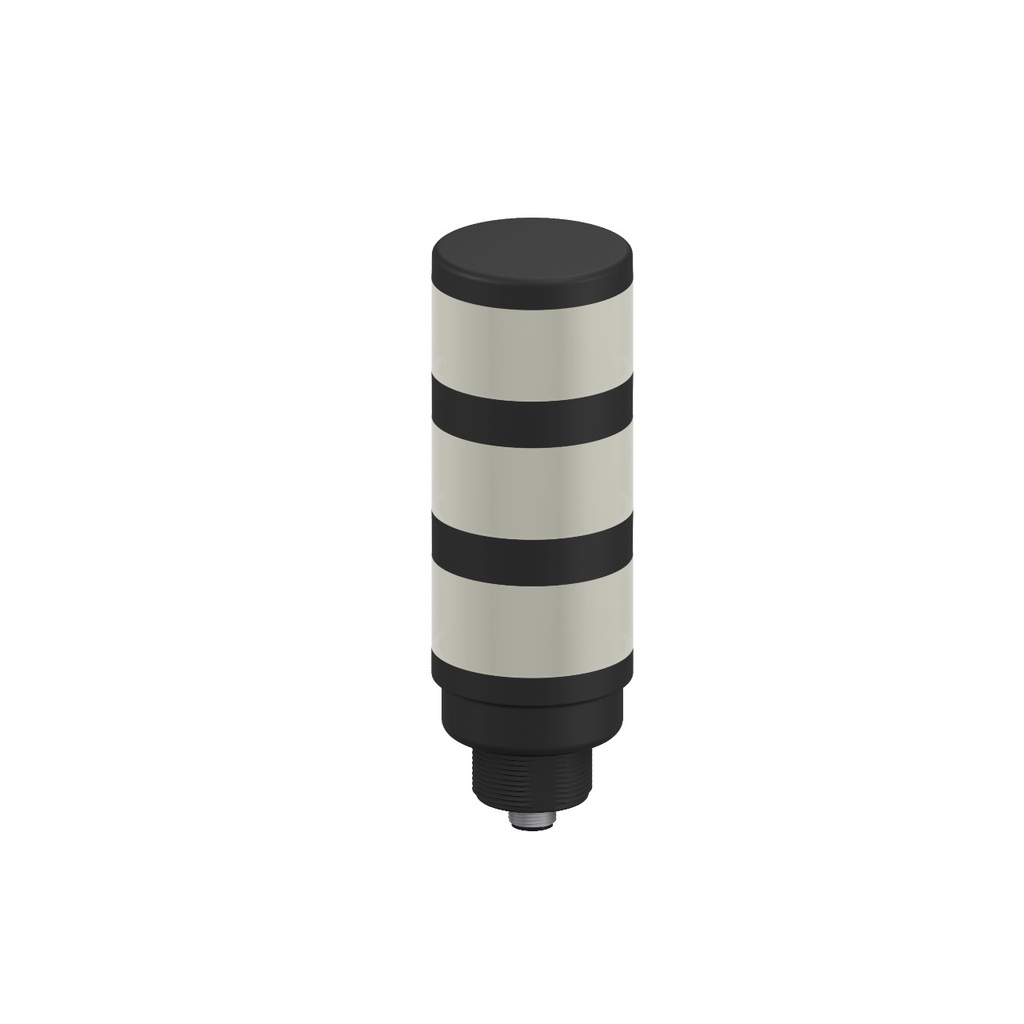

Tower Light Io-Link Series: 3-Color Indicator (TL50WGYKQ)
Representative photo. Please check item description for details.

Tower Light Io-Link Series: 3-Color Indicator (TL50WGYKQ)

https://www.branom.com/web/image/product.template/205097/image_1920?unique=7548f7f
(0 review)

Features:

    Tower Light IO-Link Series: 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Colors: White Green Yellow; Euro 4-pin Quick-Disconnect
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 70 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: IO Link: Yes
  • Feature: Indication: Yes
  • Color Option 3: Yellow
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Green
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 36
  • Animation Option 3: Programmable
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Cool White
  • Animation Option 2: Programmable
  • Color 1 - Wavelength/Color Temp/Coordinates: 6000K
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Programmable
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 590 nm
  • Lumens Color 2: 31
  • Lumens Color 3: 32
  • Color 2 - Wavelength/Color Temp/Coordinates: 528 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 10 ms
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 3
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 13

$ 317.00 317.0 USD $ 317.00

$ 317.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
