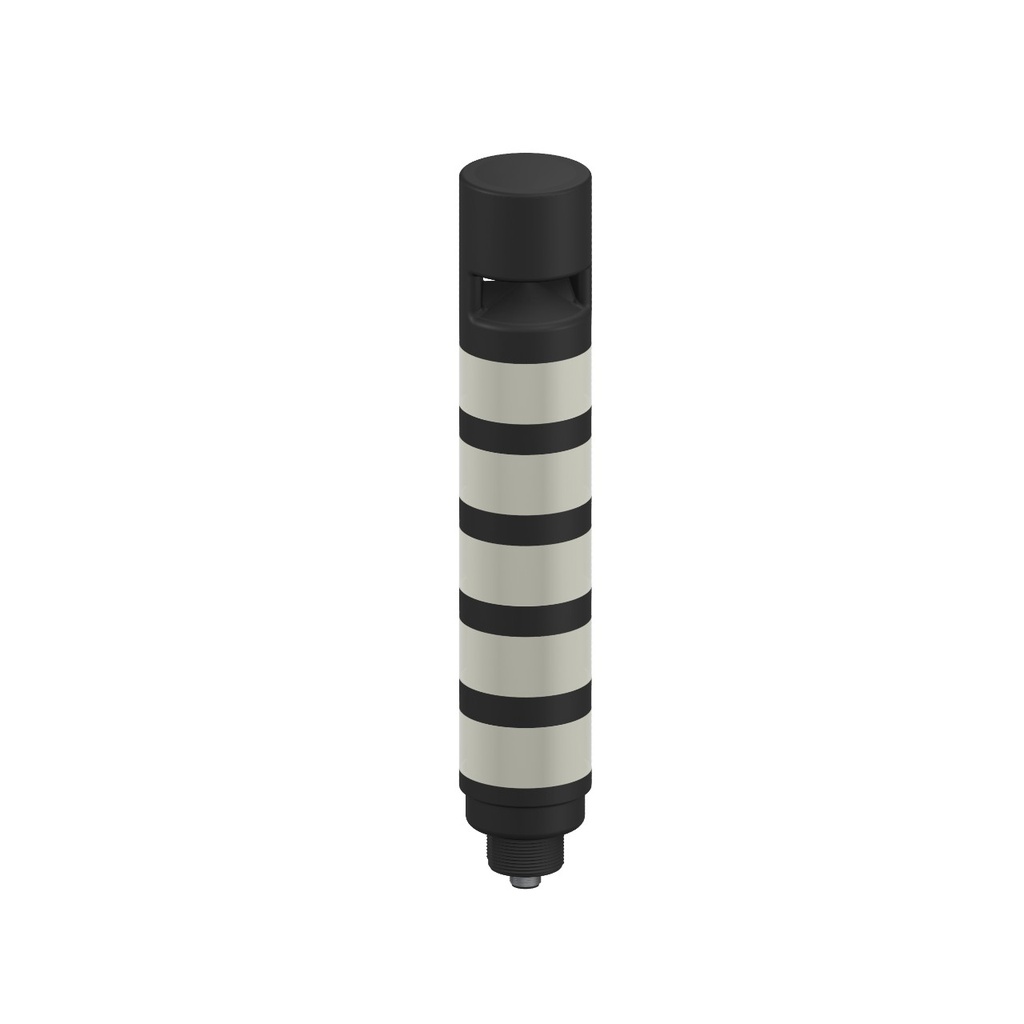

Tower Light Io-Link Series: 5-Color Omni-Directional Audible Indicator (TL50WGBYRAOSKQ)
Features:
- Tower Light IO-Link Series: 5-Color Omni-Directional Audible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP50; Colors: White Blue Green Yellow Red; Euro 4-pin Integral Connector
- Power: DC
- Feature: Display: No
- Max Current Color: 70 mA
- Max Current - Audible Alarm (mA): 70 mA
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: IO Link: Yes
- Feature: Indication: Yes
- Color Option 3: Blue
- Max Audible Intensity: 95 dB @ 1 m
- Supply Voltage: 12-30 VDC
- Color Option 2: Green
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 36
- Animation Option 3: Programmable
- Min Audible Intensity @ 1m: 83 dB
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Cool White
- Animation Option 2: Programmable
- Color 1 - Wavelength/Color Temp/Coordinates: 6000K
- Housing Color: Black
- Color Input Control: Communication Protocol
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Programmable
- Quick Disconnect Type: M12
- Audible Operating Frequency (kHz): 2.1
- Number of Colors / Segments: 5
- Color 3 - Wavelength/Color Temp/Coordinates: 470 nm
- Lumens Color 2: 31
- Lumens Color 3: 4
- Color 2 - Wavelength/Color Temp/Coordinates: 528 nm
- Number of Input Pins/Conductors: 4
- Input Type: Communication Protocol
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Audible Alarm Type: Adjustable Continuous
- Storage Temp: -40 to 70 °C
- Color Option 4: Yellow
- Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
- Color Option 5: Red
- Color 5 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 5: 7.5
- Lumens Color 4: 32
- Number of Tower Light Segments: 6
- Animation Option 5: Programmable
- Animation Option 4: Programmable
- Connection Type: Integral QD
- NEMA / UL: NEMA/UL 13
