Description
Features:

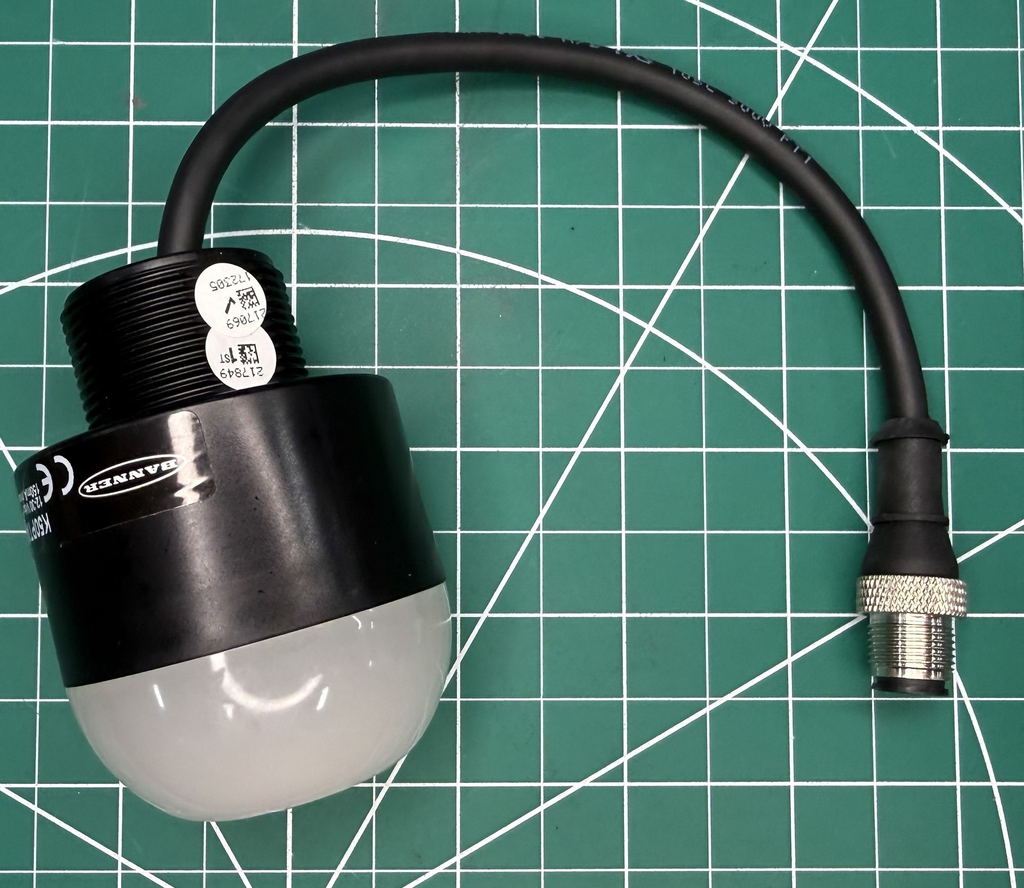

- K50 Pro Touch Series: 14-Color RGB Touch Sensor with Vibration Feedback; 12-30 V dc; Polycarbonate; IP67 IP69K; Bimodal, NO, Momentary; Multicolor; 8-Pin M12 Integral Quick Disconnect; Laser Marked Reset Icon
- Valve: Actuation: Yes
- Power: DC
- Feature: Display: No
- Max Current Color: 150 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67/69
- Housing Style: Base Mount - Dome Window
- Max Relative Humidity: 90% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Washdown Rated: Yes
- Color Option 3: Green
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 8.3
- Color Technology: RGB Configurable
- Feature: Audible: Yes
- Color Option 7: White
- Color Option 1: Red
- Color 1 - Wavelength/Color Temp/Coordinates: 620 nm
- Housing Color: Black
- Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
- Multi-Color Device: Simultaneous Colors On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 14
- Color 3 - Wavelength/Color Temp/Coordinates: 522 nm
- Lumens Color 2: 23.8
- Lumens Color 3: 16.5
- Color 2 - Wavelength/Color Temp/Coordinates: 576 nm
- Number of Input Pins/Conductors: 8
- Input Type: Bimodal (PNP/NPN)
- Feature: Pro-Editor Compatible (Discrete): Yes
- Max Input Response Time (ms): 40 ms
- Storage Temp: -40 to 70 °C
- Color Option 4: Cyan
- Color 4 - Wavelength/Color Temp/Coordinates: 493 nm
- Color Option 5: Blue
- Color 5 - Wavelength/Color Temp/Coordinates: 466 nm
- Lumens Color 5: 4.6
- Color 7 - Wavelength/Color Temp/Coordinates: 5700K
- Lumens Color 4: 18.4
- Lumens Color 6: 11.1
- Lumens Color 7: 25.1
- Wire Selectable Function: Flashing
- Color Option 6: Magenta
- Operation: Normally Open
- Activation Function: Capacitive Touch
- Max Output Response Time: 300 ms
- Pick-to-Light Function: F2
- Connection Type: Integral QD
- Feature: Vibration Feedback: Yes
