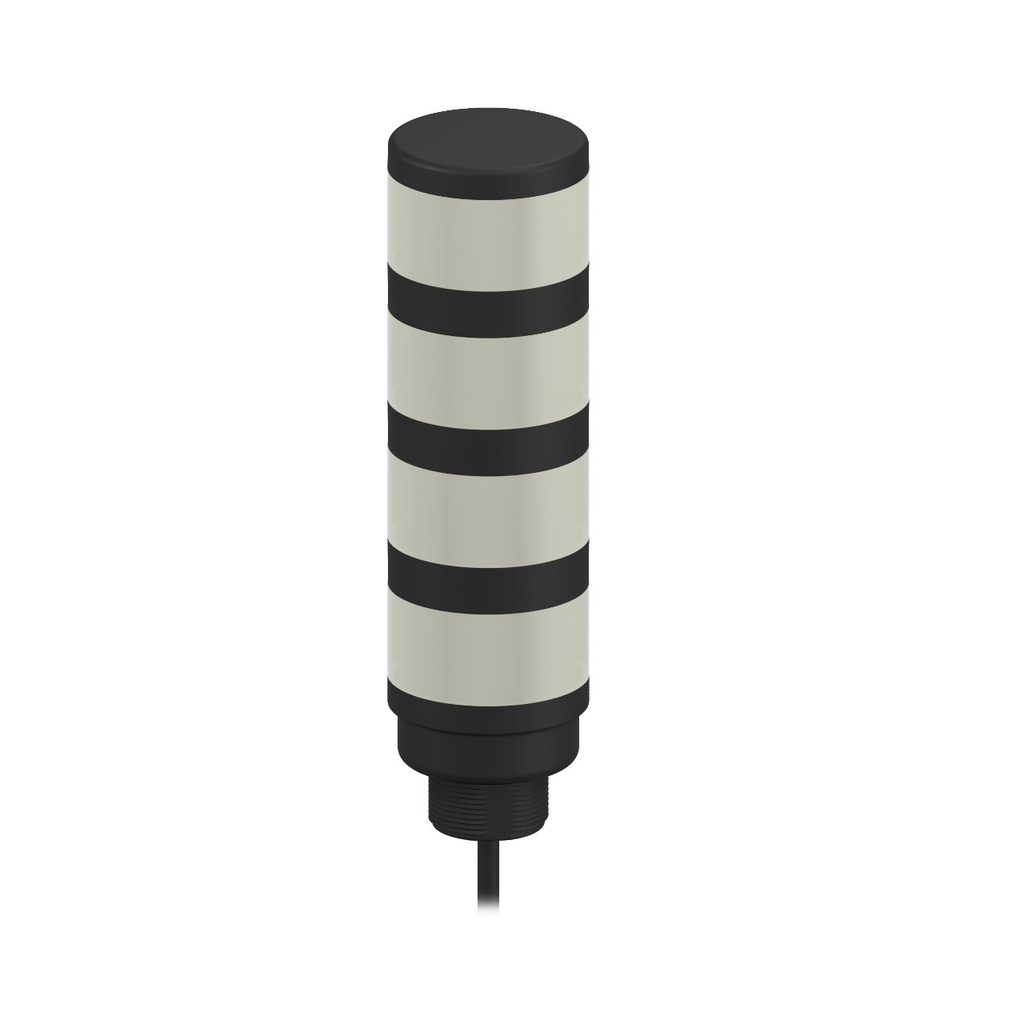

Tower Light Kit: 4-Color Indicator With Audible (TL70GYRWAQ3PMA-K)
Features:
- Tower Light Kit: 4-Color Indicator with Audible; Includes: QTY (1) SG-TL70-G-L, QTY (1) SG-TL70-Y-L, QTY (1) SG-TL70-R-L, QTY (1) SG-TL70-W-L, QTY (1) SG-TL70-A, QTY (1) B-TL70-Q3PMA, QTY (1) SMBAMS30RA70, QTY (1) SA-TL70RL50X150X5
- Power: AC or DC
- Feature: Display: No
- Max Current Color: 45 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 92
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Green
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 22
- Lumens Color 3: 40
- Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Audible Alarm Type: Continuous
- Storage Temp: -40 to 70 °C
- Color Option 4: White
- Color 4 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
- Lumens Color 4: 125
- Number of Tower Light Segments: 4
- Animation Option 4: Solid On
- Connection Type: Pigtail QD
- NEMA / UL: NEMA/UL 13
- Cord/Cable Length: 0.15 m
