K50 Pro Compact With Audible: 7-Color Rgb Indicator (K50PCLRGB7A)

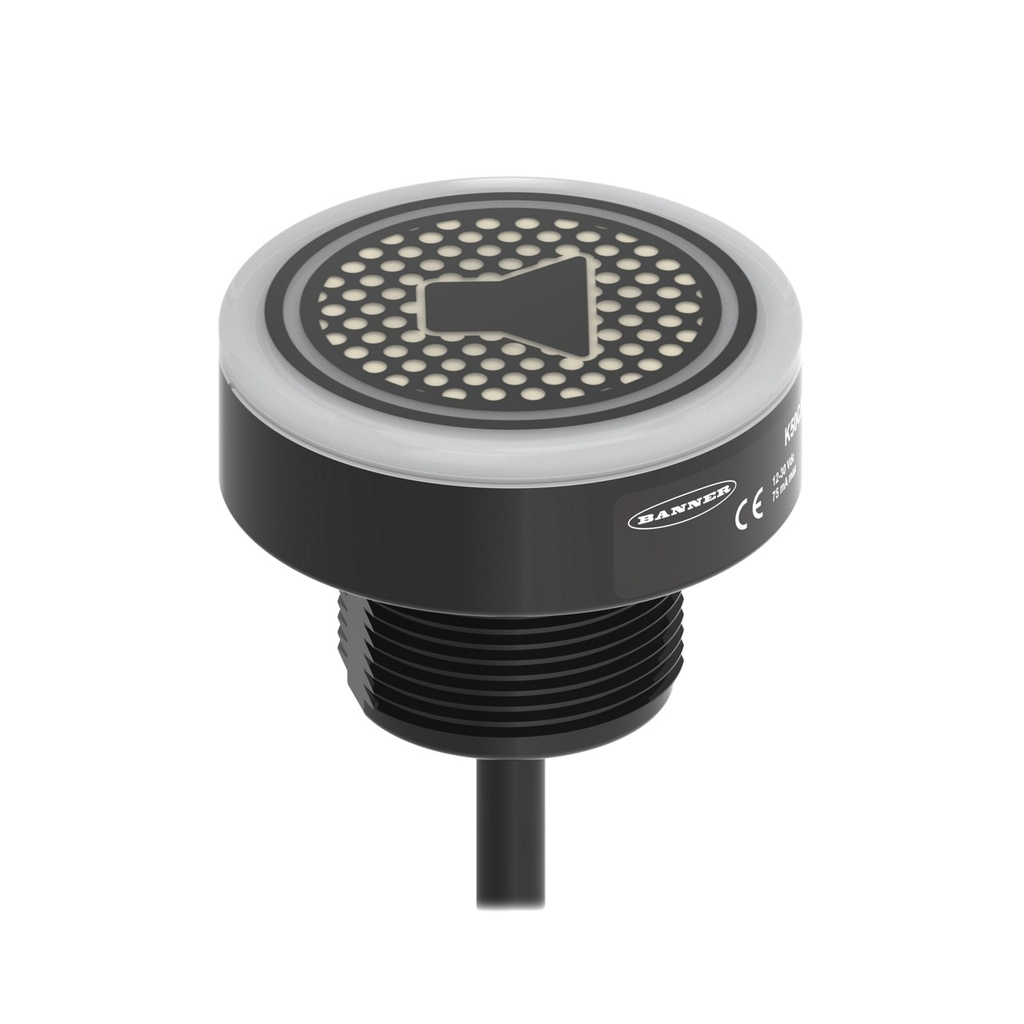

Representative photo. Please check item description for details.

K50 Pro Compact With Audible: 7-Color Rgb Indicator (K50PCLRGB7A)

https://www.branom.com/web/image/product.template/203655/image_1920?unique=7c19ea4
(0 review)

Features:

    K50 Pro Compact with Audible: 7-color RGB Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Input: Bimodal; Colors: Multicolor; 2 m (6.5 ft) Cable
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 210 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Base Mount - Flat Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 69.6 mm
  • Feature: Wireless: No
  • Color Option 3: Green
  • Max Audible Intensity: 92 dB @ 1 m
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Yellow
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 3.9
  • Min Audible Intensity @ 1m: 83 dB
  • Color Technology: RGB Configurable
  • Feature: Audible: Yes
  • Color Option 7: White
  • Color Option 1: Red
  • Color 1 - Wavelength/Color Temp/Coordinates: 532 nm
  • Housing Color: Black
  • Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Audible Operating Frequency (kHz): 2.9
  • Number of Colors / Segments: 7
  • Color 3 - Wavelength/Color Temp/Coordinates: 532 nm
  • Lumens Color 2: 11.6
  • Lumens Color 3: 8.9
  • Product Size (mm): 50 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 578 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): Yes
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Programmable
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Cyan
  • Color 4 - Wavelength/Color Temp/Coordinates: 492 nm
  • Color Option 5: Blue
  • Color 5 - Wavelength/Color Temp/Coordinates: 467 nm
  • Lumens Color 5: 1.6
  • Color 7 - Wavelength/Color Temp/Coordinates: 5700K
  • Lumens Color 4: 10.1
  • Lumens Color 6: 5.7
  • Lumens Color 7: 13.7
  • Color Option 6: Magenta
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
