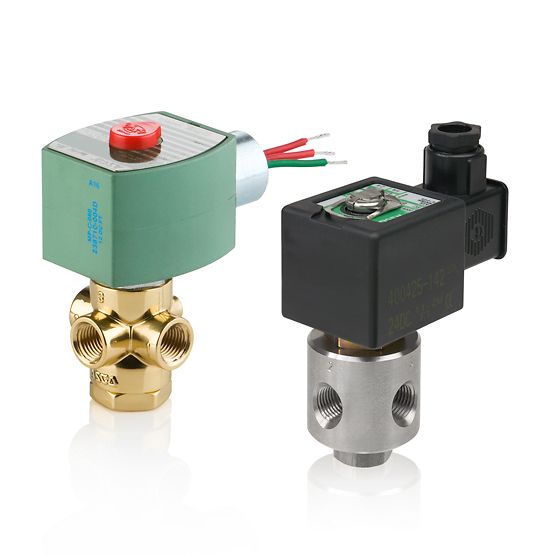

320 Series 1/4" NO 3-Way Solenoid Valve, 120/60, Brass Body
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum Operating Pressure Differential required
- Broadest range of applications
- Mountable in any position
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum Operating Pressure Differential required
- Broadest range of applications
- Mountable in any position
Alternative Products
Specifications
| Valve: Brand | Asco |
| Valve: Core Guide | CA |
| Valve: Pipe Size | 1/4 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR, Cast UR |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Flow Factor (Cv) | 0.09, 0.12, 0.25, 0.35 |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 11/64in, 1/16in, 3/32in, 1/8in |
| Valve: Seal Material | NBR, Cast UR |
| Valve: Shading Coil | Copper, Silver |
| Valve: Function | 3-Way Normally Open |
| Valve: Core Springs | Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Disc-Holder | CA |
| Valve: Min Temperature °F | 32 |
