Description
Features:

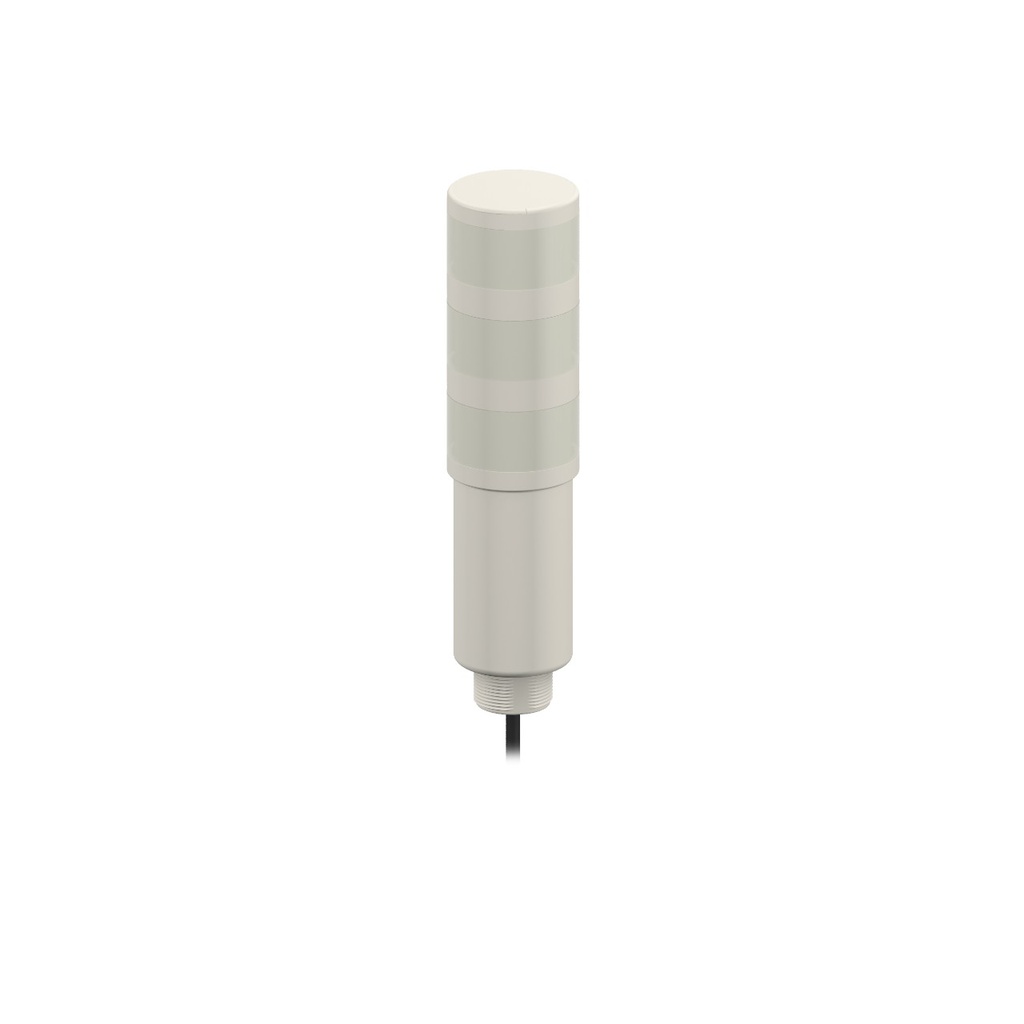

- TL50 Tower Light, Gray Housing: 3-Color Indicator
- Voltage: 100-240 V ac
- Environmental Rating: IP67
- Colors: Blue Yellow Red
- 2 m (6.5 ft) Cable
- Power: AC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 35 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VAC
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 50.0 x 230.1 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 100-240 VAC
- Color Option 2: Yellow
- Feature: Quick Disconnect: No
- Lumens Color 1: 4
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Blue
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
- Housing Color: Gray
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 5
- Lumens Color 3: 7.5
- Product Size (mm): 50 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
- Number of Input Pins/Conductors: 4
- Input Type: AC
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 500 ms
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Number of Tower Light Segments: 3
- Connection Type: Cable
- NEMA / UL: NEMA/UL 13
- Cord/Cable Length: 2 m
