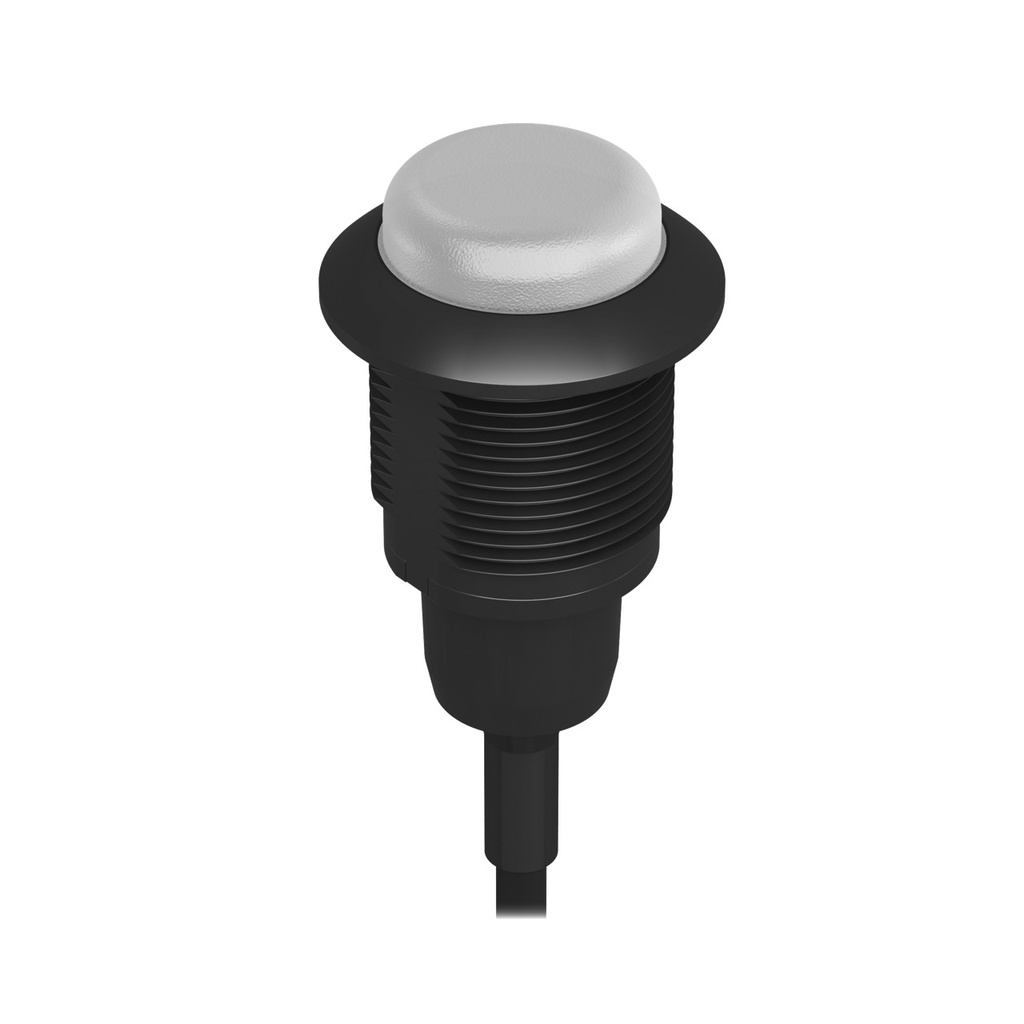

Representative photo. Please check item description for details.
S18 Ez-Light Daylight Visible High Intensity 18 Mm 1-Color (S18DLHWQP-88111)
Features:
- S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: White; Input: PNP; Euro 4-pin 150 mm (6 in) PVC Pigtail; Pin 3: Common; Pin 1: +V
- Power: DC
- Feature: Display Lighting: No
- Max Current Color: 60 mA
- Power Source: VDC
- Ingress Protection: IP67/69
- Housing Style: Barrel Mount - Flat Window
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 23.5 x 35.7 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Supply Voltage: 9-30 VDC
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 20
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: White
- Color 1 - Wavelength/Color Temp/Coordinates: 7500K
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12 (Euro)
- Number of Colors / Segments: 1
- Product Size (mm): 18 mm
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M18 x 1.0
- Max Input Response Time (ms): 1 ms
- Feature: Chemical Resistant: No
- Indication Intensity: High Brightness & Daylight Visible
- Connection: Pigtail QD
- NEMA / UL: NEMA/UL 4X/13
- Max Input Response Time: 1 ms
