Representative photo. Please check item description for details.

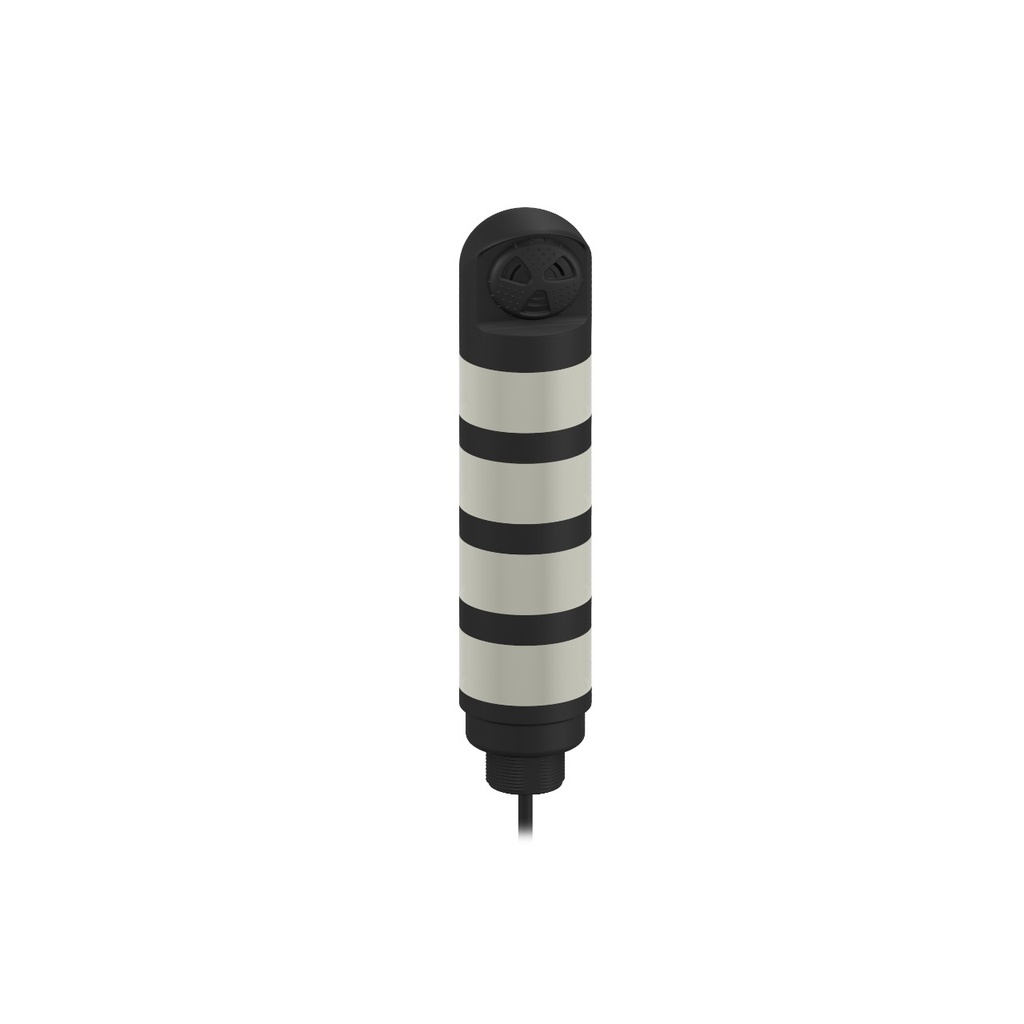

High Intensity Tower Light: 4-Color (TL50HBYRGALSQPMA-92790)
Features:
- High Intensity Tower Light: 4-Color; Sealed Loud Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Blue Yellow Red Green; Euro 4-pin x3 150 mm (6 in) PUR Pigtails
- Power: AC or DC
- Feature: Display: No
- Max Current Color: 100 mA
- Max Current - Audible Alarm (mA): 35 mA
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Indication: Yes
- Color Option 3: Red
- Max Audible Intensity: 94 dB @ 1 m
- Supply Voltage: 18-30 VDC/24 VAC
- Color Option 2: Yellow
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 23
- Animation Option 3: Solid On
- Min Audible Intensity @ 1m: 74 dB
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Blue
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 475 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Audible Operating Frequency (kHz): 2.9
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 23
- Lumens Color 3: 32
- Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Audible Alarm Type: Continuous
- Storage Temp: -40 to 70 °C
- Color Option 4: Green
- Color 4 - Wavelength/Color Temp/Coordinates: 525 nm
- Lumens Color 4: 60
- Number of Tower Light Segments: 5
- Indication Intensity: High Brightness
- Animation Option 4: Solid On
- Connection Type: Pigtail PUR QD
- NEMA / UL: NEMA/UL 13
- Cord/Cable Length: 0.15 m
