Description
Features:

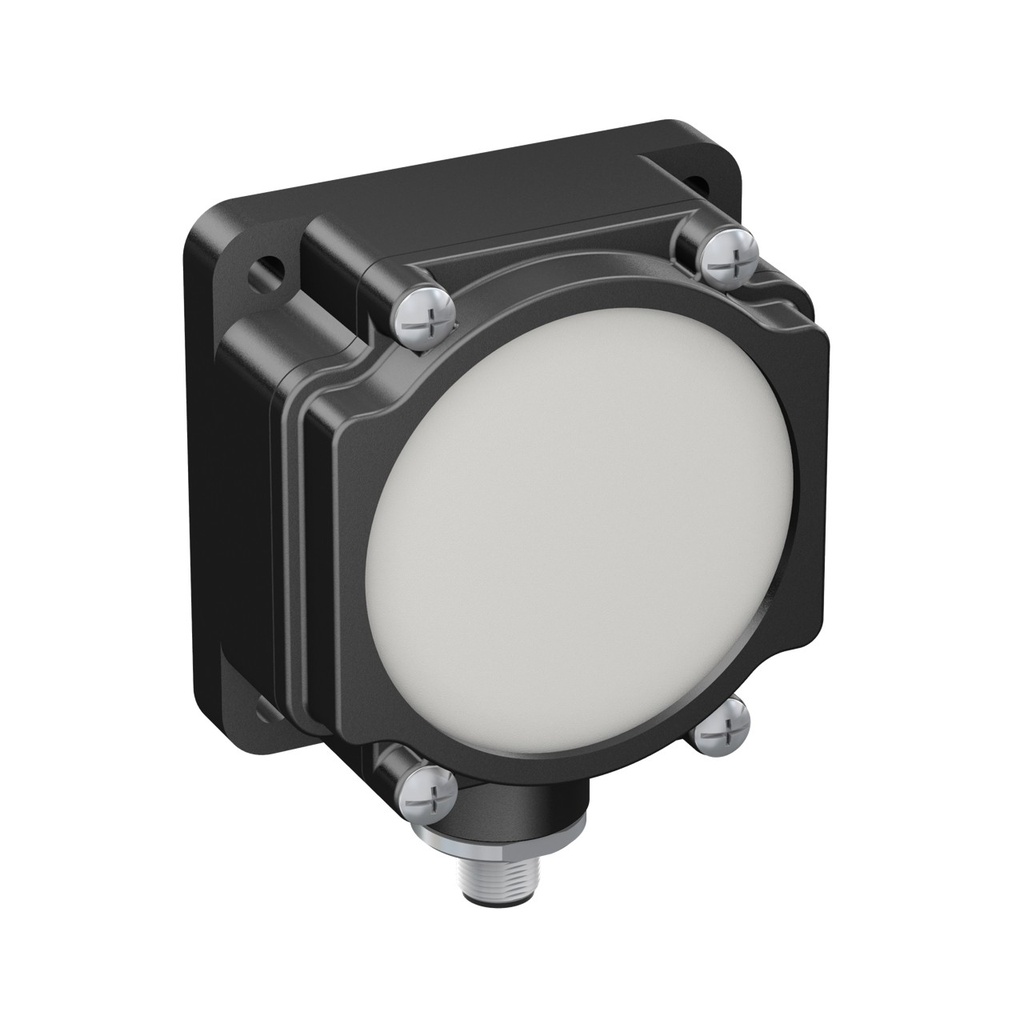

- K80 Series EZ-LIGHT: 3-Color Segmented Indicator
- Voltage: 18-30 V dc
- Housing: Polycarbonate
- IP67
- Input: PNP
- Colors: White Red Green
- Euro 5-pin Integral Connector
- Power: DC
- Feature: Display: No
- Max Current Color: 90 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Flat Mount - Flat Window
- Housing Material_: Polycarbonate
- Feature: Indication: Yes
- Color Option 3: Green
- Supply Voltage: 18-30 VDC
- Color Option 2: Red
- Feature: Quick Disconnect: Yes
- Animation Option 3: Multiple
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: White
- Animation Option 2: Multiple
- Housing Color: Yellow
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Multiple
- Quick Disconnect Type: M12
- Number of Colors / Segments: 3
- Number of Input Pins/Conductors: 5
- Input Type: PNP
- Mounting Thread: No Thread
- Max Input Response Time (ms): 250 ms
- Wire Selectable Function: Multi-Function
- Connection Type: Integral QD
