Watlow AC Style Mineral Insulated Type K Thermocouple, .125" dia sheath, 10" Length, plug, 304 SS

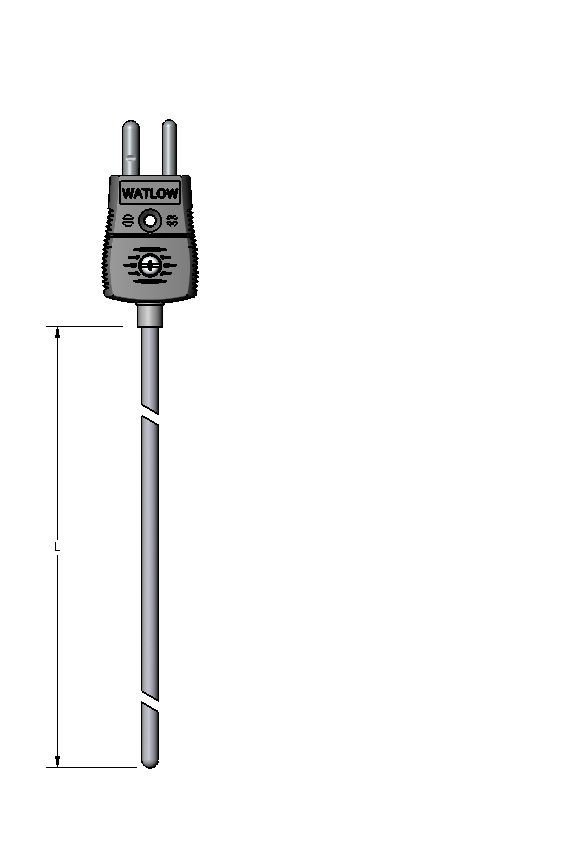

Representative photo. Please check item description for details.

Watlow AC Style Mineral Insulated Type K Thermocouple, .125" dia sheath, 10" Length, plug, 304 SS

https://www.branom.com/web/image/product.template/182187/image_1920?unique=af74d23
(0 review)

MI Sensor Style AC Style with Mini Connector
Sheath Outside Diameter [in] G-.125 Inch
Junction Type G - Single Grounded
Sheath Material A - 304 and 304L SS (Dual Certified)
Calibraton Type Type K
Limits of Error Standard - (±2.2 or ±0.75%) C°
Mounting Options None
Bend Option Straight Length
Sheath Length [in] 10.000
Sheath Tolerance [in] ± 0.125
Connector Type H - Miniature Plug - Mating Connector
Cold End Seal/Potting 300°F Epoxy
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
Lot Control NA - None


  • Stem Length
  • Measurement Minimum

This combination does not exist.

Contact Us

Share

MI Sensor Style AC Style with Mini Connector
Sheath Outside Diameter [in] G-.125 Inch
Junction Type G - Single Grounded
Sheath Material A - 304 and 304L SS (Dual Certified)
Calibraton Type Type K
Limits of Error Standard - (±2.2 or ±0.75%) C°
Mounting Options None
Bend Option Straight Length
Sheath Length [in] 10.000
Sheath Tolerance [in] ± 0.125
Connector Type H - Miniature Plug - Mating Connector
Cold End Seal/Potting 300°F Epoxy
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
Lot Control NA - None

Specifications

Stem Length 24 in (609.6 mm)
Measurement Minimum 0
