Watlow AF Style Mineral Insulated Themocouple Type J, 3" SS Sheath, 120" Lead Length Ungrounded (Af-2027780)

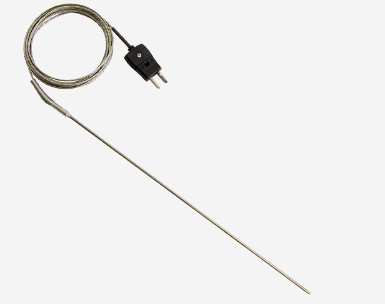

Representative photo. Please check item description for details.

Watlow AF Style Mineral Insulated Themocouple Type J, 3" SS Sheath, 120" Lead Length Ungrounded (Af-2027780)

https://www.branom.com/web/image/product.template/182962/image_1920?unique=17d9068
(0 review)

MI Sensor Style AF Style
Sheath Outside Diameter [in] G-.125 Inch
Junction Type U - Single Ungrounded
Sheath Material F - 316 and 316L SS (Dual Certified)
Calibraton Type Type J
Limits of Error Standard - (±2.2 or ±0.75%) C°
Mounting Options B - Fixed Single Thread 1/4 NPT
Fitting Material 303 - 303 SS
Thread B - 1/4"NPT
Fitting Mounting Location [in] (A) 2.125
Bend Option Straight Length
Sheath Length [in] 3.000
Sheath Tolerance [in] ± 0.125
Lead Wire Construction C - FEP, Solid
Lead Wire Length [in] 120
Lead Wire Termination T - Standard Split Leads
Cold End Seal/Potting 300°F Epoxy
Transition Style AF - 1/4" with Spring (700), Crimped
Gauge Size 20 Gauge
Insulated Singles Length [in] 1.500
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No


  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

MI Sensor Style AF Style
Sheath Outside Diameter [in] G-.125 Inch
Junction Type U - Single Ungrounded
Sheath Material F - 316 and 316L SS (Dual Certified)
Calibraton Type Type J
Limits of Error Standard - (±2.2 or ±0.75%) C°
Mounting Options B - Fixed Single Thread 1/4 NPT
Fitting Material 303 - 303 SS
Thread B - 1/4"NPT
Fitting Mounting Location [in] (A) 2.125
Bend Option Straight Length
Sheath Length [in] 3.000
Sheath Tolerance [in] ± 0.125
Lead Wire Construction C - FEP, Solid
Lead Wire Length [in] 120
Lead Wire Termination T - Standard Split Leads
Cold End Seal/Potting 300°F Epoxy
Transition Style AF - 1/4" with Spring (700), Crimped
Gauge Size 20 Gauge
Insulated Singles Length [in] 1.500
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No

Specifications

Measurement Maximum 0
Measurement Minimum 0
