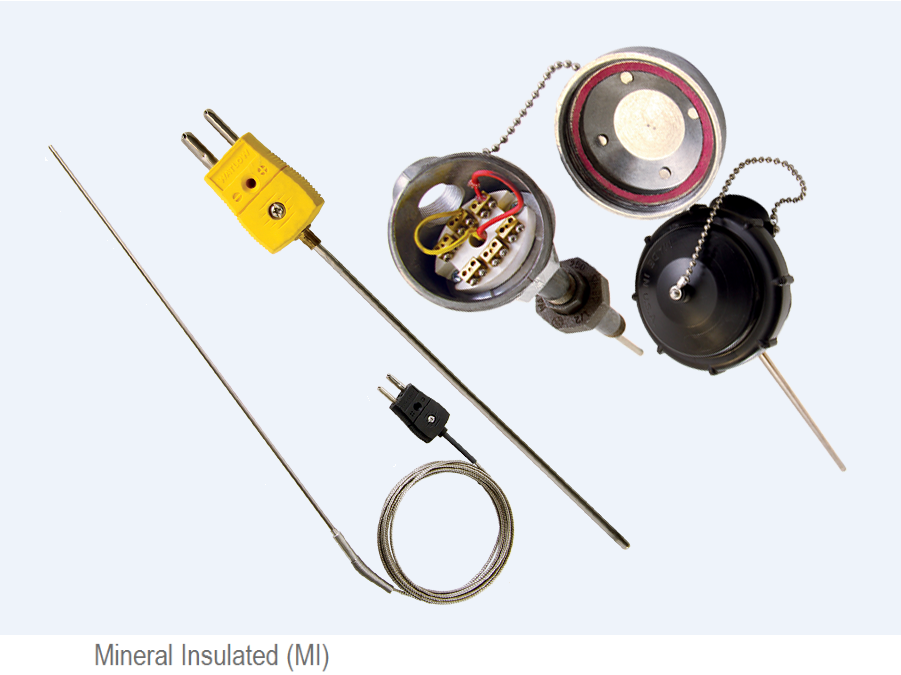

Watlow MISensor, AF Style Type T, .125 O.D
MI Sensor Style AF Style
Sheath Outside Diameter [in] G-.125 Inch
Junction Type G - Single Grounded
Sheath Material F - 316 and 316L SS (Dual Certified)
Calibraton Type Type T
Limits of Error Standard Limits
Mounting Options None
Bend Option Straight Length
Sheath Length [in] 1.750
Lead Wire Construction M - FEP SS Overbraid, Stranded
Lead Wire Length [in] 252
Lead Wire Termination T - Standard Split Leads
Cold End Seal/Potting 500°F Epoxy
Transition Style AF - 1/4" with Spring (700), Crimped
Gauge Size 24 Gauge
Insulated Singles Length [in] 1.500
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
Lot Control NA - None
MI Sensor Style AF Style
Sheath Outside Diameter [in] G-.125 Inch
Junction Type G - Single Grounded
Sheath Material F - 316 and 316L SS (Dual Certified)
Calibraton Type Type T
Limits of Error Standard Limits
Mounting Options None
Bend Option Straight Length
Sheath Length [in] 1.750
Lead Wire Construction M - FEP SS Overbraid, Stranded
Lead Wire Length [in] 252
Lead Wire Termination T - Standard Split Leads
Cold End Seal/Potting 500°F Epoxy
Transition Style AF - 1/4" with Spring (700), Crimped
Gauge Size 24 Gauge
Insulated Singles Length [in] 1.500
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
Lot Control NA - None
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Input Communication Protocol | RTD, TC, mV, ohm |
