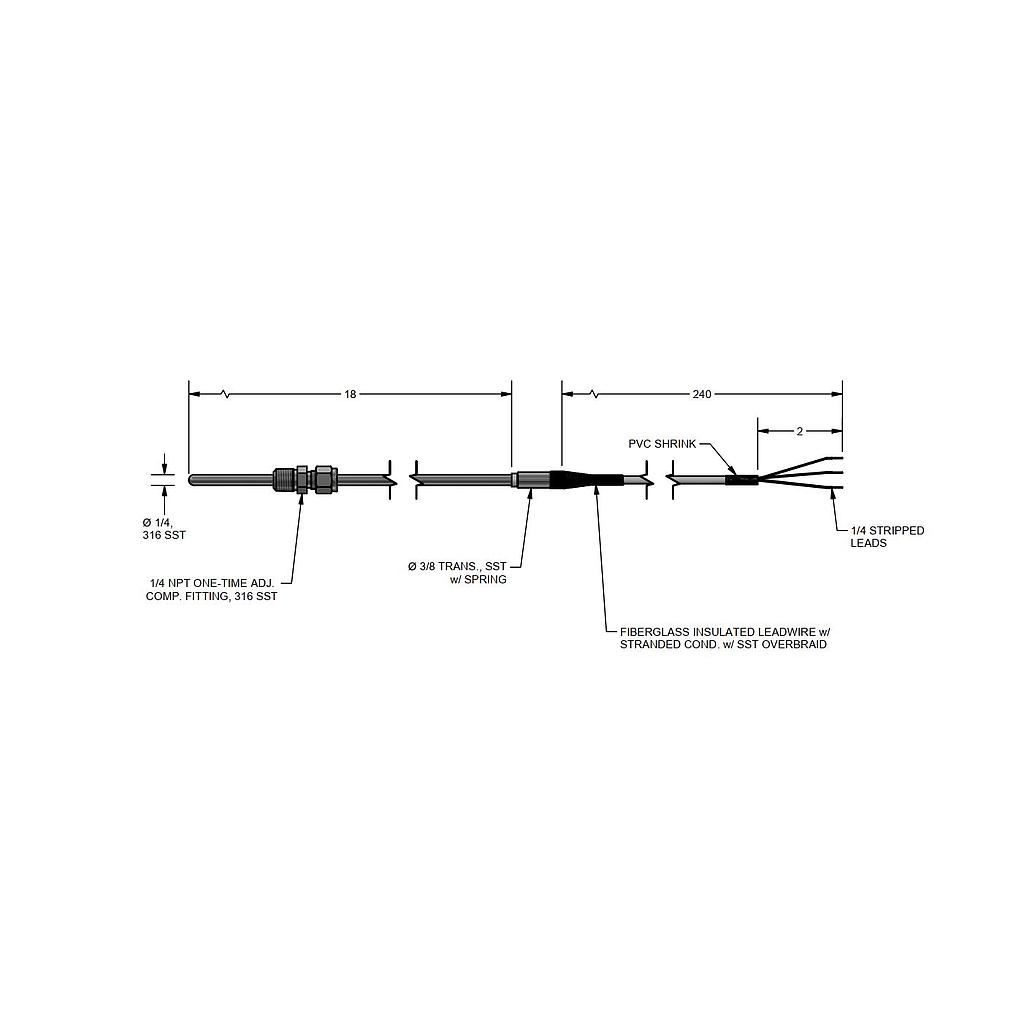

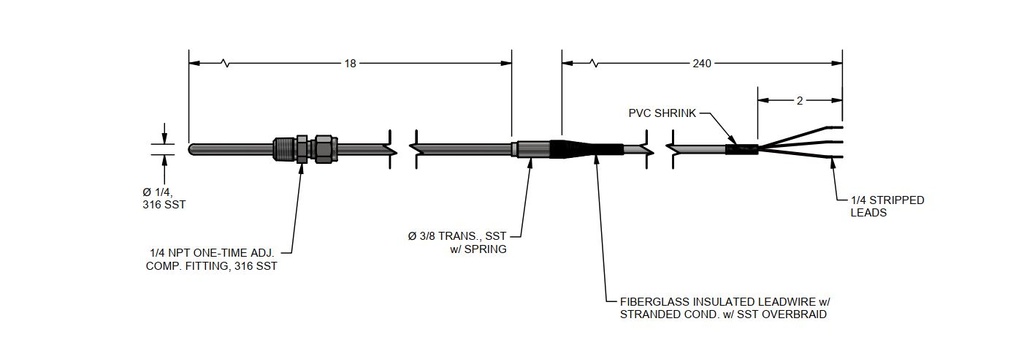

Representative photo. Please check item description for details.

PYROMATION, SINGLE RTD 100OHM, 18INCHES

https://www.branom.com/web/image/product.template/185168/image_1920?unique=f069c2d
(0 review)

‡ Single Element RTD
‡ 100 ohm Platinum
‡ Temperature Coefficient 0.00385 ohms per Degree C
‡ Tolerance Grade B
‡ Temperature Range -200 to 600 Degrees C
‡ 1/4 Inch Diameter 316 Stainless Steel Sheath
‡ 3 Wire
‡ Sheath Length: 18 Inches
‡ One-Time Adjustable Compression Fitting - 316 Stainless Steel - 1/4 Inch NPT
‡ Extension Leadwire Transition with Relief Spring 400 Degrees F
‡ Leadwire - Fiberglass Insulation - Stranded Conductor - Stainless Steel Overbraid
‡ Extension Wire B Length: 240 Inches
‡ 2 Inch Split Leads 1/4 Inch Stripped


$ 254.40 254.4 USD $ 254.40

$ 254.40

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Stem Length
  • Measurement Minimum
  • Stem Diameter

This combination does not exist.

Contact Us

Share

‡ Single Element RTD
‡ 100 ohm Platinum
‡ Temperature Coefficient 0.00385 ohms per Degree C
‡ Tolerance Grade B
‡ Temperature Range -200 to 600 Degrees C
‡ 1/4 Inch Diameter 316 Stainless Steel Sheath
‡ 3 Wire
‡ Sheath Length: 18 Inches
‡ One-Time Adjustable Compression Fitting - 316 Stainless Steel - 1/4 Inch NPT
‡ Extension Leadwire Transition with Relief Spring 400 Degrees F
‡ Leadwire - Fiberglass Insulation - Stranded Conductor - Stainless Steel Overbraid
‡ Extension Wire B Length: 240 Inches
‡ 2 Inch Split Leads 1/4 Inch Stripped

Specifications

Measurement Maximum 0
Process Connection Type NPT
Stem Length 18 in (457.2 mm)
Measurement Minimum 0
Stem Diameter 0.250 in (6.35 mm)
