Veeder Root C346 PRESET COUNTER 115 VAC POWER

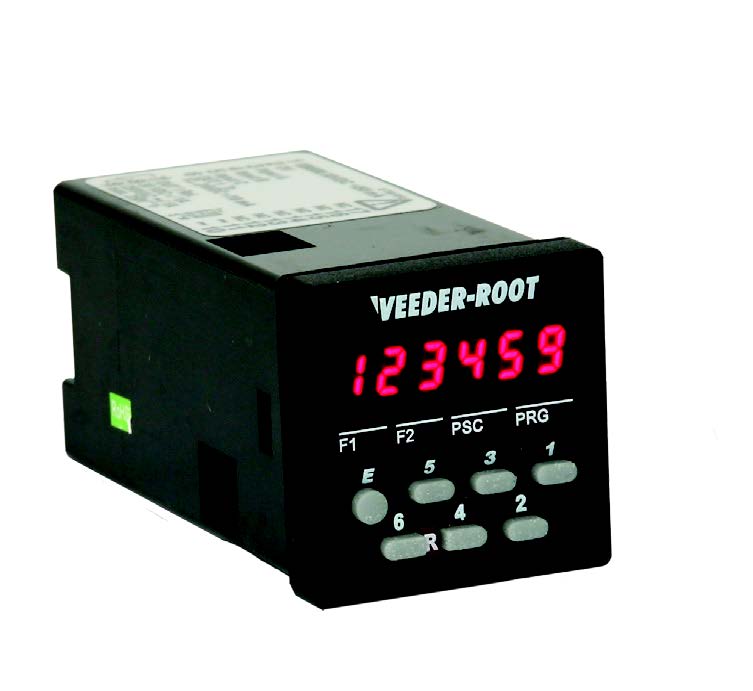

Representative photo. Please check item description for details.

Veeder Root C346 PRESET COUNTER 115 VAC POWER

https://www.branom.com/web/image/product.template/189082/image_1920?unique=c1b9893
(0 review)

COUNT MODES Add/Subtract, Add/Add, Count/Direction, or Quadrature, field
selectable
COUNT SPEED 30 Hz or 5kHz, field selectable
PRESETS 6 digit; Single (C346-0_1), Dual (C346-0_2)
RESET Front panel (selectable enable), remote input or automatic
CALIBRATOR 0.001 to 9.999 multiplier common to inputs A and B
DECIMAL POINT Selectable from XXXXXX to XXX.XXX
COUNT INPUTS Contact Closure, Sourcing, Sinking; low < 2.0 VDC, high > 8.0 VDC;
40 VDC max.
CONTROL INPUTS Remote Reset and Program Enable; low < 2.0 VDC, high > 8.0 VDC;
40 VDC max.
OUTPUTS
1 relay and 1 transistor per preset
Relay(s): SPDT 1A resistive @ 250 VAC
Transistor: PNP open collector, 24 VDC max, 10 mA max
DIMENSIONS 48mm x 48mm, 93.5mm deep
MOUNTING Panel mount (mounting bracket supplied), 45mm x 45mm cutout
TERMINALS Screw Type
DISPLAY Single line seven segment LED, 7.6mm high or Single line LCD,
9mm high
SUPPLY VOLTAGE 115 VAC, 230 VAC 50/60Hz; 12 - 24 VDC
ACCESSORY POWER 12 to 24 VDC, 0 - 50mA
OPERATING
TEMPERATURE 0° to 50° Celsius, 32° to 122° Fahrenheit
STORAGE
TEMPERATURE -20° to 60° Celsius, -4° to 140° Fahrenheit
FRONT PANEL RATING NEMA 4/IP65
APPROVALS CE


  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

COUNT MODES Add/Subtract, Add/Add, Count/Direction, or Quadrature, field
selectable
COUNT SPEED 30 Hz or 5kHz, field selectable
PRESETS 6 digit; Single (C346-0_1), Dual (C346-0_2)
RESET Front panel (selectable enable), remote input or automatic
CALIBRATOR 0.001 to 9.999 multiplier common to inputs A and B
DECIMAL POINT Selectable from XXXXXX to XXX.XXX
COUNT INPUTS Contact Closure, Sourcing, Sinking; low < 2.0 VDC, high > 8.0 VDC;
40 VDC max.
CONTROL INPUTS Remote Reset and Program Enable; low < 2.0 VDC, high > 8.0 VDC;
40 VDC max.
OUTPUTS
1 relay and 1 transistor per preset
Relay(s): SPDT 1A resistive @ 250 VAC
Transistor: PNP open collector, 24 VDC max, 10 mA max
DIMENSIONS 48mm x 48mm, 93.5mm deep
MOUNTING Panel mount (mounting bracket supplied), 45mm x 45mm cutout
TERMINALS Screw Type
DISPLAY Single line seven segment LED, 7.6mm high or Single line LCD,
9mm high
SUPPLY VOLTAGE 115 VAC, 230 VAC 50/60Hz; 12 - 24 VDC
ACCESSORY POWER 12 to 24 VDC, 0 - 50mA
OPERATING
TEMPERATURE 0° to 50° Celsius, 32° to 122° Fahrenheit
STORAGE
TEMPERATURE -20° to 60° Celsius, -4° to 140° Fahrenheit
FRONT PANEL RATING NEMA 4/IP65
APPROVALS CE

Specifications

Measurement Maximum 0
Measurement Minimum 0
Input Voltage 120 VAC
