Thermocouples

Thermocouples

Thermocouples consist of two wires of different metals which are connected at two points. The voltage that develops at these junctions is temperature-dependent and can be used to measure temperature. They are used in various industries and manufacturing. Thermocouples also act as input signals for both recorders and process controllers.

Branom Instrument Company is proud to offer thermocouples from well-known brands such as Watlow, Wika, Bellofram, Pyromation, and Red Lion. If you'd like to discuss the best product for your business, contact our sales team today!

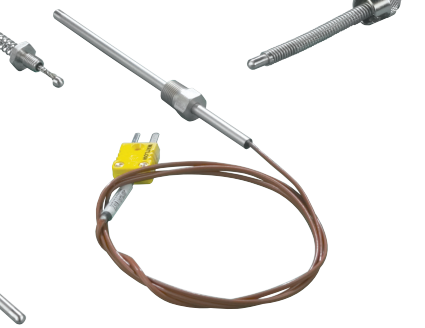

[22CKSUQ018A] WATLOW Sensor Style 22 Style- .125 & .188 Dia-90° Bend Sheath Outside Diameter [in] C = .125 inch Junction Type/Tip Style U: Single "U" Round Tip Calibraton Type Type K Limits of Error Standard Limits Hot Leg Length [in] (A) 7.500 Cold leg length [in] (H) 1.375 Process Mtg Fitting None Strain Relief None Lead Wire Type S -Fiberglass w/SS Overbraid, 24 GA Stranded Lead Length [in] (E) 18 Termination Type A - Split Leads w/ 1/2" Bare Insulated Singles Length [in] (S) 2.500 Lead wire Color Code ANSI

Watlow Electric Manufacturing Company

WATLOW Sensor Style 22 Style- .125 & .188 Dia-90° Bend Sheath Outside Diameter [in] C = .125 inch Junction Type/Tip Style U: Single "U" Round Tip Calibraton Type Type K Limits of Error Standard Limits Hot Leg Length [in] (A) 7.500 Cold leg length [in] (H) 1.375 Process Mtg Fitting None Strain Relief None Lead Wire Type S -Fiberglass w/SS Overbraid, 24 GA Stranded Lead Length [in] (E) 18 Termination Type A - Split Leads w/ 1/2" Bare Insulated Singles Length [in] (S) 2.500 Lead wire Color Code ANSI
22CKSUQ018A

$ 39.17

MADE TO ORDER

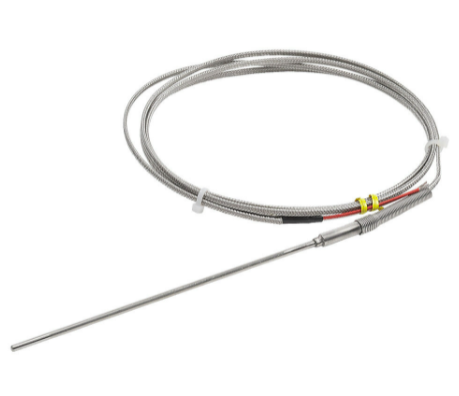

[2382-6199] Watlow Thermocouple Style 20 Style- .125 & .188 Dia-Straight Sheath Outside Diameter [in] C = .125 inch Junction Type/Tip Style G: Single "G" Round Tip Calibraton Type Type J Limits of Error Standard Limits Sheath Length [in] (L) 12.000 Process Mtg Fitting Single Threaded Compression Compression Fitting Style N3 - Non-adjustable 303 SS Strain Relief None Lead Wire Type F -Fiberglass, 24 GA Stranded Sheath Mounted Connector No Lead Length [in] (E) 108 Termination Type A - Split Leads w/ 1/2" Bare Insulated Singles Length [in] (S) 2.500 Lead wire Color Code ANSI - United States Standard Certification Type No Certification Required

Watlow Electric Manufacturing Company

Watlow Thermocouple Style 20 Style- .125 & .188 Dia-Straight Sheath Outside Diameter [in] C = .125 inch Junction Type/Tip Style G: Single "G" Round Tip Calibraton Type Type J Limits of Error Standard Limits Sheath Length [in] (L) 12.000 Process Mtg Fitting Single Threaded Compression Compression Fitting Style N3 - Non-adjustable 303 SS Strain Relief None Lead Wire Type F -Fiberglass, 24 GA Stranded Sheath Mounted Connector No Lead Length [in] (E) 108 Termination Type A - Split Leads w/ 1/2" Bare Insulated Singles Length [in] (S) 2.500 Lead wire Color Code ANSI - United States Standard Certification Type No Certification Required
2382-6199

$ 52.89

MADE TO ORDER
