Representative photo. Please check item description for details.

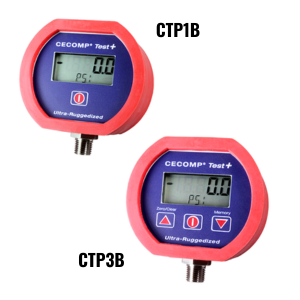

Cecomp CTP1B/CTP3B Series User Configurable Test + Battery Powered Digital Pressure Gauge

Code Prefix: CTP

Model
- [1B] 1-Button
- [3B] 3-Button
Measurement Type
Range/Resolution
Calibration
- Without
- [NC] NIST traceability documentation, 5 points and date + $ 173.61
Gauge: Brand
Gauge: Type

This combination does not exist.

Features

AA battery powered
±0.25% or ±0.1% accuracy
316 stainless steel sensor
1 year warranty±0.1% Test Gauge Accuracy
Ruggedized Design
Red Rubber Boot Included
316L Stainless Steel Wetted Parts
Selectable Units and Auto Shutoff Times
White LED Display Backlight
4 digit display
Coated circuit boards for humidity resistance
User configurable for common engineering units: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2 (Note: Available engineering units may be limited by sensor range.)
Min/Max Memory, user configurable
Save or delete min/max with power off
Pushbutton zero (gauge reference only)
Selectable units and auto shutoff time
Passcode protected configuration via internal buttons (CTP1B) or keypad (CTP3B)

Cecomp CTP1B/CTP3B Series
Model	1-Button, 3-Button
Measurement Type	Vacuum, Vacuum Pressure, Pressure, Absolute Reference
Range/Resolution	0 to 14.70 psig vacuum, -14.70 to 15.00 psig, -29.92 inHg to 15.00 psig, -14.7 to 100.0 psig, -29.9 inHg to 100.0 psig, -14.7 to 200.0 psig, -29.9 inHg to 200.0 psig, 0 to 3.000 psig, 0 to 5.000 psig, 0 to 15.00 psig, 0 to 30.00 psig, 0 to 60.00 psig, 0 to 100.0 psig, 0 to 200.0 psig, 0 to 300.0 psig, 0 to 500.0 psig, 0 to 1000 psig, 0 to 2000 psig, 0 to 3000 psig, 0 to 5000 psig, 15.00 to 0 psi absolute, 30.00 to 0 psi absolute, 100.0 to 0 psi absolute
Calibration	Without, NIST traceability documentation, 5 points and date

Press. Gauge Features
Gauge: Brand	Cecomp
Gauge: Type	Digital Gauge
