Watlow 6" 150Lb Flanged Circulation Heater, 480V/36Kw, 27.375" Element Insertion Length, 12 Elements
Representative photo. Please check item description for details.

Watlow 6" 150Lb Flanged Circulation Heater, 480V/36Kw, 27.375" Element Insertion Length, 12 Elements

https://www.branom.com/web/image/product.template/182082/image_1920?unique=2a9b793
(0 review)

Circ Flange Voltage: 480
Circ Flange Wattage: 36,000
Watt Density: 47.7

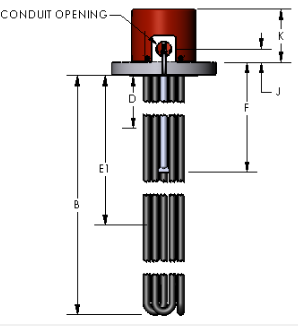

B Dimension (Immersed element length): 25.3750
Number of Elements: 12 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
