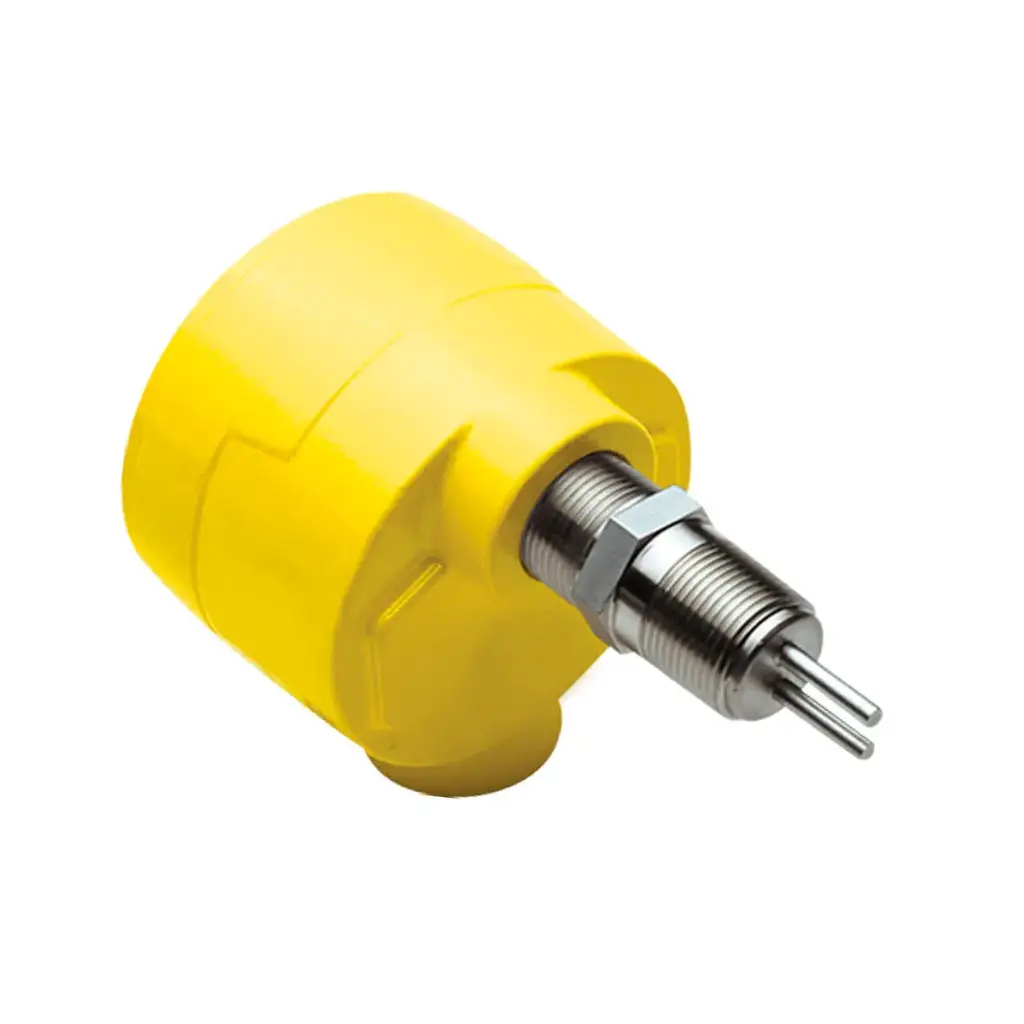

Representative photo. Please check item description for details.
FCI FLT93S Heavy Duty Insertion FlexSwitch; Flow, Level, Interface, & Temperature Switch
The FLT93S insertion type FlexSwitch for flow, level, interface, and temperature monitoring represents the first true technological breakthrough in thermal technology in over a decade. This product was designed for heavy industrial environments including high temperature and high pressure. FCI is the only thermal manufacturer providing temperature compensation to ensure set point accuracy for process temperatures that vary up to ± 100°F. The FLT93S is easily field-configured or factory preset, providing unparalleled flexibility, accuracy and stability for all multiple process sensing and switching requirements.
The FLT93S insertion type FlexSwitch for flow, level, interface, and temperature monitoring represents the first true technological breakthrough in thermal technology in over a decade. This product was designed for heavy industrial environments including high temperature and high pressure. FCI is the only thermal manufacturer providing temperature compensation to ensure set point accuracy for process temperatures that vary up to ± 100°F. The FLT93S is easily field-configured or factory preset, providing unparalleled flexibility, accuracy and stability for all multiple process sensing and switching requirements.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Agency Approval | [1] Factory Mutual (FM), [2] Factory Mutual (FM) [T4 Rated], [3] ATEX, CE Marking, [4] FMc, [5] FMc [T4 Rated], [6] IEC, [0] Not Required |
| Nameplate Option | [A] Mylar, [B] 316L Stainless Steel - Compact, [B] 316L Stainless Steel - Remote, [W] Customer Specified Special |
| Process Temperature | [1] -40°F to 350°F [-40°C to 177°C], [2] -100°F to 500°F [-73°C to 260°C], [3] -100°F to 850°F [-73°C to 454°C] |
| All Welded Material of Construction | [A] 316L Stainless Steel, [B] 316L Stainless Steel Electro-Polish, [C] Hastelloy C, [D] Monel 400, [E] Titanium Grade 2, [W] Customer Specified Special |
| Process Connection | [1] 3/4" NPT, [2] 1" NPT, [3] 1" BSPT, [4] Flanged, [5] 1-1/4" NPT Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material, [6] Flanged Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material, [7] 1-1/4" NPT Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material, [8] Flanged Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material, [C] 3/4" NPT Compression Fitting w/ Teflon Ferrule, [G] Flanged Compression Fitting w/ Teflon Ferrule, [H] 3/4" NPT Compression Fitting w/ Metal Ferrule, [J] Flanged Compression Fitting w/ Metal Ferrule, [5] 1-1/4" NPT Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material - Hastelloy, [6] Flanged Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material - Hastelloy, [7] 1-1/4" NPT Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material - Hastelloy, [8] Flanged Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material - Hastelloy, [C] 3/4" NPT Compression Fitting w/ Teflon Ferrule - Hastelloy, [G] Flanged Compression Fitting w/ Teflon Ferrule - Hastelloy, [H] 3/4" NPT Compression Fitting w/ Metal Ferrule - Hastelloy, [J] Flanged Compression Fitting w/ Metal Ferrule - Hastelloy, [5] 1-1/4" NPT Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material - Monel, [6] Flanged Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material - Monel, [7] 1-1/4" NPT Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material - Monel, [8] Flanged Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material - Monel, [5] 1-1/4" NPT Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material - Titanium, [6] Flanged Low Pressure Packing Gland to 50 psig [3.5 barg] w/ Graphite Packing Material - Titanium, [7] 1-1/4" NPT Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material - Titanium, [8] Flanged Medium Pressure Packing Gland to 500 psig [35 barg] w/ Graphite Packing Material - Titanium, [W] Customer Specified Special |
| Flange Size | [0] Threaded Connection, [A] 1-1/2" 150lb RF ASME B16.5 - Carbon Steel, [B] 1-1/2" 150lb RF ASME B16.5 - 316L Stainless Steel, [B] 1-1/2" 150lb RF ASME B16.5 - 316L Stainless Steel Electro-Polish, [B] 1-1/2" 150lb RF ASME B16.5 - Hastelloy C, [B] 1-1/2" 150lb RF ASME B16.5 - Monel 400, [B] 1-1/2" 150lb RF ASME B16.5 - Titanium Grade 2, [C] 1-1/2" 300lb RF ASME B16.5 - Carbon Steel, [D] 1-1/2" 300lb RF ASME B16.5 - 316L Stainless Steel, [D] 1-1/2" 300lb RF ASME B16.5 - 316L Stainless Steel Electro-Polish, [D] 1-1/2" 300lb RF ASME B16.5 - Hastelloy C, [D] 1-1/2" 300lb RF ASME B16.5 - Monel 400, [D] 1-1/2" 300lb RF ASME B16.5 - Titanium Grade 2, [E] 2" 150lb RF ASME B16.5 - Carbon Steel, [F] 2" 150lb RF ASME B16.5 - 316L Stainless Steel, [F] 2" 150lb RF ASME B16.5 - 316L Stainless Steel Electro-Polish, [F] 2" 150lb RF ASME B16.5 - Hastelloy C, [F] 2" 150lb RF ASME B16.5 - Monel 400, [F] 2" 150lb RF ASME B16.5 - Titanium Grade 2, [G] 2" 300lb RF ASME B16.5 - Carbon Steel, [H] 2" 300lb RF ASME B16.5 - 316L Stainless Steel, [H] 2" 300lb RF ASME B16.5 - 316L Stainless Steel Electro-Polish, [H] 2" 300lb RF ASME B16.5 - Hastelloy C, [H] 2" 300lb RF ASME B16.5 - Monel 400, [H] 2" 300lb RF ASME B16.5 - Titanium Grade 2, [4] DIN DN40 PN40 EN 1092-1 Type B1, 316L Stainless Steel, [5] DIN DN50 PN16 EN 1092-1 Type B1, 316L Stainless Steel, [6] DIN DN50 PN40 EN 1092-1 Type B1, 316L Stainless Steel, [J] Flat Duct Stainless Steel Flange w/ 3/4" FNPT, [W] Customer Specified Special |
| Insertion Length | [1] 1.2" | 30mm - 316L Stainless Steel, [2] 2" | 51mm - 316L Stainless Steel, [3] 4" | 102mm - 316L Stainless Steel, [4] 6" | 152mm - 316L Stainless Steel, [5] 9" | 229mm - 316L Stainless Steel, [6] 12" | 305mm - 316L Stainless Steel, [7] 18" | 457mm - 316L Stainless Steel, [1] 1.2" | 30mm - 316L Stainless Steel Electro-Polish, [2] 2" | 51mm - 316L Stainless Steel Electro-Polish, [3] 4" | 102mm - 316L Stainless Steel Electro-Polish, [4] 6" | 152mm - 316L Stainless Steel Electro-Polish, [5] 9" | 229mm - 316L Stainless Steel Electro-Polish, [6] 12" | 305mm - 316L Stainless Steel Electro-Polish, [7] 18" | 457mm - 316L Stainless Steel Electro-Polish, [1] 1.2" | 30mm - Hastelloy C, [2] 2" | 51mm - Hastelloy C, [3] 4" | 102mm - Hastelloy C, [4] 6" | 152mm - Hastelloy C, [5] 9" | 229mm - Hastelloy C, [6] 12" | 305mm - Hastelloy C, [7] 18" | 457mm - Hastelloy C, [1] 1.2" | 30mm - Monel 400, [2] 2" | 51mm - Monel 400, [3] 4" | 102mm - Monel 400, [4] 6" | 152mm - Monel 400, [5] 9" | 229mm - Monel 400, [6] 12" | 305mm - Monel 400, [7] 18" | 457mm - Monel 400, [1] 1.2" | 30mm - Titanium Grade 2, [2] 2" | 51mm - Titanium Grade 2, [3] 4" | 102mm - Titanium Grade 2, [4] 6" | 152mm - Titanium Grade 2, [5] 9" | 229mm - Titanium Grade 2, [6] 12" | 305mm - Titanium Grade 2, [7] 18" | 457mm - Titanium Grade 2, [W] Customer Specified Special |
| Local Enclosure | [C] Aluminum; One (1) 1″ NPT Cable Entry, [H] Aluminum; Two (2) 1/2" NPT Cable Entries, [J] Aluminum; Two (2) M20 Cable Entries, [E] Stainless Steel; One (1) 1" NPT Cable Entry, [B] No Enclosure; Sensor Element Only with Wire Pigtails, [W] Customer Specified Special |
| Configuration | [4] Single Channel, Dual Alarm with Epoxy Sealed 6amp at 115 VAC Relay Contacts; Surface Mount Electronics, [5] Hermetically Sealed 0.5amp at 115 VAC Relay Gold Contacts; Surface Mount Electronics, [W] Customer Specified Special |
| Alarm No. 1 | [A] Flow Service: Gas, [B] Flow Service: Liquid, [C] Level Service: Wet/Dry, [D] Level Interface Service: Wet/Wet, [E] Temperature Service: Temperature |
| Alarm No. 2 | [0] Not Required, [A] Flow Service: Gas, [B] Flow Service: Liquid, [C] Level Service: Wet/Dry, [D] Level Interface Service: Wet/Wet, [E] Temperature Service: Temperature |
| Application Specific Setup & Calibration | [0] Not Required, [1] Jumper Selection Only, [3] Jumper Selection & Adjustment of 1 Alarm Setpoint in Air or Water, [4] Jumper Selection & Adjustment of 2 Alarm Setpoints in Air or Water, [8] Jumper Selection, Air Flow Curve from 0SFPS to 120SFPS [36.6Nm/s] & Adjustment of 2 Alarm Setpoints, [9] Jumper Selection, Water Flow Curve from 0SFPS to 3SFPS [0.91Nm/s] & Adjustment of 2 Alarm Setpoints, [W] Customer Specified Special |
| Remote Enclosure | [0] Not Required, [B] Aluminum; Two (2) 1" NPT Cable Entry, [H] Aluminum; Two (2) 1/2" NPT & One (1) 1" NPT Cable Entries, [J] Aluminum; Two (2) M20 & One (1) 1" NPT Cable Entries, [C] Stainless Steel; Two (2) 1" NPT Cable Entry, [F] No Enclosure; Panel Mounted Control Circuit, [W] Customer Specified Special |
| Cable Jacket | [0] Not Required, [1] PVC; 190°F | 90°C Max Ambient Temperature, [2] Teflon; 300°F | 150°C Max Ambient Temperature, [W] Customer Specified Special |
| Cable Length | [0] Not Required, [1] 10ft | 3m PVC, [2] 25ft | 7.5m PVC, [3] 50ft | 15m PVC, [1] 10ft | 3m Teflon, [2] 25ft | 7.5m Teflon, [3] 50ft | 15m Teflon, [W] Customer Specified Special |
