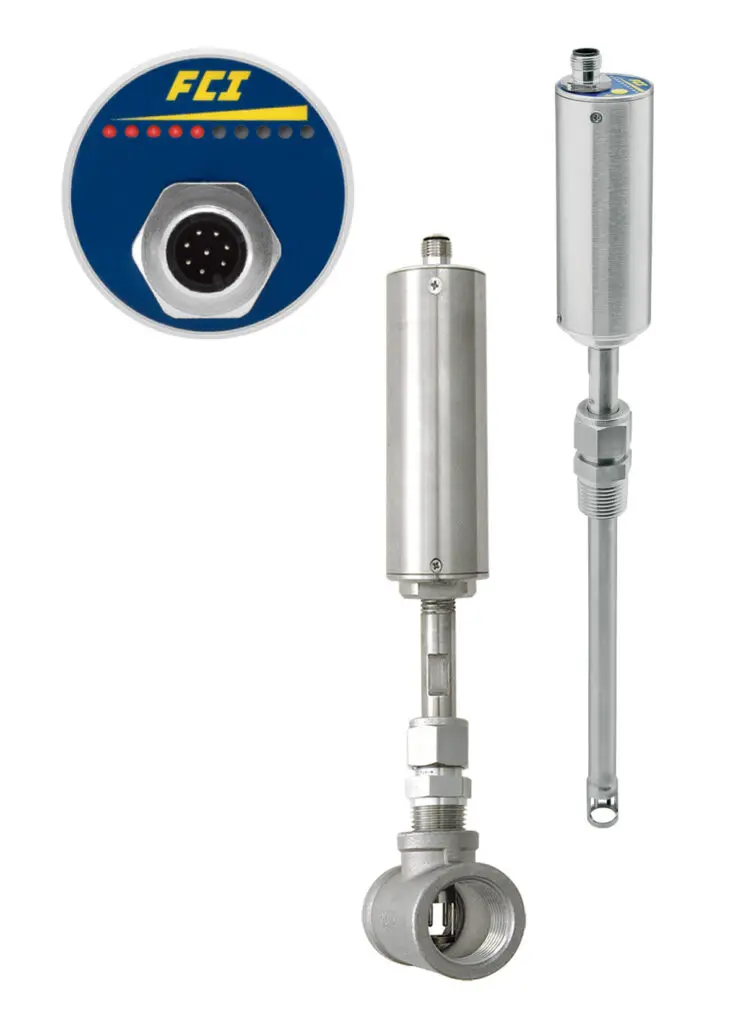

FCI FS10i Flow Meter
The FS10i is a compact, economical solution to air/compressed air and natural gas flow metering. It is the first, and currently only, thermal mass flow meter to meet SIL 2. Utilizing application proven thermal mass flow technology, the FS10i provides a highly accurate and repeatable linearized 4-20 mA output of flow rate. Additionally, for applications benefiting from a high or low flow alarm point, the FS10i includes a user programmable 1A SPDT relay output.
FS10i Flow Meter Features
- Direct Mass Flow Measurement
- Ultra Reliable, No Moving Parts Design
- User-Programmable 4-20 mA Output and Relay Trip Point
- Easy Set-Up Via Serial I/O to PC Interface
- 10 LED Display Array
- Easy M12 or Cable Gland Connection With Electronics
- SIL 2 Compliance Rating
- Optional Div 2 / Zone 2+Zone 22 Approvals
The FS10i is a compact, economical solution to air/compressed air and natural gas flow metering. It is the first, and currently only, thermal mass flow meter to meet SIL 2. Utilizing application proven thermal mass flow technology, the FS10i provides a highly accurate and repeatable linearized 4-20 mA output of flow rate. Additionally, for applications benefiting from a high or low flow alarm point, the FS10i includes a user programmable 1A SPDT relay output.
FS10i Flow Meter Features
- Direct Mass Flow Measurement
- Ultra Reliable, No Moving Parts Design
- User-Programmable 4-20 mA Output and Relay Trip Point
- Easy Set-Up Via Serial I/O to PC Interface
- 10 LED Display Array
- Easy M12 or Cable Gland Connection With Electronics
- SIL 2 Compliance Rating
- Optional Div 2 / Zone 2+Zone 22 Approvals
Specifications
| Connection Style | In-Line, Insertion |
| Gas Type | Air, Natural Gas |
| Process Connection & U-Length | [L] In-Line; 1" FNPT; 150 lb. Pipe Tee, [M] In-Line; 2" FNPT; 150 lb. Pipe Tee, [E] 1/2" NPT Compression Fitting with Teflon Ferrule; 6" [150mm] Length, [F] 1/2" NPT Compression Fitting with Metal Ferrule; 6" [150mm] Length, [J] 1/2" NPT Compression Fitting with Teflon Ferrule; 12" [150mm] Length, [K] 1/2" NPT Compression Fitting with Metal Ferrule; 12" [150mm] Length |
| Power & Signal Connection Type | [2] M12 Connector, [1] Fixed, Watertight Cable Gland to Wire Pigtail; 15ft |
| Gas Medium & Calibration | [B] In-Line; Air, [H] In-Line; Compressed Air, [1] In-Line; Natural Gas (1 SCFM to 50 SCFM), [2] In-Line; Natural Gas (2 SCFM to 200 SCFM), [A] Insertion; Air, [5] Insertion; Air w/ Extended Temperature Compensation, [7] Insertion; Compressed Air, [6] Insertion; Compressed Air w/ Extended Temperature Compensation, [3] Insertion; Natural Gas (1.25 SFPS to 125 SFPS), [4] Insertion; Natural Gas (4 SFPS to 400 SFPS) |
| Agency Approval | [0] CE Mark Only, [1] FM, FMc, [3] ATEX, IECEx |
| SS Tag Plate | Without, [SST1] 2.50 x 0.75"|63.5 x 19.1mm; 2 Lines, [SST2] 2.50 x 0.75"|63.5 x 19.1mm; 3 Lines, [SST3] 2.50 x 1.50"|63.5 x 38.1mm; 6 Lines, [SST4] 3.00 x 1.50"|76.2 x 38.1mm; 6 Lines, [SST5] 3.40 x 1.85"|86.4 x 47.0mm; 6 Lines |
