Representative photo. Please check item description for details.

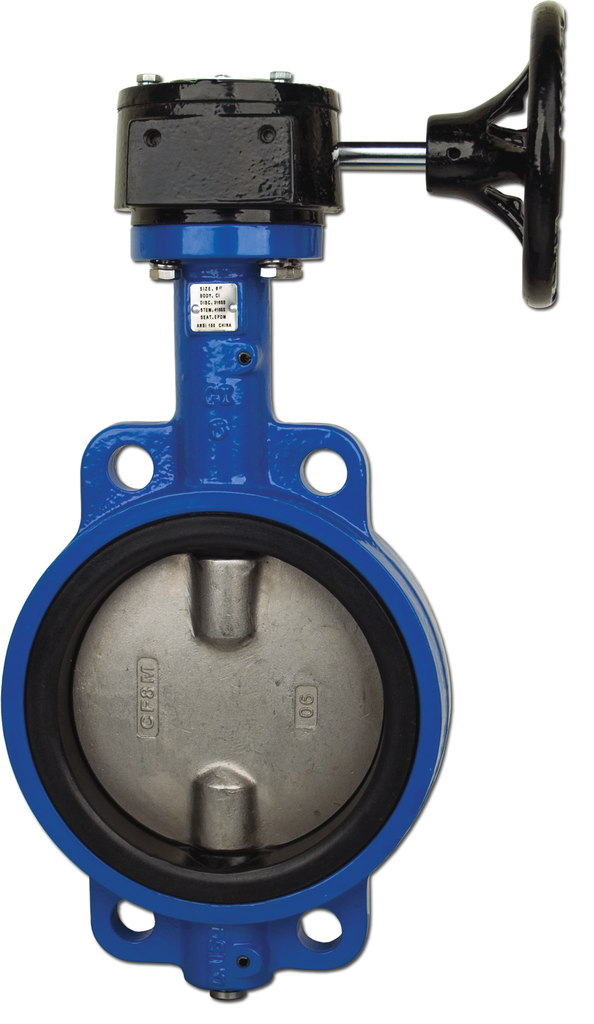

GN500S Butterfly Valve Series Gear Operated NSF Approved Rubber-Lined Wafer-Style Butterfly Valve w/ Nylon-Coated SS Disc
GN500N Butterfly Valve Series gear operated Wafer butterfly valves full port.
Features
- Epoxy coated cast iron wafer body.
- Pressure rating: 250psi water (40°F to 80°F).
- Food grade EPDM resilient seat -30°F to 250°F.
- Low turn ratio.
- API609 face to face flange.
- Floating dual shaft disc design.
- IP54 enclosure.
- MSS SP 67 compliant.
- No pins in disc prevent potential leak points.
- NSF certified for drinking water service (EPDM seats only).
- Dead end service to 100 psi.
Model Details
- G530S: VITON® SEATS - size 2" to 12".
- G540S: BUNA-N SEATS - size 12" to 12".
GN500N Butterfly Valve Series gear operated Wafer butterfly valves full port.
Features
- Epoxy coated cast iron wafer body.
- Pressure rating: 250psi water (40°F to 80°F).
- Food grade EPDM resilient seat -30°F to 250°F.
- Low turn ratio.
- API609 face to face flange.
- Floating dual shaft disc design.
- IP54 enclosure.
- MSS SP 67 compliant.
- No pins in disc prevent potential leak points.
- NSF certified for drinking water service (EPDM seats only).
- Dead end service to 100 psi.
Model Details
- G530S: VITON® SEATS - size 2" to 12".
- G540S: BUNA-N SEATS - size 12" to 12".
Specifications
| Valve Size | 1-1/2", 2" , 2-1/2" , 3" , 4" , 5", 6", 8" , 10" , 12", 14", 16", 18", 20", 24" |
| Model | [GN500S] SS Disc |
