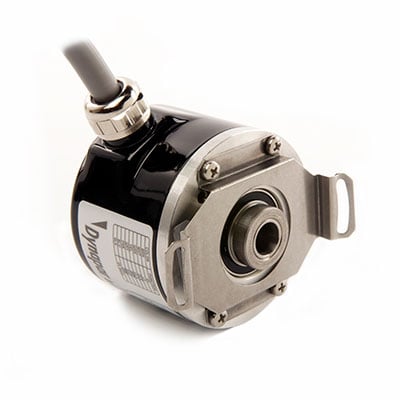

Representative photo. Please check item description for details.
Description
The Dynapar brand Series H20 Hub Shaft encoder is a rugged, reliable and economical encoder for direct coupling to motors or machine shafts.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 3.1
- Mounting Configuration: Servo
Mechanical
- Connection Location: Axial
- Connection Type: Connector
- Disk Material: Mylar
- Flange Material: Aluminum
- Housing Material: Aluminum
- Maximum Operating Speed (RPM): 5000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 9.525
- Shaft Type: Hub Shaft
- Starting Torque (Ncm): 2.12
- Termination: 10 Pin MS
Electrical
- Duty Cycle: 45-55%
- Incremental Signal Format: A Leads B CCW viewed from Shaft end of Encoder
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 100
- Output Signal: 5-26 VDC
- Resolution (PPR): 300
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
Environmental
- Hazardous Area Rating: [None]
- Hazardous Area Rating Certification: [None]
- Housing Protection Level: IP54;NEMA12
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 70
- Maximum Storage Temperature (°C): 90
- Minimum Operating Temperature (°C): 0
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 50G, 11msec
- Vibration Resistance: 20G, 5-2000Hz
