Description

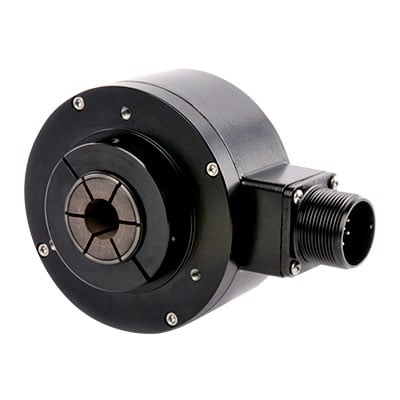

The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 5.3
Mechanical
- Connection Location: Radial
- Connection Type: Connector
- Disk Material: Aluminum
- Fixing: Slotted tether (to fit standard AC motor fan cover)
- Flange Material: Powder Coated Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 12.7
- Shaft Type: Hollow Shaft
- Special Shaft Feature: Electrically Isolated Shaft
- Starting Torque (Ncm): 5.65
- Termination: 10 Pin MS
Electrical
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 7272 1
1. Encoder Line Drivers | Dynaparwww.dynapar.com
- Maximum Frequency Response (KHz): 125
- Output Signal: 5-26 VDC
- Resolution (PPR): 1024
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
Environmental
- Approvals / Certifications: [CE, ROHS]
- Hazardous Area Rating: [None]
- Hazardous Area Rating Certification: [None]
- Housing Protection Level: IP67
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 85
- Maximum Storage Temperature (°C): 100
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 400G, 6msec
- Vibration Resistance: 20G, 5-3000Hz
