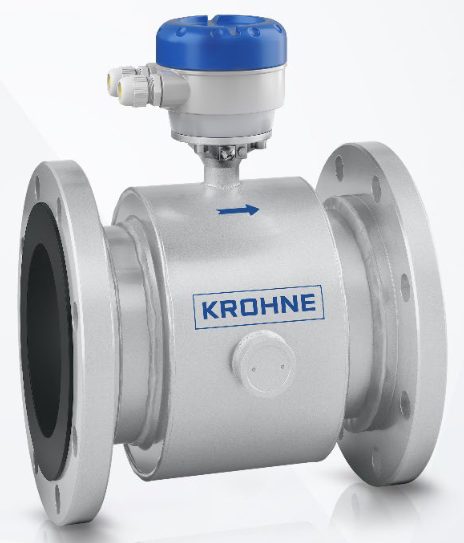

Representative photo. Please check item description for details.
KROHNE Enviromag 2000 Water/Wastewater Electromagnetic Flow Sensor
The ENVIROMAG 2000 is an electromagnetic flowmeter. The magmeter is the optimum solution for North American water and wastewater measurement applications. Its design and performance makes it the instrument of choice for flow measurement throughout the process.
The ENVIROMAG 2000 is an electromagnetic flowmeter. The magmeter is the optimum solution for North American water and wastewater measurement applications. Its design and performance makes it the instrument of choice for flow measurement throughout the process.
Specifications
| Flow Sensor Tube | [VB15] Krohne Standard, [SB15] Krohne Special - Offer Number: |
| Customization | [4] Krohne Standard, [9] Customer Specified: |
| Nominal Diameter | [E] DN200 | 8", [F] DN250 | 10", [G] DN300 | 12", [H] DN350 | 14", [K] DN400 | 16", [L] DN450 | 18", [M] DN500 | 20", [N] DN600 | 24" |
| Nominal Pressure | [A] 150 lb RF ASME B 16.5, [B] 300 lb RF ASME B 16.5, [X] AWWA C207 Class B, [W] AWWA C207 Class D |
| Ex Approval | [0] without, [A] CSA Ordinary Location |
| Design | [0] Compact Converter with Aluminum Housing, [2] Compact Converter with Stainless Steel Housing, [4] Remote Converter with Aluminum Junction Box - 1/2" NPT, [A] Remote Converter with Stainless Steel Junction Box - 1/2" NPT |
| Converter Model | [3] IFC 100 C - Compact Mount, [4] IFC 100 W - Wall Mount, [C] IFC 300 C - Compact Mount, [D] IFC 300 F - Field Mount, [E] IFC 300 W - Wall Mount, [F] IFC 300 R - Rack Mount, [K] IFC 050 C - Compact Mount, [L] IFC 050 W - Wall Mount |
| Lining | [0] Hard Rubber, [D] Polyurethane - 8", [D] Polyurethane - 10", [D] Polyurethane - 12", [D] Polyurethane - 14", [D] Polyurethane - 16", [D] Polyurethane - 18", [D] Polyurethane - 20", [D] Polyurethane - 24" |
| Electrodes | [B] Hastelloy C22, [2] Stainless Steel 1.4401|316, [4] Hastelloy B2, [5] Tantalum, [6] Titanium, [7] Platinum |
| Electrode Construction | [2] Exchangeable, [2] non-Exchangeable |
| Housing / Flange Material | [1] Sheet Steel / Carbon Steel 8", [2] Sheet Steel / Stainless Steel 1.4306|304L - 8", [3] Sheet Steel / Stainless Steel 1.4404|316L - 8", [1] Sheet Steel / Carbon Steel 10", [2] Sheet Steel / Stainless Steel 1.4306|304L - 10", [3] Sheet Steel / Stainless Steel 1.4404|316L - 10", [1] Sheet Steel / Carbon Steel 12", [2] Sheet Steel / Stainless Steel 1.4306|304L - 12", [3] Sheet Steel / Stainless Steel 1.4404|316L - 12", [1] Sheet Steel / Carbon Steel 14", [2] Sheet Steel / Stainless Steel 1.4306|304L - 14", [3] Sheet Steel / Stainless Steel 1.4404|316L - 14", [1] Sheet Steel / Carbon Steel 16", [2] Sheet Steel / Stainless Steel 1.4306|304L - 16", [3] Sheet Steel / Stainless Steel 1.4404|316L - 16", [1] Sheet Steel / Carbon Steel 18", [2] Sheet Steel / Stainless Steel 1.4306|304L - 18", [3] Sheet Steel / Stainless Steel 1.4404|316L - 18", [1] Sheet Steel / Carbon Steel 20", [2] Sheet Steel / Stainless Steel 1.4306|304L - 20", [3] Sheet Steel / Stainless Steel 1.4404|316L - 20", [1] Sheet Steel / Carbon Steel 24", [1] Sheet Steel / Carbon Steel 8" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 8" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 8" Class 300, [1] Sheet Steel / Carbon Steel 10" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 10" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 10" Class 300, [1] Sheet Steel / Carbon Steel 12" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 12" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 12" Class 300, [1] Sheet Steel / Carbon Steel 14" Class 300, [1] Sheet Steel / Carbon Steel 16" Class 300, [1] Sheet Steel / Carbon Steel 18" Class 300, [1] Sheet Steel / Carbon Steel 20" AWWA Class B, [1] Sheet Steel / Carbon Steel 24" AWWA Class B, [1] Sheet Steel / Carbon Steel 18" AWWA Class D, [1] Sheet Steel / Carbon Steel 20" AWWA Class D, [1] Sheet Steel / Carbon Steel 24" AWWA Class D |
| Protection Class | [0] IP66/67, [2] IP68 |
| Signal Cable | [0] none - Compact Converter, [0] DS - Double Shielded, [1] BTS - Triple Shielded |
| Cable Length | [0] none - Compact Converter, [0] 15ft DS Signal Cable, [1] 30ft DS Signal Cable, [2] 45ft DS Signal Cable, [3] 60ft DS Signal Cable, [4] 75ft DS Signal Cable, [5] 90ft DS Signal Cable, [6] 120ft DS Signal Cable, [7] 150ft DS Signal Cable, [8] 300ft DS Signal Cable, [0] 15ft DS Signal Cable + LIYCY Coil Power Cable, [1] 30ft DS Signal Cable + LIYCY Coil Power Cable, [2] 45ft DS Signal Cable + LIYCY Coil Power Cable, [3] 60ft DS Signal Cable + LIYCY Coil Power Cable, [4] 75ft DS Signal Cable + LIYCY Coil Power Cable, [5] 90ft DS Signal Cable + LIYCY Coil Power Cable, [6] 120ft DS Signal Cable + LIYCY Coil Power Cable, [7] 150ft DS Signal Cable + LIYCY Coil Power Cable, [8] 300ft DS Signal Cable + LIYCY Coil Power Cable |
| Calibration | [0] 2-Point Calibration, [1] 2-Point Calibration w/ 304 SS Tagplate (67 x 25mm), [2] 2-Point Calibration w/ 316 SS Tagplate (120 x 46mm), [3] 2-Point Calibration w/ 316 SS Tagplate (67 x 25mm) |
| Grounding Ring (x2) | [0] without, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 8", [2] Grounding Ring #1 / Hastelloy C4 - 8", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 8", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 10", [2] Grounding Ring #1 / Hastelloy C4 - 10", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 10", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 12", [2] Grounding Ring #1 / Hastelloy C4 - 12", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 12", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 14", [2] Grounding Ring #1 / Hastelloy C4 - 14", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 14", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 16", [2] Grounding Ring #1 / Hastelloy C4 - 16", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 16", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 18", [2] Grounding Ring #1 / Hastelloy C4 - 18", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 18", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 20", [2] Grounding Ring #1 / Hastelloy C4 - 20", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 20", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 24", [2] Grounding Ring #1 / Hastelloy C4 - 24", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 24", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 8" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 8" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 8" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 10" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 10" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 10" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 12" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 12" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 12" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 14" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 14" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 14" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 16" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 16" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 16" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 18" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 18" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 18" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 20" AWWA Class B, [2] Grounding Ring #1 / Hastelloy C4 - 20" AWWA Class B, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 20" AWWA Class B, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 24" AWWA Class B, [2] Grounding Ring #1 / Hastelloy C4 - 24" AWWA Class B, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 24" AWWA Class B, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 18" AWWA Class D, [2] Grounding Ring #1 / Hastelloy C4 - 18" AWWA Class D, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 18" AWWA Class D, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 20" AWWA Class D, [2] Grounding Ring #1 / Hastelloy C4 - 20" AWWA Class D, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 20" AWWA Class D, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 24" AWWA Class D, [2] Grounding Ring #1 / Hastelloy C4 - 24" AWWA Class D, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 24" AWWA Class D |
| Finish | [0] Standard, [5] Direct Burial Coating - 8", [5] Direct Burial Coating - 10", [5] Direct Burial Coating - 12", [5] Direct Burial Coating - 14", [5] Direct Burial Coating - 16", [5] Direct Burial Coating - 18", [5] Direct Burial Coating - 20", [5] Direct Burial Coating - 24" |
| Markings | [0] Krohne Blue |
| Construction Requirements | [0] Standard |
| QA/QC Requirements | [0] Standard |
| Extended Nominal Diameter | [0] without |
| Ratio of CT-Calibration | [0] Standard |
| Instruction Language | [0] English |
| Tag Plate | [0] Standard |
| Destination | [0] Standard |
| Flange Material | [0] Standard |
| Reserve Option | [0] without |
