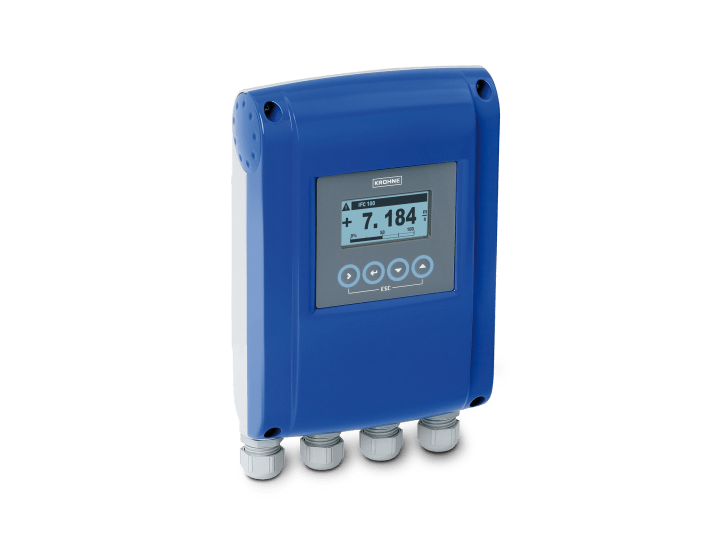

![KROHNE IFC 100 Electromagnetic Flow Signal Converter - [VN314]](/web/image/product.product/545799/image_1024/%5BVN3146A0460D10100003%5D%20KROHNE%20IFC%20100%20Electromagnetic%20Flow%20Signal%20Converter%20-%20%5BVN314%5D%20%28C-Compact%20%2845%EC%A7%B8%29%20for%20Horizontal%20Pipes%2C%2085-250%20VAC%2C%20None%20-%20General%20Purpose%2C%201-2%22%20NPT%2C%20Empty%20Pipe%20Detection%2C%20Die-Cast%20Aluminum%20%28Polyurethane%20Coated%29%2C%20Without%29?unique=aa7f2be)
Description
Signal converter for electromagnetic flowmeters
- Extended accuracy option
- Diagnostics of device and application
Highlights
- For operation with a wide range of OPTIFLUX and WATERFLUX flow sensors
- For flow sensors over a diameter range from DN2.5 up to DN1200
- Housing in aluminium with a polyester topcoat or in stainless steel (option)
- Tropicalized electronics to protect it from humidity (option)
- Available outputs: 4...20 mA current output, pulse/frequency output and status output/limit switch
- Control input option
- HART® as standard
- Power supply via 100…230 VAC (standard) or 24 VDC or 24 VAC/DC (optional)
- Clearly readable values due to angle of the signal converter housing which prevents dirt and dust on the display
- Extended calibration option for higher measuring accuracy down to 0.2% of the measuring value
- Excellent price/performance ratio
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Type | C-Compact (45째) for Horizontal Pipes, C-Compact (0째) for Vertical Pipes, W-Wall Mount |
| Power Supply | 85-250 VAC, 12-24 VDC, 19-29 V DC/AC |
| Hazardous Area Approvals | None / General Purpose, cFMus Class 1 DIV 2, CSA Ordinary Location |
| Cable Connection | 1/2" NPT, M20 x 1.5 |
| Process Diagnostics | Empty Pipe Detection, Tropicalized electronics for General Purpose only, Standard, Pulse Output Board |
| Converter Housing | Die-Cast Aluminum (Polyurethane Coated), 316 Stainless Steel, Die-Cast Aluminum (Polyurethane Coated - Schneider Green), 316 Stainless Steel - Schneider Branding |
| Tag Plate | Without, 316SS (120x46mm), 316SS (67x25mm) |
| Outputs | 4-20 mA/HART + pulse/frequency + status |
