Description

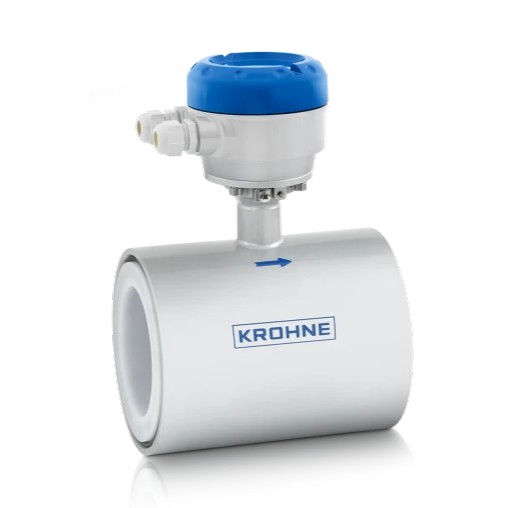

The OPTIFLUX 1000 is an sandwich-style electromagnetic flow sensor for basic applications.
Specifications
| Nominal Diameter | DN 10 | 3/8", DN 15 | 1/2", DN 25 | 1", DN 40 | 1-1/2", DN 50 | 2", DN 80 | 3", DN 100 | 4", DN 150 | 6" |
| Nominal Pressure | 150 lb ASME B 16.5 (max working pressure 232psi), 300 lb ASME B 16.5 (max working pressure 232psi) |
| Ex Approvals | non Ex, FM CLASS I DIV 2, cCSAus OL, CSA Class I DIV 2 |
| System Design | Compact w/Std Neck (for Aluminum Converters), Compact w/Std Neck (for Stainless Steel Converters), Remote Converter w/ Aluminum Connection Box - 1/2" NPT, Remote Converter w/ Aluminum Connection Box - M20 x 1.5, Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter Model | IFC 100 C (Compact), IFC 100 W (Wall Mount), IFC 300 C (Compact), IFC 300 F (Field Mount), IFC 300 W (Wall Mount), IFC 300 R (Rack Mount), IFC 050 C (Compact), IFC 050 W (Wall Mount) |
| Mounting Material | Rubber Sleeves, Galv. Steel / Rubber Sleeves (<1" Class 150), A2 St. Steel / Rubber Sleeves (<1" Class 150), Galv. Steel / Rubber Sleeves (1" Class 150), A2 St. Steel / Rubber Sleeves (1" Class 150), Galv. Steel / Rubber Sleeves (1-1/2" Class 150), A2 St. Steel / Rubber Sleeves (1-1/2" Class 150), Galv. Steel / Rubber Sleeves (2" Class 150), A2 St. Steel / Rubber Sleeves (2" Class 150), Galv. Steel / Rubber Sleeves (3" Class 150), A2 St. Steel / Rubber Sleeves (3" Class 150), Galv. Steel / Rubber Sleeves (4" Class 150), A2 St. Steel / Rubber Sleeves (4" Class 150), Galv. Steel / Rubber Sleeves (6" Class 150), A2 St. Steel / Rubber Sleeves (6" Class 150), Galv. Steel / Rubber Sleeves (<1" Class 300), A2 St. Steel / Rubber Sleeves (<1" Class 300), Galv. Steel / Rubber Sleeves (1" Class 300), A2 St. Steel / Rubber Sleeves (1" Class 300), Galv. Steel / Rubber Sleeves (1-1/2" Class 300), A2 St. Steel / Rubber Sleeves (1-1/2" Class 300), Galv. Steel / Rubber Sleeves (2" Class 300), A2 St. Steel / Rubber Sleeves (2" Class 300), Galv. Steel / Rubber Sleeves (3" Class 300), A2 St. Steel / Rubber Sleeves (3" Class 300), Galv. Steel / Rubber Sleeves (4" Class 300), A2 St. Steel / Rubber Sleeves (4" Class 300), Galv. Steel / Rubber Sleeves (6" Class 300) |
| Grounding Ring (x2) | without, <1" Stainless Steel DIN 1.4404|316 L, 1" Stainless Steel DIN 1.4404|316 L, 1-1/2" Stainless Steel DIN 1.4404|316 L, 2" Stainless Steel DIN 1.4404|316 L, 3" Stainless Steel DIN 1.4404|316 L, 4" Stainless Steel DIN 1.4404|316 L, 6" Stainless Steel DIN 1.4404|316 L |
| Cable Length | Compact - None, 5m | 15 ft DS Signal + LIYCY Coil Power Cable, 10m | 30 ft DS Signal + LIYCY Coil Power Cable, 15m | 45 ft DS Signal + LIYCY Coil Power Cable, 20m | 60 ft DS Signal + LIYCY Coil Power Cable, 25m | 75 ft DS Signal + LIYCY Coil Power Cable, 30m | 90 ft DS Signal + LIYCY Coil Power Cable, 40m | 120 ft DS Signal + LIYCY Coil Power Cable, 50m | 150 ft DS Signal + LIYCY Coil Power Cable, 100m | 300 ft DS Signal + LIYCY Coil Power Cable, 5m | 15 ft DS Signal Cable, 10m | 30 ft DS Signal Cable, 15m | 45 ft DS Signal Cable, 20m | 60 ft DS Signal Cable, 25m | 75 ft DS Signal Cable, 30m | 90 ft DS Signal Cable, 40m | 120 ft DS Signal Cable, 50m | 150 ft DS Signal Cable, 100m | 300 ft DS Signal Cable |
| Calibrations/Tags | Standard, Standard + 316|1.4401 Tagplate (120 x 46mm), Standard + 316|1.4401 Tagplate (67 x 25mm), Custody Transfer, Custody Transfer + 316|1.4401 Tagplate (120 x 46mm), Custody Transfer + 316|1.4401 Tagplate (67 x 25mm), 3 points with water acc. ISO/IEC 17025 2 |
| Electrodes | Hastelloy C22 |
| Protection Class | IP66/67 |
