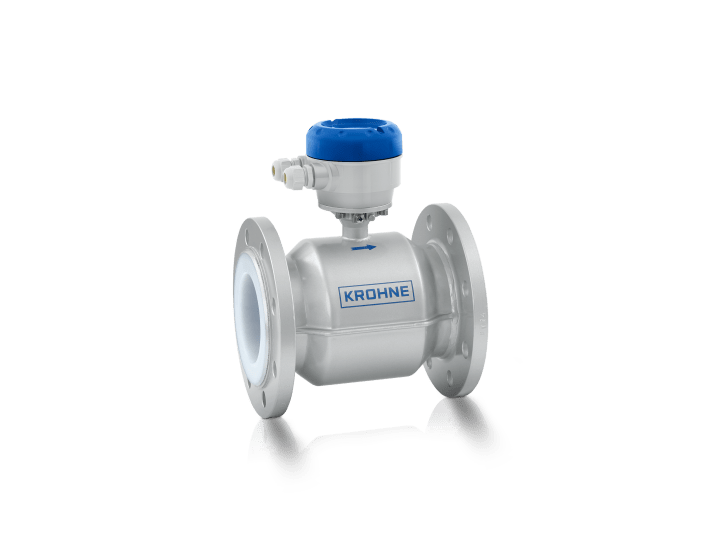

Representative photo. Please check item description for details.
KROHNE Optiflux 2000 Water/Wastewater Electromagnetic Flow Sensor - N14
Electromagnetic Flow Sensor
- For all water and wastewater applications
- Wide range of approvals for potable water
- Robust, fully welded construction with full bore pipe
Features
- Rugged liners suitable for any water and wastewater application
- Proven and unsurpassed lifetime, huge installed base
- Tamper proof, fully welded construction, also available in customer specific constructions
- Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
- Suitable for subsoil installation and constant flooding (IP68)
- Bi-directional flow metering
- Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
- Standard in house wet calibration of flow sensors up to diameter DN3000
- Easy installation and commissioning
- No grounding rings with virtual reference option on IFC 300
- In-situ verification with OPTICHECK
- Extensive diagnostic capabilities
- Maintenance-free
Electromagnetic Flow Sensor
- For all water and wastewater applications
- Wide range of approvals for potable water
- Robust, fully welded construction with full bore pipe
Features
- Rugged liners suitable for any water and wastewater application
- Proven and unsurpassed lifetime, huge installed base
- Tamper proof, fully welded construction, also available in customer specific constructions
- Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
- Suitable for subsoil installation and constant flooding (IP68)
- Bi-directional flow metering
- Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
- Standard in house wet calibration of flow sensors up to diameter DN3000
- Easy installation and commissioning
- No grounding rings with virtual reference option on IFC 300
- In-situ verification with OPTICHECK
- Extensive diagnostic capabilities
- Maintenance-free
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Flow Sensor Tube | [VN14] Krohne Standard, [SN14] Krohne Special - Offer Number: |
| Customization | [4] Krohne Standard, [9] Customer Specified: |
| Nominal Diameter | [4] DN25 | 1", [5] DN32 | 1-1/4", [6] DN40 | 1-1/2", [7] DN50 | 2", [8] DN65 | 2-1/2", [A] DN80 | 3", [B] DN100 | 4", [C] DN125 | 5", [D] DN150 | 6" |
| Nominal Pressure | [A] 150 lb RF ASME B 16.5, [B] 300 lb RF ASME B 16.5 |
| Ex Approval | [0] without, [5] FM Class 1 Div 2, [A] CSA Ordinary Location, [C] CSA Class 1 Div 2, [1] ATEX zone 1, [2] Ex zone 2, [F] IECEx zone 1 |
| Design | [1] Compact Converter with Aluminum Housing, [2] Compact Converter with Stainless Steel Housing, [4] Remote Converter with Aluminum Junction Box - 1/2" NPT, [6] Remote Converter with Aluminum Junction Box - M20x1.5, [A] Remote Converter with Stainless Steel Junction Box - 1/2" NPT, [C] Remote Converter with Stainless Steel Junction Box - M20x1.5, [R] Remote Converter with Aluminum Junction Box - 1/2" NPT 316SS |
| Converter Model | [3] IFC 100 C - Compact Mount, [4] IFC 100 W - Wall Mount, [C] IFC 300 C - Compact Mount, [D] IFC 300 F - Field Mount, [E] IFC 300 W - Wall Mount, [F] IFC 300 R - Rack Mount, [K] IFC 050 C - Compact Mount, [L] IFC 050 W - Wall Mount, [M] IFC 400 C - Compact Mount, [N] IFC 400 F - Field Mount |
| Lining | [0] Polypropylene (Potable Water Approvals), [0] PFA (Ex Approvals), [5] Hardrubber, [7] Hardrubber (Potable Water Approvals), [8] Hardrubber - PFA Construction, [T] Polypropylene - for Protection Rings (Potable Water Approvals) |
| Electrodes | [B] Hastelloy C22, [1] Stainless Steel 1.4571|316Ti, [3] Hastelloy C4, [6] Titanium |
| Housing / Flange Material | [1] Sheet Steel / Carbon Steel, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1", [A] Stainless Steel 1.4301|304 / Carbon Steel - 1", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 1", [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/4", [A] Stainless Steel 1.4301|304 / Carbon Steel - 1-1/4", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 1-1/4", [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/2", [A] Stainless Steel 1.4301|304 / Carbon Steel - 1-1/2", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 1-1/2", [3] Sheet Steel / Stainless Steel 1.4404|316L - 2", [A] Stainless Steel 1.4301|304 / Carbon Steel - 2", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 2", [3] Sheet Steel / Stainless Steel 1.4404|316L - 2-1/2", [A] Stainless Steel 1.4301|304 / Carbon Steel - 2-1/2", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 2-1/2", [3] Sheet Steel / Stainless Steel 1.4404|316L - 3", [A] Stainless Steel 1.4301|304 / Carbon Steel - 3", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 3", [3] Sheet Steel / Stainless Steel 1.4404|316L - 4", [A] Stainless Steel 1.4301|304 / Carbon Steel - 4", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 4", [3] Sheet Steel / Stainless Steel 1.4404|316L - 5", [A] Stainless Steel 1.4301|304 / Carbon Steel - 5", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 5", [3] Sheet Steel / Stainless Steel 1.4404|316L - 6", [A] Stainless Steel 1.4301|304 / Carbon Steel - 6", [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 6", [1] Sheet Steel / Carbon Steel - 1" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 1" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 1" Class 300, [1] Sheet Steel / Carbon Steel - 1-1/4" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 1-1/4" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [1] Sheet Steel / Carbon Steel - 1-1/2" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 1-1/2" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [1] Sheet Steel / Carbon Steel - 2" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 2" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 2" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 2" Class 300, [1] Sheet Steel / Carbon Steel - 2-1/2" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 2-1/2" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [1] Sheet Steel / Carbon Steel - 3" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 3" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 3" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 3" Class 300, [1] Sheet Steel / Carbon Steel - 4" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 4" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 4" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 4" Class 300, [1] Sheet Steel / Carbon Steel - 5" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 5" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 5" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 5" Class 300, [1] Sheet Steel / Carbon Steel - 6" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 6" Class 300, [A] Stainless Steel 1.4301|304 / Carbon Steel - 6" Class 300, [C] Stainless Steel 1.4301|304 / Stainless Steel 1.4404|316L - 6" Class 300 |
| Protection Class / Dimension | [0] IP66/67, [2] IP68, [1] IP68 Field, [3] IP66/67 / Length acc. to ISO 13359, [4] IP68 Field / Length acc. To ISO 13359, [5] IP68 / Length acc. To ISO 13359 |
| Signal Cable | [0] none - Compact Converter, [0] DS - Double Shielded, [1] BTS - Triple Shielded, [2] LIYCY, [4] DS Armoured - Double Shielded |
| Cable Length | [0] none - Compact Converter, [0] 5m | 15ft DS Signal Cable, [1] 10m | 30ft DS Signal Cable, [2] 15m | 45ft DS Signal Cable, [3] 20m | 60ft DS Signal Cable, [4] 25m | 75ft DS Signal Cable, [5] 30m | 90ft DS Signal Cable, [6] 40m | 120ft DS Signal Cable, [7] 50m | 150ft DS Signal Cable, [8] 100m | 300ft DS Signal Cable, [0] 5m | 15ft DS Signal Cable + Coil Power Cable, [1] 10m | 30ft DS Signal Cable + Coil Power Cable, [2] 15m | 45ft DS Signal Cable + Coil Power Cable, [3] 20m | 60ft DS Signal Cable + Coil Power Cable, [4] 25m | 75ft DS Signal Cable + Coil Power Cable, [5] 30m | 90ft DS Signal Cable + Coil Power Cable, [6] 40m | 120ft DS Signal Cable + Coil Power Cable, [7] 50m | 150ft DS Signal Cable + Coil Power Cable, [8] 100m | 300ft DS Signal Cable + Coil Power Cable |
| Calibration | [0] 2-Point Calibration, [2] 2-Point Calibration w/ 316 SS Tagplate (120 x 46mm), [3] 2-Point Calibration w/ 316 SS Tagplate (67 x 25mm), [A] Custody Transfer , [C] Custody Transfer w/ 316 SS Tagplate (120 x 46mm), [D] Custody Transfer w/ 316 SS Tagplate (67 x 25mm), [H] 3-Point w/ Water acc. to ISO/IEC 17025, [R] Extended Calibration , [S] Extended Calibration w/ 316 SS Tagplate (120 x 46mm), [T] Extended Calibration w/ 316 SS Tagplate (67 x 25mm) |
| Grounding Ring (x2) | [0] without, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1", [5] Grounding Ring #1 / Titanium - 1", [7] Grounding Ring #1 / Hastelloy C22 - 1", [D] Insertion Ring #3 / Titanium - 1", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1", [F] Insertion Ring #3 / Hastelloy C22 - 1", [N] Protection Ring #2 / Titanium - 1", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 1", [R] Protection Ring #2 / Hastelloy C22 - 1", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/4", [5] Grounding Ring #1 / Titanium - 1-1/4", [7] Grounding Ring #1 / Hastelloy C22 - 1-1/4", [D] Insertion Ring #3 / Titanium - 1-1/4", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/4", [F] Insertion Ring #3 / Hastelloy C22 - 1-1/4", [N] Protection Ring #2 / Titanium - 1-1/4", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 1-1/4", [R] Protection Ring #2 / Hastelloy C22 - 1-1/4", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/2", [5] Grounding Ring #1 / Titanium - 1-1/2", [7] Grounding Ring #1 / Hastelloy C22 - 1-1/2", [D] Insertion Ring #3 / Titanium - 1-1/2", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/2", [F] Insertion Ring #3 / Hastelloy C22 - 1-1/2", [N] Protection Ring #2 / Titanium - 1-1/2", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 1-1/2", [R] Protection Ring #2 / Hastelloy C22 - 1-1/2", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2", [5] Grounding Ring #1 / Titanium - 2", [7] Grounding Ring #1 / Hastelloy C22 - 2", [D] Insertion Ring #3 / Titanium - 2", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2", [F] Insertion Ring #3 / Hastelloy C22 - 2", [N] Protection Ring #2 / Titanium - 2", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 2", [R] Protection Ring #2 / Hastelloy C22 - 2", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2-1/2", [5] Grounding Ring #1 / Titanium - 2-1/2", [7] Grounding Ring #1 / Hastelloy C22 - 2-1/2", [D] Insertion Ring #3 / Titanium - 2-1/2", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2-1/2", [F] Insertion Ring #3 / Hastelloy C22 - 2-1/2", [N] Protection Ring #2 / Titanium - 2-1/2", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 2-1/2", [R] Protection Ring #2 / Hastelloy C22 - 2-1/2", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 3", [5] Grounding Ring #1 / Titanium - 3", [7] Grounding Ring #1 / Hastelloy C22 - 3", [D] Insertion Ring #3 / Titanium - 3", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 3", [F] Insertion Ring #3 / Hastelloy C22 - 3", [N] Protection Ring #2 / Titanium - 3", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 3", [R] Protection Ring #2 / Hastelloy C22 - 3", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 4", [5] Grounding Ring #1 / Titanium - 4", [7] Grounding Ring #1 / Hastelloy C22 - 4", [D] Insertion Ring #3 / Titanium - 4", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 4", [F] Insertion Ring #3 / Hastelloy C22 - 4", [N] Protection Ring #2 / Titanium - 4", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 4", [R] Protection Ring #2 / Hastelloy C22 - 4", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 5", [5] Grounding Ring #1 / Titanium - 5", [7] Grounding Ring #1 / Hastelloy C22 - 5", [D] Insertion Ring #3 / Titanium - 5", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 5", [F] Insertion Ring #3 / Hastelloy C22 - 5", [N] Protection Ring #2 / Titanium - 5", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 5", [R] Protection Ring #2 / Hastelloy C22 - 5", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 6", [5] Grounding Ring #1 / Titanium - 6", [7] Grounding Ring #1 / Hastelloy C22 - 6", [D] Insertion Ring #3 / Titanium - 6", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 6", [F] Insertion Ring #3 / Hastelloy C22 - 6", [N] Protection Ring #2 / Titanium - 6", [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 6", [R] Protection Ring #2 / Hastelloy C22 - 6", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1" Class 300, [N] Protection Ring #2 / Titanium - 1" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 1" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 1" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [N] Protection Ring #2 / Titanium - 1-1/4" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 1-1/4" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [N] Protection Ring #2 / Titanium - 1-1/2" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 1-1/2" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2" Class 300, [N] Protection Ring #2 / Titanium - 2" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 2" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 2" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [N] Protection Ring #2 / Titanium - 2-1/2" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 2-1/2" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 3" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 3" Class 300, [N] Protection Ring #2 / Titanium - 3" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 3" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 3" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 4" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 4" Class 300, [N] Protection Ring #2 / Titanium - 4" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 4" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 4" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 5" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 5" Class 300, [N] Protection Ring #2 / Titanium - 5" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 5" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 5" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 6" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 6" Class 300, [N] Protection Ring #2 / Titanium - 6" Class 300, [P] Protection Ring #2 / Stainless Steel 1.4404|316L - 6" Class 300, [R] Protection Ring #2 / Hastelloy C22 - 6" Class 300 |
| Finish | [0] Standard, [3] Offshore Coating - 1", [5] Direct Burial Coating - 1", [3] Offshore Coating - 1-1/4", [5] Direct Burial Coating - 1-1/4", [3] Offshore Coating - 1-1/2", [5] Direct Burial Coating - 1-1/2", [3] Offshore Coating - 2", [5] Direct Burial Coating - 2", [3] Offshore Coating - 2-1/2", [5] Direct Burial Coating - 2-1/2", [3] Offshore Coating - 3", [5] Direct Burial Coating - 3", [3] Offshore Coating - 4", [5] Direct Burial Coating - 4", [3] Offshore Coating - 5", [5] Direct Burial Coating - 5", [3] Offshore Coating - 6", [5] Direct Burial Coating - 6" |
| Ratio of CT-Calibration | [0] R=80, [1] VdS 2344 (2005-12) |
| Electrode Construction | [1] Fixed Mounting |
| Markings | [0] Krohne Blue |
| Construction Requirements | [0] Standard |
| QA/QC Requirements | [0] Standard |
| Extended Nominal Diameter | [0] without |
| Instruction Language | [0] English |
| Name Plate | [0] Standard |
| Destination | [0] Standard |
| Flange Material | [0] Standard |
| Reserve Option | [0] without |
