Description

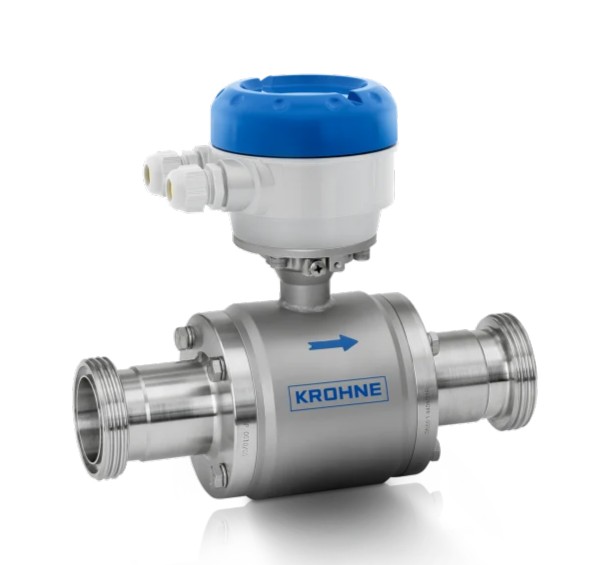

The OPTIFLUX 6000 is an electromagnetic flow sensor for hygienic applications.
Specifications
| Nominal Diameter | DN 2.5 | 1/10", DN 4 | 1/8", DN 6 | 1/4", DN 10 | 3/8", DN 15 | 1/2", DN 25 | 1", DN 40 | 1-1/2", DN 50 | 2", DN 65 | 2-1/2", DN 80 | 3", DN 100 | 4", DN 125 | 5", DN 150 | 6" |
| Process Connection | DN 2.5 | 1/10" Tri-Clamp Connection, DN 4 | 1/8" Tri-Clamp Connection, DN 6 | 1/4" Tri-Clamp Connection, DN 10 | 3/8" Tri-Clamp Connection, DN 15 | 1/2" Tri-Clamp Connection, DN 25 | 1" Tri-Clamp Connection, DN 40 | 1-1/2" Tri-Clamp Connection, DN 50 | 2" Tri-Clamp Connection, DN 65 | 2-1/2" Tri-Clamp Connection, DN 80 | 3" Tri-Clamp Connection, DN 100 | 4" Tri-Clamp Connection, DN 125 | 5" Tri-Clamp Connection, DN 150 | 6" Tri-Clamp Connection, ISO 2037 - Weld-End Connection |
| System Design | Compact Converter, Heavy Duty Neck for SS Compact Converter, Remote Converter w/ Aluminum Connection Box - 1/2" NPT, Remote Converter w/ Aluminum Connection Box - M20 x 1.5, Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter Model | IFC 100 C (Compact), 1/10" to 1/4" | IFC 100 C (Compact), IFC 100 W (Wall Mount), 1/10" to 1/4" | IFC 100 W (Wall Mount), IFC 300 C (Compact), IFC 300 F (Field Mount), IFC 300 W (Wall Mount), IFC 300 R (Rack Mount), IFC 050 C (Compact), IFC 050 W (Wall Mount) |
| Sealing | L-Profile O-Ring EPDM, L-Profile O-Ring Silicone |
| Electrodes | Hastelloy C22, Titanium, St. Steel 1.4404|316L, St. steel DIN 1.4571|316 Ti, Hastelloy C4, Hastelloy B2, Tantalum, Platinum (Wetted Parts) |
| Protection Class | IP66/67, IP66/67/69, IP68 Factory |
| Cable Length | Compact - None, 5m | 15 ft DS Signal + LIYCY Coil Power Cable, 10m | 30 ft DS Signal + LIYCY Coil Power Cable, 15m | 45 ft DS Signal + LIYCY Coil Power Cable, 20m | 60 ft DS Signal + LIYCY Coil Power Cable, 25m | 75 ft DS Signal + LIYCY Coil Power Cable, 30m | 90 ft DS Signal + LIYCY Coil Power Cable, 40m | 120 ft DS Signal + LIYCY Coil Power Cable, 50m | 150 ft DS Signal + LIYCY Coil Power Cable, 100m | 300 ft DS Signal + LIYCY Coil Power Cable, 5m | 15 ft DS Signal Cable, 10m | 30 ft DS Signal Cable, 15m | 45 ft DS Signal Cable, 20m | 60 ft DS Signal Cable, 25m | 75 ft DS Signal Cable, 30m | 90 ft DS Signal Cable, 40m | 120 ft DS Signal Cable, 50m | 150 ft DS Signal Cable, 100m | 300 ft DS Signal Cable |
| Calibration/Tags | Standard, Standard + 316|1.4401 Tagplate (120 x 46mm), Standard + 316|1.4401 Tagplate (67 x 25mm), Custody Transfer, Custody Transfer + 316|1.4401 Tagplate (120 x 46mm), Custody Transfer + 316|1.4401 Tagplate (67 x 25mm), 3 points with water acc. ISO/IEC 17025 2, Extended Calibration, Extended Calibration + 316|1.4401 Tagplate (120 x 46mm), Extended Calibration + 316|1.4401 Tagplate (67 x 25mm) |
| Ex Approvals | non-Ex |
