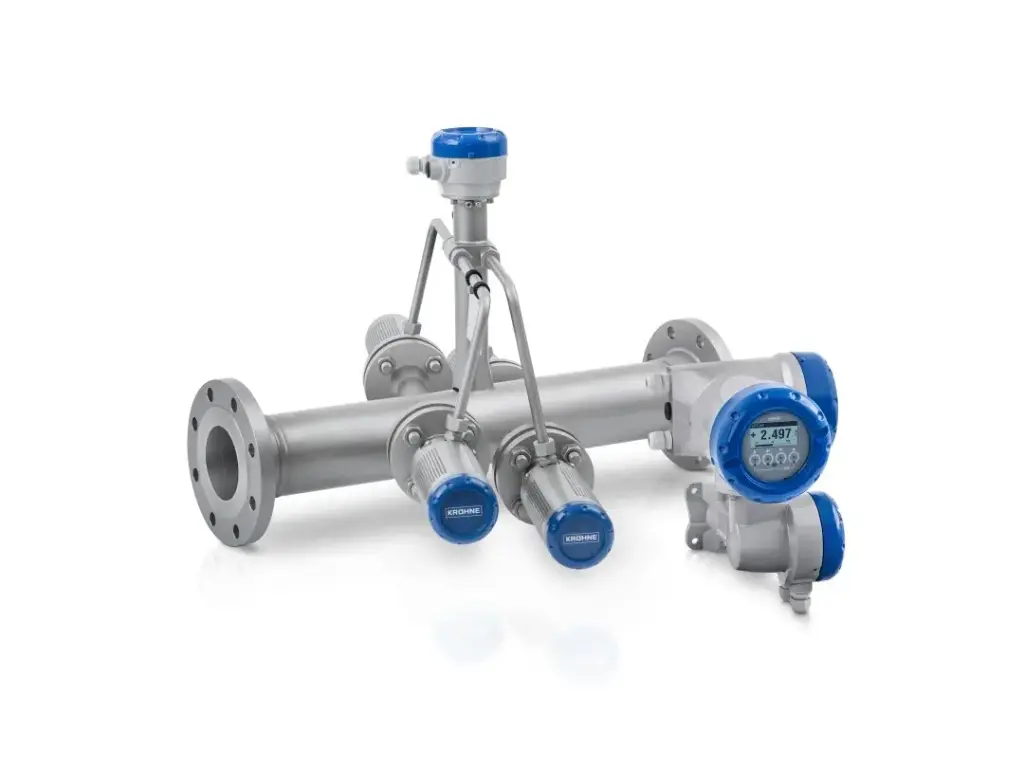

KROHNE Optisonic 4000HT High Temperature Ultrasonic Flow Meter
The OPTISONIC 4400 HT is a 2-path ultrasonic flowmeter for crudes, a broad range of refined products and other liquids that are processed at high temperatures. This makes the flowmeter the perfect choice for accurate flow measurement of high temperature feed flows in refineries. It is also highly suitable for flow measurement of molten salt or synthetic heat transfer oil with high and rapidly changing temperatures at concentrated solar power (CSP) plants. Other typical applications include condensate as well as feed water or spray water measurement at power plants.
Its dual path design compensates for variable flow profiles, maintaining unaltered measuring performance. Due to its rugged construction and its large dynamic range, the OPTISONIC 4400 boasts an excellent long-term stability and performs with minimum operational and maintenance costs. The flowmeter comes as field-mounted version. The meter is available with a wide range of materials as well as sizes and can also be used in hazardous areas. Digital communication options and extensive diagnostics round off the functionality of the device.
The OPTISONIC 4400 HT is a 2-path ultrasonic flowmeter for crudes, a broad range of refined products and other liquids that are processed at high temperatures. This makes the flowmeter the perfect choice for accurate flow measurement of high temperature feed flows in refineries. It is also highly suitable for flow measurement of molten salt or synthetic heat transfer oil with high and rapidly changing temperatures at concentrated solar power (CSP) plants. Other typical applications include condensate as well as feed water or spray water measurement at power plants.
Its dual path design compensates for variable flow profiles, maintaining unaltered measuring performance. Due to its rugged construction and its large dynamic range, the OPTISONIC 4400 boasts an excellent long-term stability and performs with minimum operational and maintenance costs. The flowmeter comes as field-mounted version. The meter is available with a wide range of materials as well as sizes and can also be used in hazardous areas. Digital communication options and extensive diagnostics round off the functionality of the device.
Alternative Products
Specifications
| Nominal Diameter | [VN6644] DN 25 | 1", [VN6647] DN 50 | 2", [VN674A] DN 80 | 3", [VN674B] DN 100 | 4", [VN674D] DN 150 | 6", [VN674E] DN 200 | 8", [VN674F] DN 250 | 10", [VN674G] DN 300 | 12", [VN674H] DN 350 | 14", [VN674K] DN 400 | 16", [VN674L] DN 450 | 18", [VN674M] DN 500 | 20", [VN674N] DN 600 | 24" |
| Nominal Pressure | [A] 150 lb RF ASME B 16.5, [B] 1" 300 lb RF ASME B 16.5, [D] 1" 600 lb RF ASME B 16.5, [X] 1" 600 lb RTJ ASME B 16.5, [B] 2" 300 lb RF ASME B 16.5, [D] 2" 600 lb RF ASME B 16.5, [X] 2" 600 lb RTJ ASME B 16.5, [B] 3" 300 lb RF ASME B 16.5, [D] 3" 600 lb RF ASME B 16.5, [X] 3" 600 lb RTJ ASME B 16.5, [B] 4" 300 lb RF ASME B 16.5, [D] 4" 600 lb RF ASME B 16.5, [X] 4" 600 lb RTJ ASME B 16.5, [Y] 4" 900 lb RTJ ASME B 16.5, [B] 6" 300 lb RF ASME B 16.5, [D] 6" 600 lb RF ASME B 16.5, [X] 6" 600 lb RTJ ASME B 16.5, [Y] 6" 900 lb RTJ ASME B 16.5, [B] 8" 300 lb RF ASME B 16.5, [D] 8" 600 lb RF ASME B 16.5, [X] 8" 600 lb RTJ ASME B 16.5, [Y] 8" 900 lb RTJ ASME B 16.5, [B] 10" 300 lb RF ASME B 16.5, [D] 10" 600 lb RF ASME B 16.5, [X] 10" 600 lb RTJ ASME B 16.5, [Y] 10" 900 lb RTJ ASME B 16.5, [B] 12" 300 lb RF ASME B 16.5, [D] 12" 600 lb RF ASME B 16.5, [X] 12" 600 lb RTJ ASME B 16.5, [B] 14" 300 lb RF ASME B 16.5, [D] 14" 600 lb RF ASME B 16.5, [X] 14" 600 lb RTJ ASME B 16.5, [B] 16" 300 lb RF ASME B 16.5, [D] 16" 600 lb RF ASME B 16.5, [X] 16" 600 lb RTJ ASME B 16.5, [B] 18" 300 lb RF ASME B 16.5, [D] 18" 600 lb RF ASME B 16.5, [X] 18" 600 lb RTJ ASME B 16.5, [B] 20" 300 lb RF ASME B 16.5, [D] 20" 600 lb RF ASME B 16.5, [X] 20" 600 lb RTJ ASME B 16.5, [B] 24" 300 lb RF ASME B 16.5, [D] 24" 600 lb RF ASME B 16.5, [X] 24" 600 lb RTJ ASME B 16.5 |
| Ex-Approval | [0] without, [4] CSAus Class 1 DIV 1 (US), [B] cCSAus Class 1 DIV 1 - Dual Seal (US & Canada), [1] ATEX Zone 1, [F] IECEx Zone 1 |
| Design | [4] Remote Converter w/ Aluminum Connection Box - 1/2" NPT, [6] Remote Converter w/ Aluminum Connection Box - M20 x 1.5, [A] Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, [C] Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter | [2] UFC 400F-v2 - Field Mount, [0] without |
| Cable Length | [0] 5m | 15ft, [1] 10m | 30ft, [2] 15m | 45ft, [3] 20m | 60ft, [4] 25m | 75ft, [5] 30m | 90ft |
| Calibration | [0] 2 Points with Water, [2] 3 Points with Water acc. ISO/IEC 17025 on Accredited Calibration Facility, [6] 6 Points with Water, 1 Point with 3 Results (2 Repeats), [7] 6 Points with Water Bidirectional, 1 Point with 3 Results Bidirectional |
| Tagplate | [03] without - Tag Info on Foiled Nameplate, [23] 316|1.4401 tagplate (120 x 46 mm), [33] 316|1.4401 tagplate (67 x 25 mm) |
| Process Temperature | [1] Max. 600°C|1112°F, [1] Max. 440°C|824°F |
| Transducer Flange Type | [000] Standard, RF (<450°C), [400] RTJ (Molten Salt/<600°C) - Single Path (DN25-50), [400] RTJ (Molten Salt/<600°C) - Dual Path (DN80-DN600) |
| SIL Certification | [00] without, [S0] SIL PIU (Proven in Use) |
| Tube/Flange Material | [C] Steel (A106 gr. B) / Steel (A105N) |
| Housing | [10] Standard |
| Finish | [6] Shell Ensis Rust Inhibitor Inside & Outside |
| Protection Class | [0] IP66/67 |
| Build/QA/QC Requirements | [00] Standard |
| Custody Transfer | [0] without |
| Extended Application | [00] Standard, max 100 cSt |
