Description

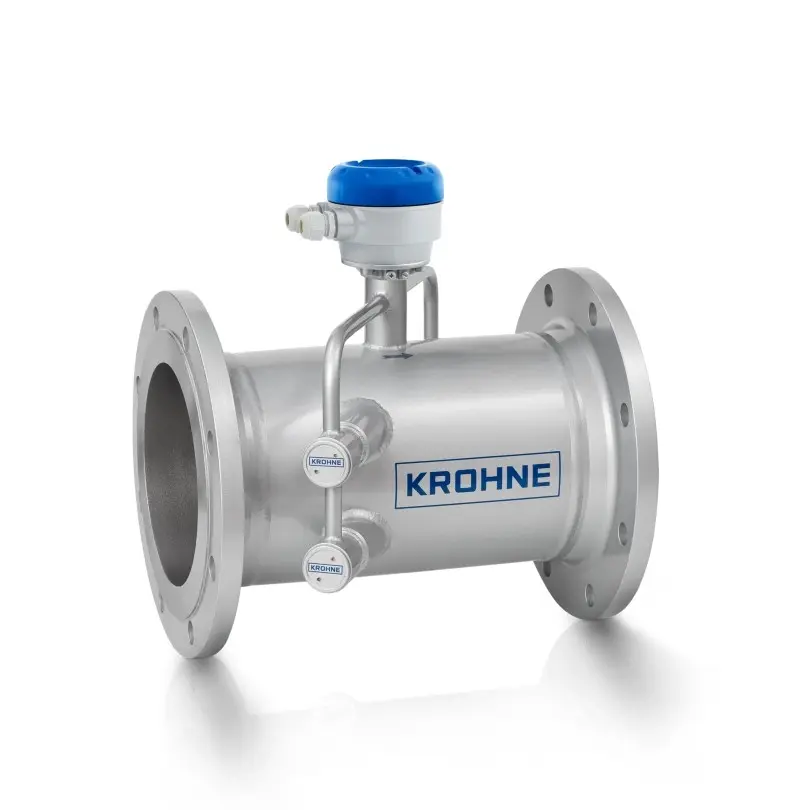

The OPTISONIC 8300 is a 2-path ultrasonic flowmeter designed for the measurement of gases under extreme temperature conditions (-200°C…+593°C / -328°F…+1100°F) and at elevated pressures (up to 200 bar / 2900 psi). This makes it a standard solution for boiler and power plant monitoring or as a steam billing device. With connected temperature and pressure sensors, the flowmeter’s integrated flow computer can also calculate steam mass flow or enthalpy.
The OPTISONIC 8300 is equally well-suited for cryogenic gas applications, making it an ideal choice for boil-off gas (BOG) measurement or for flow measurement in air separation rectification (ASR) cold boxes.
The OPTISONIC 8300 was engineered to avoid costly downtime of steam pipes. It features a full bore flow sensor without moving parts or obstructions to prevent pressure drop. It can uphold its high measuring accuracy (<±1% of measured value) without maintenance or subsequent calibration for up to 20 years. There is no need to remove the meter, valves and a bypass are thus not required. If verification of the measuring accuracy is necessary, it can be provided using the flowmeter diagnostics. The OPTISONIC 8300 comes with digital communication options.
Specifications
| Nominal Diameter | [B] DN100 | 4" - Single Path, [D] DN150 | 6", [E] DN200 | 8", [F] DN250 | 10", [G] DN300 | 12", [H] DN350 | 14", [K] DN400 | 16", [L] DN450 | 18", [M] DN500 | 20", [N] DN600 | 24" |
| Nominal Pressure | [A] 150 lb RF ASME B 16.5, [B] 300 lb RF ASME B 16.5, [D] 600lb RF ASME B 16.5, [E] 900lb RF ASME B 16.5 |
| Ex-Approval | [0] without, [5] cQPSus Class 1 Div 2, [C] CSA Class 1 Div 2, [1] ATEX zone 1, [F] IECEx zone 1 |
| Design / Cable Connection | [A] Remote Converter with Stainless Steel Junction Box / 1/2" NPT, [C] Remote Converter with Stainless Steel Junction Box / M20x1.5 |
| Converter | [U] GFC 300F - Field Mount Converter, [0] without |
| Cable Length | [0] 5m | 15ft, [1] 10m | 30ft, [2] 15m | 45ft, [3] 20m | 60ft, [4] 25m | 75ft, [5] 30m | 90ft |
| Tagplate | [0] without, Tag Information on Foiled Nameplate, [2] 316L SS Tagplate (120 x 46mm), [3] 316L SS Tagplate (67 x 25mm) |
| Quick Start Language | [3] English US, [1] German, [4] French |
| Tube / Flange Material | [C] Carbon Steel / Carbon Steel |
| Calibration | [2] Calibration with air, atm. pressure, at VSL/Euroloop - 5 points |
| Sensor Housing | [0] Standard |
| Reserve Option 1 | [0] Standard |
| Finish | [6] Shell Ensis rust inhibitor inside & outside |
| Sensor Frequncy | [2] 100kHz |
| Construction Requirements | [0] Standard |
| QA/QC Requirements | [0] Standard |
| Protection Class | [0] IP67 |
| Process Temperature | [3] max 540°C|1004°F |
| Transducer Gasket Material | [3] Spiral Wound Graphite / SS |
| Transducer Material | [3] SS347, max. 100bar |
| Extended Application | [5] High Temp Gases/Steamflow |
| Reserve Option 2 | [0] Standard |
| Destination | [0] Standard |
| Reserve Option 3 | [0] Standard |
| Reserve Option 4 | [0] Standard |
