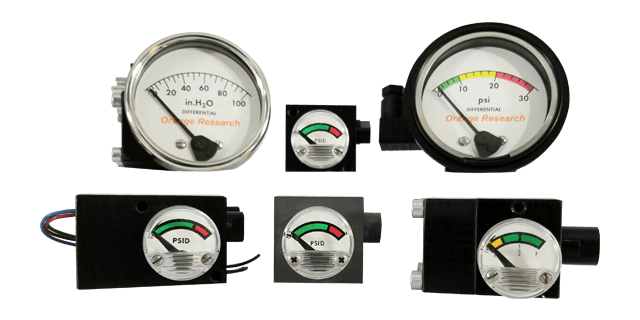

Model 1002 PI/PS Miniature Differential Pressure Sensor
The Orange Research Model 1002 DP Piston Gauge is a compact and reliable instrument engineered for measuring differential pressure in liquid applications. It is designed to withstand line pressures up to 3,000 psig and is available with differential pressure ranges from 0-4 to 0-100 PSID. This model is available as a gauge-only version for visual monitoring, and in a gauge-switch combination for both local indication and system control. Mini transmitter versions are also available, making it suitable for remote monitoring in space-constrained applications.
Features
-
High pressure capability: Withstands line pressures up to 3,000 psig.
-
Multiple configurations: Available in gauge-only, gauge-switch combo, and mini transmitter versions.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
-
Wide range of DP options: Available with differential pressure ranges from 0-4 to 0-100 PSID.
The Orange Research Model 1002 DP Piston Gauge is a compact and reliable instrument engineered for measuring differential pressure in liquid applications. It is designed to withstand line pressures up to 3,000 psig and is available with differential pressure ranges from 0-4 to 0-100 PSID. This model is available as a gauge-only version for visual monitoring, and in a gauge-switch combination for both local indication and system control. Mini transmitter versions are also available, making it suitable for remote monitoring in space-constrained applications.
Features
-
High pressure capability: Withstands line pressures up to 3,000 psig.
-
Multiple configurations: Available in gauge-only, gauge-switch combo, and mini transmitter versions.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
-
Wide range of DP options: Available with differential pressure ranges from 0-4 to 0-100 PSID.
Specifications
| 1002 PI/PIS | |
|---|---|
| Model | [PI] Indicator, [PIS] Indicator w/Switch |
| Specs | [3A-1M] Manifold Back Ports | Aluminum | 1" Molded Dial, [4A-1M] Back Ports | Aluminum | 1" Molded Dial, [5A-1M] Bottom Ports | Aluminum | 1" Molded Dial, [15A-1M] Bottom Ports | 1/4" Conduit Port | Aluminum | 1" Molded Dial |
| Electrical | Without, [A] SPST, N.O., [B] SPST, N.C., [C] SPDT, [C] SPDT (15A) |
| Range | [0-4 psid] 0-4 psid, [0-5 psid] 0-5 psid, [0-10 psid] 0-10 psid, [0-15 psid] 0-15 psid, [0-20 psid] 0-20 psid, [0-25 psid] 0-25 psid, [0-30 psid] 0-30 psid, [0-40 psid] 0-40 psid, [0-50 psid] 0-50 psid, [0-60 psid] 0-60 psid, [0-50 psid] 0-50 psid, [0-60 psid] 0-60 psid |
| Seals | Buna-N (Std), [V] Viton |
| DIN Conn. | None, DIN Connector #43650C-PG7 |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Aluminum |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 1 in (26 mm) |
| Gauge: Process Connection Size | 1/8 NPT |
| Gauge: Accuracy | ±5% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Model | 1002 PI/PS |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
