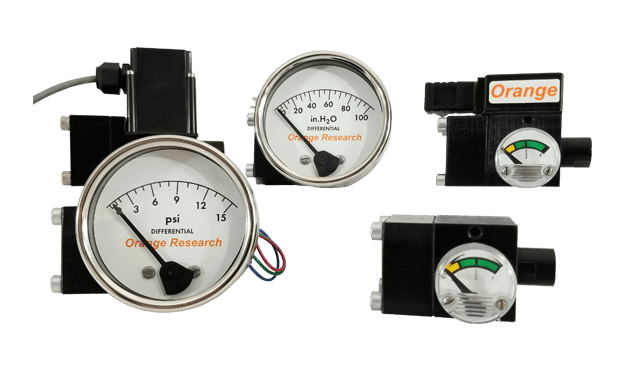

Model 1020 DI Miniature Differential Pressure Sensor
The Orange Research Model 1020 DP Diaphragm Gauge is a reliable and accurate instrument engineered for measuring differential pressure in gas applications. It is designed to handle line pressures up to 1,000 psig and is available with differential pressure ranges from 0-1 to 0-30 PSID. This model is available as a gauge-only version for visual monitoring and in a gauge-switch combination for both local indication and system control. Transmitter versions are also available, making it suitable for remote monitoring in a variety of industrial settings.
Features
-
High pressure capability: Withstands line pressures up to 1,000 psig.
-
Multiple configurations: Available in gauge-only, gauge-switch combo, and transmitter versions.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For gas: Specifically designed for use with gas media.
-
Wide range of DP options: Available with differential pressure ranges from 0-1 to 0-30 PSID.
The Orange Research Model 1020 DP Diaphragm Gauge is a reliable and accurate instrument engineered for measuring differential pressure in gas applications. It is designed to handle line pressures up to 1,000 psig and is available with differential pressure ranges from 0-1 to 0-30 PSID. This model is available as a gauge-only version for visual monitoring and in a gauge-switch combination for both local indication and system control. Transmitter versions are also available, making it suitable for remote monitoring in a variety of industrial settings.
Features
-
High pressure capability: Withstands line pressures up to 1,000 psig.
-
Multiple configurations: Available in gauge-only, gauge-switch combo, and transmitter versions.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For gas: Specifically designed for use with gas media.
-
Wide range of DP options: Available with differential pressure ranges from 0-1 to 0-30 PSID.
Specifications
| 1020 DI/DIS | |
|---|---|
| Specs | [1A-1M] Manifold Back Ports | Aluminum | 1" Molded Dial, [4A-1M] Back Ports | Aluminum | 1" Molded Dial |
| Range | [0-1 psid] 0-1 psid, [0-2 psid] 0-2 psid, [0-3 psid] 0-3 psid, [0-4 psid] 0-4 psid, [0-5 psid] 0-5 psid, [0-6 psid] 0-6 psid, [0-7 psid] 0-7 psid, [0-8 psid] 0-8 psid, [0-9 psid] 0-9 psid, [0-10 psid] 0-10 psid |
| Oxygen Clean | Without, [O2] With |
| Seals | Buna-N (Std), [E] EPDM, [F] Fluorisil, [V] Viton, [V] Viton w/O2 Cleaning |
| DIN Conn. | None, DIN Connector #43650C-PG7 |
| Model | [DI] Indicator |
| Electrical | Without |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Aluminum |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 1 in (26 mm) |
| Gauge: Process Connection Size | 1/8 NPT |
| Gauge: Accuracy | ±5% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Model | 1020 DI/DIS |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
