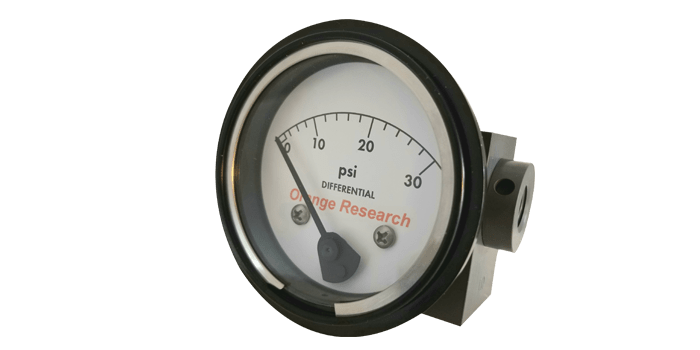

Model 1201 PVC Differential Pressure Piston Gauge
The Orange Research Model 1201 PVC Piston Gauge is a reliable and corrosion-resistant instrument engineered for measuring differential pressure in liquid applications. It is built to handle line pressures up to 200 psig, providing safe and dependable performance. The PVC construction makes it suitable for use with a variety of corrosive media. This model is available in two configurations to suit your specific needs: a gauge-only version for straightforward visual monitoring, and a gauge-switch combination for both local indication and system control.
Features
-
Pressure capability: Withstands line pressures up to 200 psig.
-
Corrosion resistant: Constructed with PVC for use with corrosive liquids.
-
Multiple configurations: Available in gauge-only and gauge-switch combo versions.
-
Durable construction: Engineered for reliable operation in industrial environments.
-
For liquids: Specifically designed for use with liquid media.
The Orange Research Model 1201 PVC Piston Gauge is a reliable and corrosion-resistant instrument engineered for measuring differential pressure in liquid applications. It is built to handle line pressures up to 200 psig, providing safe and dependable performance. The PVC construction makes it suitable for use with a variety of corrosive media. This model is available in two configurations to suit your specific needs: a gauge-only version for straightforward visual monitoring, and a gauge-switch combination for both local indication and system control.
Features
-
Pressure capability: Withstands line pressures up to 200 psig.
-
Corrosion resistant: Constructed with PVC for use with corrosive liquids.
-
Multiple configurations: Available in gauge-only and gauge-switch combo versions.
-
Durable construction: Engineered for reliable operation in industrial environments.
-
For liquids: Specifically designed for use with liquid media.
Specifications
| 1201 PVC | |
|---|---|
| Model | [PG] Gauge, [PGS] Gauge w/Switch |
| Specs | [1D-2.5M] PVC | Inline Ports | 2.5" Molded Dial, [1D-3.5M] PVC | Inline Ports | 3.5" Molded Dial |
| Electrical | Without, [A] SPST, N.O., [B] SPST, N.C., [C] SPDT |
| Range | [0-10 PSID] 0-10 PSID, [0-15 PSID] 0-15 PSID, [0-20 PSID] 0-20 PSID, [0-25 PSID] 0-25 PSID, [0-30 PSID] 0-30 PSID |
| Seals | Viton (Std), [E] EPDM |
| Press. Gauge Features | |
|---|---|
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Plastic |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 3-1/2 in (90 mm) |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Piston |
| Gauge: Model | 1201 PVC |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
