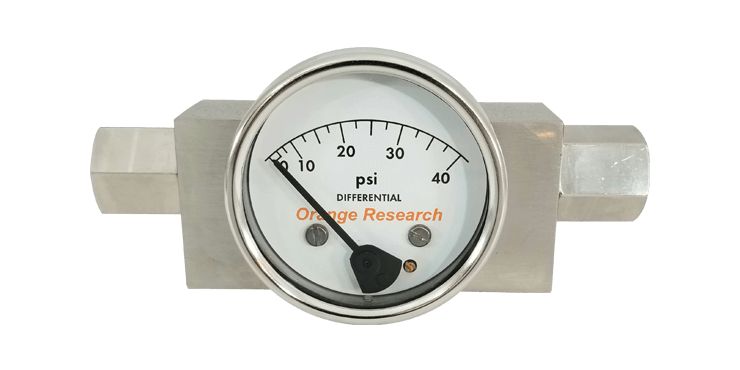

Model 1206 Differential Pressure Gauge
The Orange Research Model 1206 DP Piston Gauge is a heavy-duty instrument designed for measuring differential pressure in liquid applications. It is engineered to withstand extremely high line pressures, up to 10,000 psig, ensuring reliable and safe performance in the most demanding industrial environments. This model is available as a gauge-only version, making it ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
Extreme pressure capability: Withstands line pressures up to 10,000 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
The Orange Research Model 1206 DP Piston Gauge is a heavy-duty instrument designed for measuring differential pressure in liquid applications. It is engineered to withstand extremely high line pressures, up to 10,000 psig, ensuring reliable and safe performance in the most demanding industrial environments. This model is available as a gauge-only version, making it ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
Extreme pressure capability: Withstands line pressures up to 10,000 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
Specifications
| 1206 PG | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5", 6.0" |
| Specs | [1C-2.5] 316SS | Inline Port | 2.5" Dial, [1C-3.5] 316SS | Inline Port | 3.5" Dial, [1C-4.5] 316SS | Inline Port | 4.5" Dial, [1C-6.0] 316SS | Inline Port | 6.0" Dial |
| Dial Type | [B] Basic, [F] Flanged (2.5/3.5"), [F] Flanged (4.5/6.0") |
| Range | [0-5 psid] 0-5 PSID, [0-8 psid] 0-8 PSID, [0-10 psid] 0-10 PSID, [0-15 psid] 0-15 PSID, [0-20 psid] 0-20 PSID, [0-25 psid] 0-25 PSID, [0-30 psid] 0-30 PSID, [0-40 psid] 0-40 PSID, [0-50 psid] 0-50 PSID, [0-60 psid] 0-60 PSID, [0-80 psid] 0-80 PSID, [0-100 psid] 0-100 PSID, [0-125 psid] 0-125 PSID, [0-150 psid] 0-150 PSID |
| Lens | Glass (Std), [PL] Plastic Lens (2.5/3.5"), [PL] Plastic Lens (4.5/6.0") |
| Liquid Filled | Without, [LF] Glycerine |
| Follower Pointer | Without, [FP] With |
| Teflon Coated | Without, [TC] Magnet & Spring |
| Red Arc | Without, [6] With |
| Temp | Without, [HT] High Temp Service |
| Seals | Buna-N (Std) / Viton (HT), [E] EPDM, [F] Fluorosilicone, [V] Viton, [T] Teflon |
| Model | [PG] Gauge |
| Press. Gauge Features | |
|---|---|
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 3-1/2 in (90 mm), 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Piston |
| Gauge: Model | 1206 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
