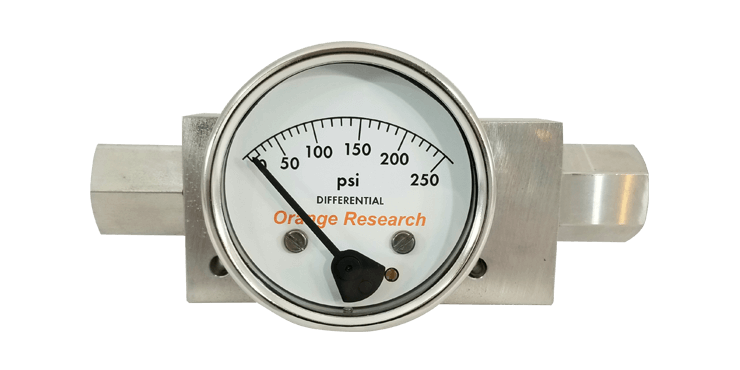

Model 1306 Differential Pressure Gauge
The Orange Research Model 1306 DP Piston Gauge is a reliable and durable instrument designed for measuring differential pressure in liquid applications. It is engineered to withstand line pressures up to 5,000 psig, providing safe and dependable performance in demanding industrial environments. This model is available as a gauge-only version, which is ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
High pressure capability: Withstands line pressures up to 5,000 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
The Orange Research Model 1306 DP Piston Gauge is a reliable and durable instrument designed for measuring differential pressure in liquid applications. It is engineered to withstand line pressures up to 5,000 psig, providing safe and dependable performance in demanding industrial environments. This model is available as a gauge-only version, which is ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
High pressure capability: Withstands line pressures up to 5,000 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
Specifications
| 1306 PG | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5", 6.0" |
| Specs | [1C-2.5] 316SS | Inline Port | 2.5" Dial, [1C-3.5] 316SS | Inline Port | 3.5" Dial, [1C-4.5] 316SS | Inline Port | 4.5" Dial, [1C-6.0] 316SS | Inline Port | 6.0" Dial |
| Dial Type | [B] Basic, [F] Flanged (2.5/3.5"), [F] Flanged (4.5/6.0") |
| Range | [0-100 PSID] 0-100 PSID, [0-125 PSID] 0-125 PSID, [0-150 PSID] 0-150 PSID, [0-200 PSID] 0-200 PSID, [0-250 PSID] 0-250 PSID, [0-300 PSID] 0-300 PSID, [0-400 PSID] 0-400 PSID, [0-500 PSID] 0-500 PSID, [0-600 PSID] 0-600 PSID, [0-700 PSID] 0-700 PSID, [0-750 PSID] 0-750 PSID, [0-800 PSID] 0-800 PSID, [0-900 PSID] 0-900 PSID, [0-1000 PSID] 0-1000 PSID |
| Lens | Glass (Std), [PL] Plastic Lens (2.5/3.5"), [PL] Plastic Lens (4.5/6.0") |
| Liquid Filled | Without, [LF] Glycerine |
| Follower Pointer | Without, [FP] With |
| Teflon Coated | Without, [TC] Magnet & Spring |
| Red Arc | Without, [6] With |
| Temp | Without, [HT] High Temp Service |
| Seals | Buna-N (Std) / Viton (HT), [E] EPDM, [F] Fluorosilicone, [V] Viton, [T] Teflon |
| Model | [PG] Gauge |
| Press. Gauge Features | |
|---|---|
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 3-1/2 in (90 mm), 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Piston |
| Gauge: Model | 1306 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
