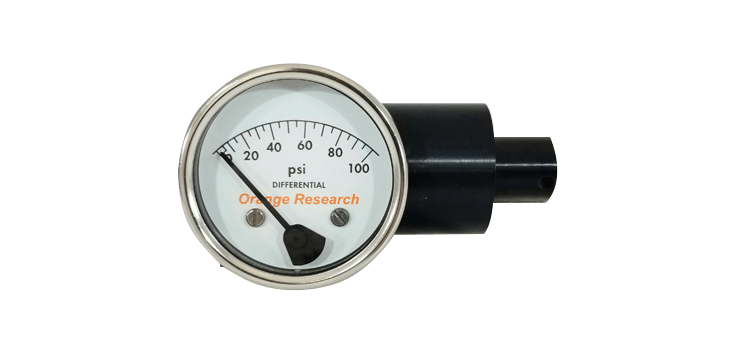

Model 1502 Diaphragm Differential Pressure Gauge
The Orange Research Model 1502 DP Diaphragm Gauge is a reliable and versatile instrument engineered for measuring differential pressure in both liquid and gas applications. It is built to withstand line pressures up to 3,000 psig, providing safe and dependable performance in demanding industrial environments. This model is available as a gauge-only version, which is ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
High pressure capability: Withstands line pressures up to 3,000 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids and gases: Specifically designed for use with both liquid and gas media.
The Orange Research Model 1502 DP Diaphragm Gauge is a reliable and versatile instrument engineered for measuring differential pressure in both liquid and gas applications. It is built to withstand line pressures up to 3,000 psig, providing safe and dependable performance in demanding industrial environments. This model is available as a gauge-only version, which is ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
High pressure capability: Withstands line pressures up to 3,000 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids and gases: Specifically designed for use with both liquid and gas media.
Specifications
| 1502 DG | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5", 6.0" |
| Port Type | [1] In-Line, [4] Back, [5] Bottom |
| Specs | [A-2.5] Aluminum | 2.5" Dial, [A-3.5] Aluminum | 3.5" Dial, [A-4.5] Aluminum | 4.5" Dial, [A-6.0] Aluminum | 6.0" Dial, [C-2.5] 316SS | 2.5" Dial, [C-3.5] 316SS | 3.5" Dial, [C-4.5] 316SS | 4.5" Dial, [C-6.0] 316SS | 6.0" Dial |
| Dial Type | [B] Basic, [F] Flanged (2.5/3.5"), [F] Flanged (4.5/6.0") |
| Range | [0-10 PSID] 0-10 PSID, [0-15 PSID] 0-15 PSID, [0-20 PSID] 0-20 PSID, [0-25 PSID] 0-25 PSID, [0-30 PSID] 0-30 PSID, [0-40 PSID] 0-40 PSID, [0-50 PSID] 0-50 PSID, [0-60 PSID] 0-60 PSID, [0-80 PSID] 0-80 PSID, [0-100 PSID] 0-100 PSID, [0-125 PSID] 0-125 PSID, [0-150 PSID] 0-150 PSID, [0-200 PSID] 0-200 PSID, [0-250 PSID] 0-250 PSID, [0-300 PSID] 0-300 PSID |
| Port Size | 1/4 NPT (Std), [1] 1/2 NPT (Aluminum), [1] 1/2 NPT (SS/Brass) |
| Lens | Glass (Std), [PL] Plastic Lens (2.5/3.5"), [PL] Plastic Lens (4.5/6.0") |
| Liquid Filled | Without, [LF] Glycerine |
| Follower Pointer | Without, [FP] With |
| Teflon Coated | Without, [TC] Magnet & Spring |
| Red Arc | Without, [6] With |
| Temp | Without, [HT] High Temp Service |
| Seals | Buna-N (Std) / Viton (HT), [E] EPDM, [F] Fluorosilicone, [V] Viton, [T] Teflon |
| Tag Options | None, SS Tag, Paper Tag |
| Model | [DG] Gauge |
| Press. Gauge Features | |
|---|---|
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Stainless Steel, Aluminum |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 3-1/2 in (90 mm), 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Model | 1502 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
