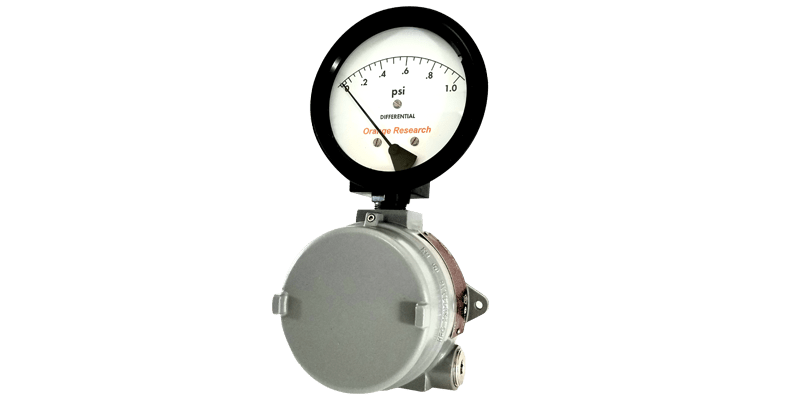

Model 1514 Explosion Proof Differential Pressure Gauge
The Orange Research Model 1514 DP Diaphragm Gauge is a highly versatile and dependable instrument engineered for measuring differential pressure in liquid applications within hazardous environments. It is built to handle line pressures up to 1,500 psig, providing safe and reliable performance. This model is Class 1, Div. 1 rated, making it suitable for use in locations where flammable gases or vapors may be present. It is available in a wide range of configurations to suit your specific needs, including a gauge-switch combination for local and automated control, a switch-only version for process automation, a transmitter-only version for remote monitoring, and a gauge-transmitter combination for both local indication and remote data transmission.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Multiple configurations: Available in gauge-switch combo, switch-only, transmitter-only, and gauge-transmitter combo versions.
-
Class 1, Div. 1 rated: Safe for use in hazardous locations.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
The Orange Research Model 1514 DP Diaphragm Gauge is a highly versatile and dependable instrument engineered for measuring differential pressure in liquid applications within hazardous environments. It is built to handle line pressures up to 1,500 psig, providing safe and reliable performance. This model is Class 1, Div. 1 rated, making it suitable for use in locations where flammable gases or vapors may be present. It is available in a wide range of configurations to suit your specific needs, including a gauge-switch combination for local and automated control, a switch-only version for process automation, a transmitter-only version for remote monitoring, and a gauge-transmitter combination for both local indication and remote data transmission.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Multiple configurations: Available in gauge-switch combo, switch-only, transmitter-only, and gauge-transmitter combo versions.
-
Class 1, Div. 1 rated: Safe for use in hazardous locations.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids: Specifically designed for use with liquid media.
Specifications
| 1514 DGS/DS/DGT/DT | |
|---|---|
| Model | [DGS] Gauge w/Switch, [DGT] Gauge w/Transmitter |
| Specs | [1C-3.5] 316SS | Inline Port | 3.5" Dial, [1C-4.5] 316SS | Inline Port | 4.5" Dial, [1C-6.0] 316SS | Inline Port | 6.0" Dial |
| Dial Type | [B] Basic, [F] Flanged (3.5"), [F] Flanged (4.5/6.0") |
| Electrical | [A] SPST, N.O., [B] SPST, N.C., [C] SPDT, [A-A] (2) SPST, N.O., [B-B] (2) SPST, N.C., [C-C] (2) SPDT, [R1] Relay, [R1D] (2) Relays, [T2] Transmitter |
| Range | [0-1 PSID] 0-1 PSID, [0-2 PSID] 0-2 PSID, [0-3 PSID] 0-3 PSID, [0-5 PSID] 0-5 PSID, [0-8 PSID] 0-8 PSID, [0-10 PSID] 0-10 PSID, [0-15 PSID] 0-15 PSID, [0-20 PSID] 0-20 PSID, [0-25 PSID] 0-25 PSID, [0-30 PSID] 0-30 PSID, [0-35 PSID] 0-35 PSID, [0-40 PSID] 0-40 PSID, [0-50 PSID] 0-50 PSID |
| Port Size | 1/4 NPT (Std), [1] 1/2 NPT |
| Lens | Glass (Std), [PL] Plastic Lens (3.5"), [PL] Plastic Lens (4.5/6.0") |
| Liquid Filled | Without, [LF] Glycerine |
| Follower Pointer | Without, [FP] With |
| Teflon Coated | Without, [TC] Magnet & Spring |
| Red Arc | Without, [6] With |
| Temp | Without, [HT] High Temp Service |
| Seals | Buna-N (Std) / Viton (HT), [E] EPDM, [F] Fluorosilicone, [V] Viton, [T] Teflon |
| Press. Gauge Features | |
|---|---|
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Brand | Orange Research |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Dial Size | 3-1/2 in (90 mm), 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Model | 1514 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Dial Indicating Gauge |
