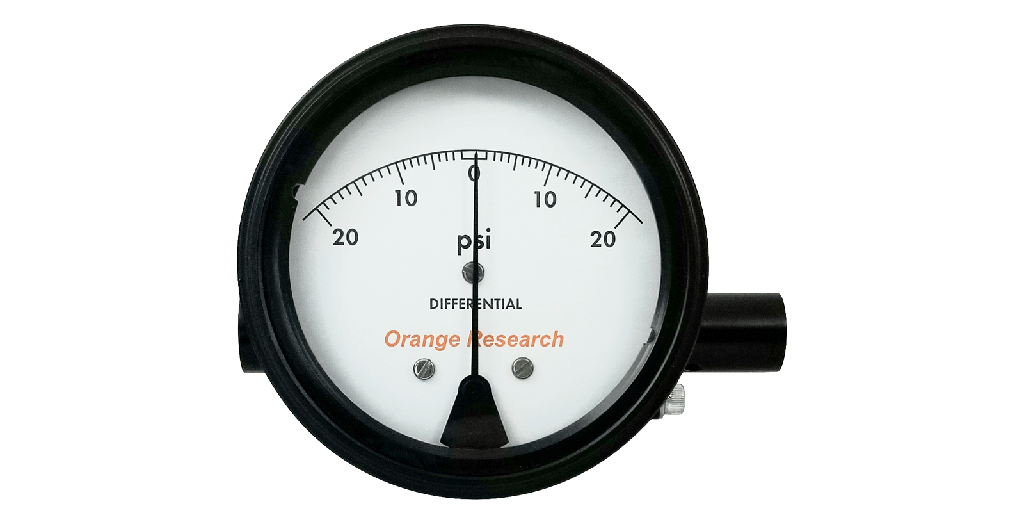

Model 1518 Diaphragm Differential Pressure Gauge
The Orange Research Model 1518 DP Diaphragm Gauge is a reliable and versatile instrument engineered for measuring differential pressure in both liquid and gas applications. Featuring a zero-center compound range, it is ideal for systems where the differential pressure can fluctuate in both positive and negative directions. Built to handle line pressures up to 1,500 psig, this model provides safe and dependable performance. It is available in several configurations to suit your specific needs: a gauge-only version for visual monitoring, a gauge-switch combination for both local indication and system control, and a switch-only version for straightforward process automation.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Zero-center compound range: Ideal for fluctuating differential pressure.
-
Multiple configurations: Available in gauge-only, gauge-switch combo, and switch-only versions.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids and gases: Specifically designed for use with both liquid and gas media.
The Orange Research Model 1518 DP Diaphragm Gauge is a reliable and versatile instrument engineered for measuring differential pressure in both liquid and gas applications. Featuring a zero-center compound range, it is ideal for systems where the differential pressure can fluctuate in both positive and negative directions. Built to handle line pressures up to 1,500 psig, this model provides safe and dependable performance. It is available in several configurations to suit your specific needs: a gauge-only version for visual monitoring, a gauge-switch combination for both local indication and system control, and a switch-only version for straightforward process automation.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Zero-center compound range: Ideal for fluctuating differential pressure.
-
Multiple configurations: Available in gauge-only, gauge-switch combo, and switch-only versions.
-
Durable construction: Engineered for reliable operation in challenging industrial settings.
-
For liquids and gases: Specifically designed for use with both liquid and gas media.
Specifications
| 1518 DG/DGS | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5", 6.0" |
| Model | [DG] Gauge, [DGS] Gauge w/Switch |
| Specs | [1A-2.5] Aluminum | Inline Port | 2.5" Dial, [1A-3.5] Aluminum | Inline Port | 3.5" Dial, [1A-4.5] Aluminum | Inline Port | 4.5" Dial, [1A-6.0] Aluminum | Inline Port | 6.0" Dial, [1C-2.5] 316SS | Inline Port | 2.5" Dial, [1C-3.5] 316SS | Inline Port | 3.5" Dial, [1C-4.5] 316SS | Inline Port | 4.5" Dial, [1C-6.0] 316SS | Inline Port | 6.0" Dial |
| Dial Type | [B] Basic, [F] Flanged (2.5/3.5"), [F] Flanged (4.5/6.0") |
| Electrical | Without, [A] SPST, N.O., [B] SPST, N.C., [C] SPDT, [A-A] (2) SPST, N.O., [B-B] (2) SPST, N.C., [C-C] (2) SPDT, [R2] Relay |
| Range | [10-0-10 psid] 10-0-10 psid, [15-0-15 psid] 15-0-15 psid, [20-0-20 psid] 20-0-20 psid, [25-0-25 psid] 25-0-25 psid, [30-0-30 psid] 30-0-30 psid, [50-0-50 psid] 50-0-50 psid |
| Port Size | 1/4 NPT (Std), [1] 1/2 NPT (Aluminum), [1] 1/2 NPT (SS) |
| Lens | Glass (Std), [PL] Plastic Lens (2.5/3.5"), [PL] Plastic Lens (4.5/6.0") |
| Liquid Filled | Without, [LF] Glycerine |
| Follower Pointer | Without, [FP] With |
| Teflon Coated | Without, [TC] Magnet & Spring |
| Red Arc | Without, [6] With |
| Temp | Without, [HT] High Temp Service |
| Seals | Buna-N (Std), [V] Viton, [T] Teflon |
| Press. Gauge Features | |
|---|---|
| Gauge: Pressure Type | Differential Pressure, Differential Pressure |
| Gauge: Brand | Orange Research |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Wetted Material | Stainless Steel, Aluminum |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 3-1/2 in (90 mm), 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Model | 1518 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
