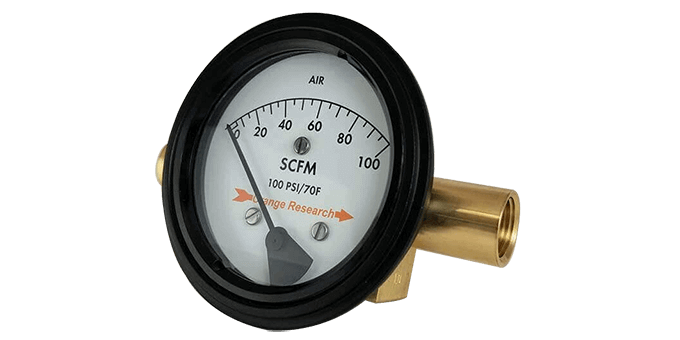

Model 2321 High Flow Flowmeter
The Orange Research Model 2321 Flow Meter is a robust and dependable instrument designed for accurate flow measurement in a variety of industrial applications. Built to handle line pressures up to 3,000 psig, this durable meter ensures reliable performance in demanding environments. It's available in several configurations to suit your specific needs: a gauge-only version for simple visual monitoring, a gauge-switch combination for both local indication and system control, and a switch-only version for straightforward process automation.
Features
-
High-Pressure Capability: Withstands line pressures up to 3,000 psig.
-
Multiple Configurations: Available in gauge-only, gauge-switch combo, and switch-only versions.
-
Durable Construction: Designed for reliable operation in tough industrial settings.
-
Versatile Use: Ideal for a wide range of flow measurement applications.
The Orange Research Model 2321 Flow Meter is a robust and dependable instrument designed for accurate flow measurement in a variety of industrial applications. Built to handle line pressures up to 3,000 psig, this durable meter ensures reliable performance in demanding environments. It's available in several configurations to suit your specific needs: a gauge-only version for simple visual monitoring, a gauge-switch combination for both local indication and system control, and a switch-only version for straightforward process automation.
Features
-
High-Pressure Capability: Withstands line pressures up to 3,000 psig.
-
Multiple Configurations: Available in gauge-only, gauge-switch combo, and switch-only versions.
-
Durable Construction: Designed for reliable operation in tough industrial settings.
-
Versatile Use: Ideal for a wide range of flow measurement applications.
Specifications
| 2321 FG/FGS/FS | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5" |
| Model | [FG] Flowmeter, [FGS] Flowmeter w/Switch⁺ |
| Specs | [1A-2.5] Aluminum | 2.5" Dial, [1A-3.5] Aluminum | 3.5" Dial, [1A-4.5] Aluminum | 4.5" Dial, [1C-2.5] 316 SS | 2.5" Dial, [1C-3.5] 316 SS | 3.5" Dial, [1C-4.5] 316 SS | 4.5" Dial, [1E-2.5] Brass | 2.5" Dial, [1E-3.5] Brass | 3.5" Dial, [1E-4.5] Brass | 4.5" Dial, [1A-2.5] Aluminum | 2.5" Dial⁺, [1A-3.5] Aluminum | 3.5" Dial⁺, [1A-4.5] Aluminum | 4.5" Dial⁺, [1C-2.5] 316 SS | 2.5" Dial⁺, [1C-3.5] 316 SS | 3.5" Dial⁺, [1C-4.5] 316 SS | 4.5" Dial⁺, [1E-2.5] Brass | 2.5" Dial⁺, [1E-3.5] Brass | 3.5" Dial⁺, [1E-4.5] Brass | 4.5" Dial⁺ |
| Dial Type | [B] Basic, [F] Flanged (2.5"), [F] Flanged (3.5/4.5") |
| Electrical | None, [A] SPST, N.O., [B] SPST, N.C., [C] SPDT, [A-A] (2) SPST, N.O., [B-B] (2) SPST, N.C., [C-C] (2) SPDT |
| Range | [0-1 GPM-W] Std. Water Calibration, [0-2 GPM-W] Std. Water Calibration, [0-5 GPM-W] Std. Water Calibration, [0-8 GPM-W] Std. Water Calibration, [0-10 GPM-W] Std. Water Calibration, [1.5-10 SCM-A] Std. Air Calibration, [3-20 SCFM-A] Std. Air Calibration, [4-30 SCFM-A] Std. Air Calibration, [5-50 SCFM-A] Std. Air Calibration, [5-75 SCFM-A] Std. Air Calibration, [10-100 SCFM-A] Std. Air Calibration |
| Lens | Glass (Std), [PL] Plastic (2.5"), [PL] Plastic (3.5/4.5") |
| Liquid Filled | Without, [LF] Glycerine (3.5"), [LF] Glycerine (4.5") |
| Flow | Left to Right (Std), [RF] Reverse Flow, [VU] Vertical Flow-Up, [VD] Vertical Flow-Down |
| Seals | Buna-N (Std), [T] Teflon, [V] Viton |
| Flowmeter Features | |
|---|---|
| Flowmeter: Technology | Differential Pressure (DP) |
| Flowmeter: Connection Size | 1/4 in |
| Flowmeter: Connection Type | NPT |
| Flowmeter: Fluid Type | Liquid, Gas |
| Flowmeter: Power | 120 VAC |
