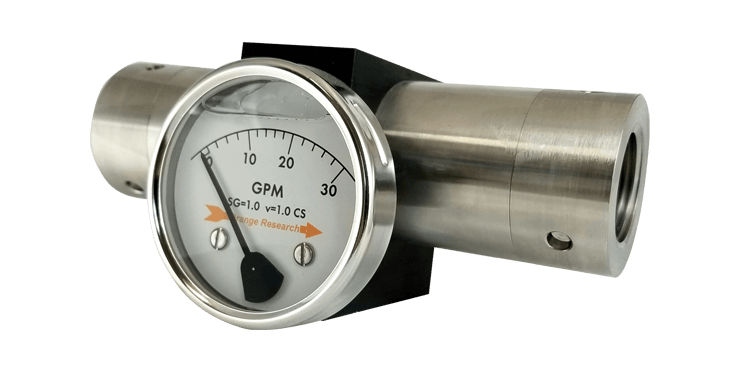

Model 2421 High Flow Flowmeter
The Orange Research Model 2421 Flow Meter is a simple and reliable instrument designed for accurate flow measurement in various industrial settings. It is built to handle line pressures up to 1,500 psig, providing safe and durable performance. This particular model is available as a gauge-only version, which is ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Designed for dependable operation in industrial environments.
-
Versatile use: Suitable for a wide range of flow measurement applications.
The Orange Research Model 2421 Flow Meter is a simple and reliable instrument designed for accurate flow measurement in various industrial settings. It is built to handle line pressures up to 1,500 psig, providing safe and durable performance. This particular model is available as a gauge-only version, which is ideal for applications that require straightforward visual monitoring without additional control features.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Single configuration: Available as a gauge-only version.
-
Durable construction: Designed for dependable operation in industrial environments.
-
Versatile use: Suitable for a wide range of flow measurement applications.
Specifications
| 2421 FG | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5" |
| Specs | [1A-2.5B] Aluminum | 2.5" Dial, [1A-3.5B] Aluminum | 3.5" Dial, [1A-4.5B] Aluminum | 4.5" Dial, [1C-2.5B] 316 SS | 2.5" Dial, [1C-3.5B] 316 SS | 3.5" Dial, [1C-4.5B] 316 SS | 4.5" Dial |
| Range | [0-10 GPM-W] Std. Water Calibration, [0-15 GPM-W] Std. Water Calibration, [0-20 GPM-W] Std. Water Calibration, [0-25 GPM-W] Std. Water Calibration, [0-30 GPM-W] Std. Water Calibration |
| Lens | Glass (Std), [PL] Plastic (2.5"), [PL] Plastic (3.5/4.5") |
| Liquid Filled | Without, [LF] Glycerine (3.5"), [LF] Glycerine (4.5") |
| Flow | Left to Right (Std), [RF] Reverse Flow, [VU] Vertical Flow-Up, [VD] Vertical Flow-Down |
| Seals | Buna-N (Std), [T] Teflon, [V] Viton |
| Model | [FG] Flowmeter |
| Flowmeter Features | |
|---|---|
| Flowmeter: Technology | Differential Pressure (DP) |
| Flowmeter: Connection Size | 1 in |
| Flowmeter: Connection Type | NPT |
| Flowmeter: Fluid Type | Liquid |
| Flowmeter: Power | 120 VAC |
