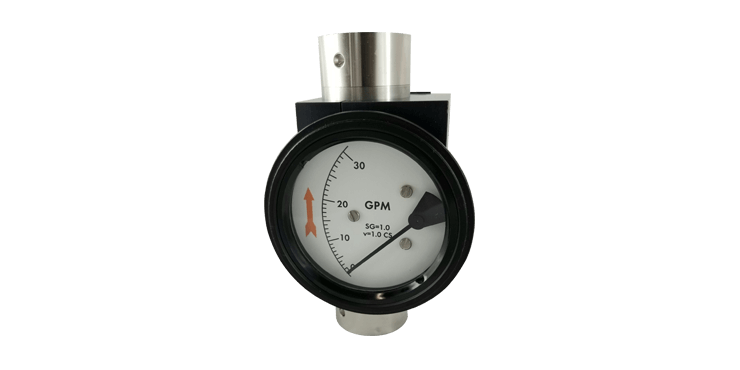

Model 2423 High Flow Flowmeter
The Orange Research Model 2423 Flow Meter is a dependable instrument designed for accurate flow measurement in a variety of industrial applications. It is built to handle line pressures up to 1,500 psig, ensuring durable and safe performance. This model is available in two configurations to suit your specific needs: a gauge-switch combination for both visual indication and system control, and a switch-only version for straightforward process automation.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Multiple configurations: Available in gauge-switch combo and switch-only versions.
-
Durable construction: Engineered for reliable operation in industrial environments.
-
Versatile use: Ideal for a wide range of flow measurement applications.
The Orange Research Model 2423 Flow Meter is a dependable instrument designed for accurate flow measurement in a variety of industrial applications. It is built to handle line pressures up to 1,500 psig, ensuring durable and safe performance. This model is available in two configurations to suit your specific needs: a gauge-switch combination for both visual indication and system control, and a switch-only version for straightforward process automation.
Features
-
High pressure capability: Withstands line pressures up to 1,500 psig.
-
Multiple configurations: Available in gauge-switch combo and switch-only versions.
-
Durable construction: Engineered for reliable operation in industrial environments.
-
Versatile use: Ideal for a wide range of flow measurement applications.
Specifications
| 2423 FGS/FS | |
|---|---|
| Dial Size | 2.5", 3.5", 4.5" |
| Specs | [1A-2.5B] Aluminum | 2.5" Dial, [1A-3.5B] Aluminum | 3.5" Dial, [1A-4.5B] Aluminum | 4.5" Dial, [1C-2.5B] 316 SS | 2.5" Dial, [1C-3.5B] 316 SS | 3.5" Dial, [1C-4.5B] 316 SS | 4.5" Dial |
| Electrical | [A] SPST, N.O., [B] SPST, N.C., [C] SPDT, [A-A] (2) SPST, N.O., [B-B] (2) SPST, N.C., [C-C] (2) SPDT, [R2] Relay |
| Range | [0-10 GPM-W] Std. Water Calibration, [0-15 GPM-W] Std. Water Calibration, [0-20 GPM-W] Std. Water Calibration, [0-25 GPM-W] Std. Water Calibration, [0-30 GPM-W] Std. Water Calibration |
| Lens | Glass (Std), [PL] Plastic (2.5"), [PL] Plastic (3.5/4.5") |
| Liquid Filled | Without, [LF] Glycerine (3.5"), [LF] Glycerine (4.5") |
| Flow | Left to Right (Std), [RF] Reverse Flow, [VU] Vertical Flow-Up, [VD] Vertical Flow-Down |
| Seals | Buna-N (Std), [T] Teflon, [V] Viton |
| Model | [FGS] Flowmeter w/Switch |
| Flowmeter Features | |
|---|---|
| Flowmeter: Technology | Differential Pressure (DP) |
| Flowmeter: Connection Size | 1 in |
| Flowmeter: Connection Type | NPT |
| Flowmeter: Fluid Type | Liquid |
