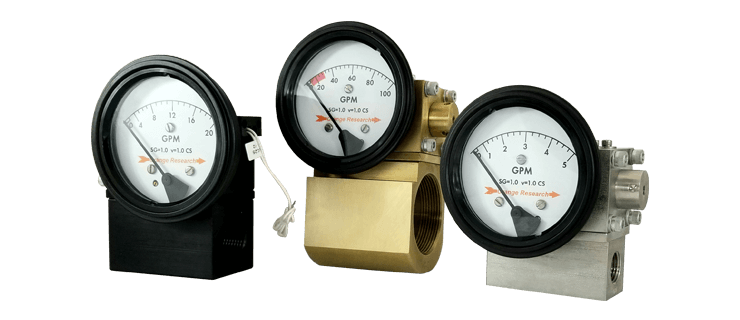

Model 2520 Differential Pressure Flowmeter
The Orange Research Model 2520 Flow Meter is a reliable instrument designed for accurate flow measurement in a variety of industrial applications. It is built to handle line pressures up to 500 psig, providing durable and dependable performance. This model is available in two configurations to suit your specific needs: a gauge-only version for simple visual monitoring, and a gauge-switch combination for both local indication and system control.
Features
-
High pressure capability: Withstands line pressures up to 500 psig.
-
Multiple configurations: Available in gauge-only and gauge-switch combo versions.
-
Durable construction: Engineered for reliable operation in industrial environments.
-
Versatile use: Ideal for a wide range of flow measurement applications.
The Orange Research Model 2520 Flow Meter is a reliable instrument designed for accurate flow measurement in a variety of industrial applications. It is built to handle line pressures up to 500 psig, providing durable and dependable performance. This model is available in two configurations to suit your specific needs: a gauge-only version for simple visual monitoring, and a gauge-switch combination for both local indication and system control.
Features
-
High pressure capability: Withstands line pressures up to 500 psig.
-
Multiple configurations: Available in gauge-only and gauge-switch combo versions.
-
Durable construction: Engineered for reliable operation in industrial environments.
-
Versatile use: Ideal for a wide range of flow measurement applications.
Specifications
| 2520 FG/FGS | |
|---|---|
| Model | [FG] Flowmeter, [FGS] Flowmeter w/Switch |
| Specs | [1A-3.5B] Aluminum | 2.5" Dial, [1C-3.5B] 316SS | 2.5" Dial |
| Electrical | Without, [A] SPST, N.O., [B] SPST, N.C., [C] SPDT |
| Range | [0-15-W] 0-15 GPM, [0-20-W] 0-20 GPM, [0-25-W] 0-25 GPM, [0-30-W] 0-30 GPM, [0-40-W] 0-40 GPM |
| Red Arc | Without, [6] With |
| Dial Type | Standard, [F] Flanged |
| Seals | Buna-N (Std), [E] EPDM, [V] Viton |
| Flowmeter Features | |
|---|---|
| Flowmeter: Technology | Differential Pressure (DP) |
| Flowmeter: Connection Size | 1 in |
| Flowmeter: Connection Type | NPT |
| Flowmeter: Fluid Type | Liquid |
| Flowmeter: Power | 120 VAC |
